Compact Halogen-Tungsten Lamp

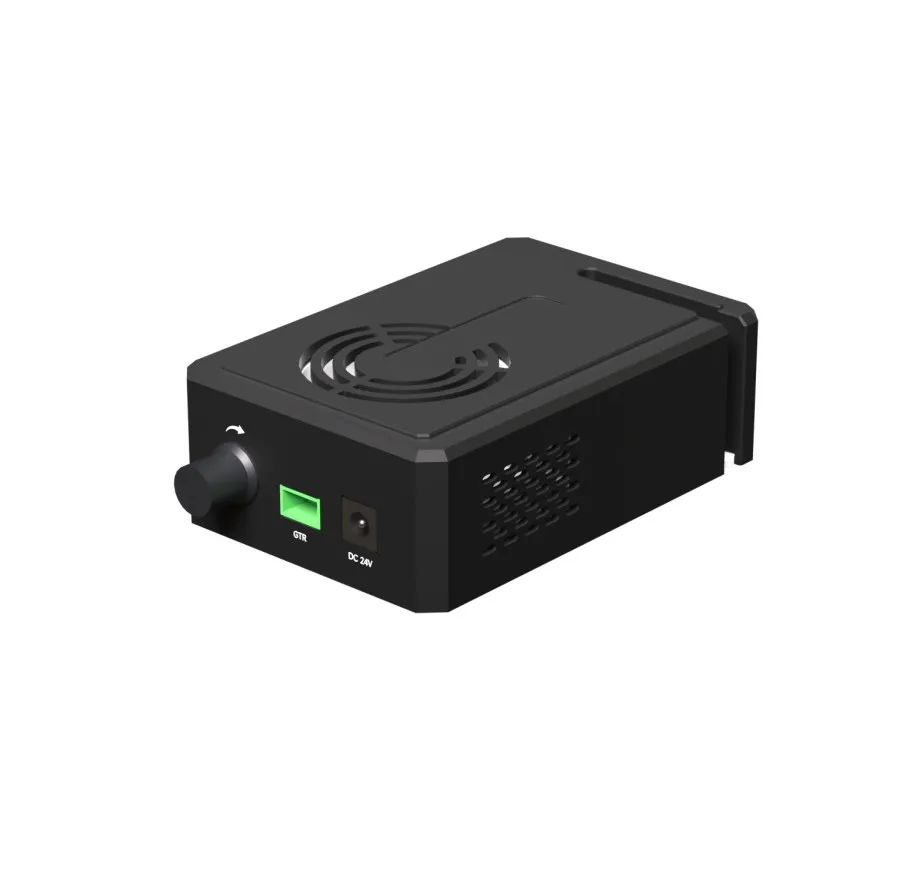

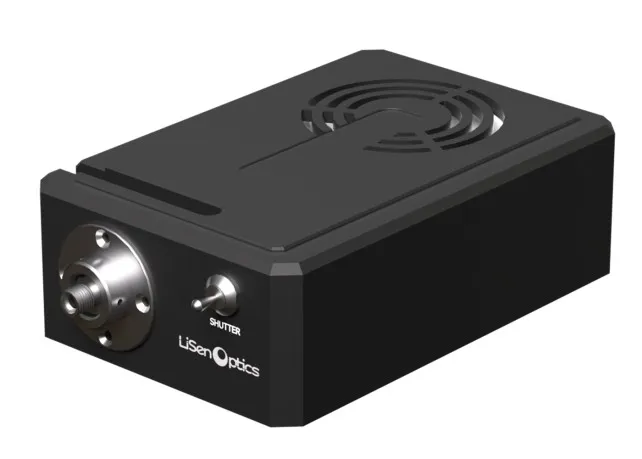

The iLight-HAL light source is a compact, miniaturized halogen tungsten fiber optic light source, spanning a wavelength range from 380 to 2500 nm, making it an ideal choice for scientific research, industrial applications, and optical experiments. The cooling method of the light source incorporates a single-channel air-cooling system and heat sink structure, ensuring that the light source operates at optimal working temperatures. The stability of the light output is remarkably high, up to 0.1%, thanks to unique circuit control. The intensity of the halogen light source is adjustable, and it supports TTL shutter control.
The iLight-HAL light source is a compact, miniaturized halogen tungsten fiber optic light source, spanning a wavelength range from 380 to 2500 nm, making it an ideal choice for scientific research, industrial applications, and optical experiments. The cooling method of the light source incorporates a single-channel air-cooling system and heat sink structure, ensuring that the light source operates at optimal working temperatures. The stability of the light output is remarkably high, up to 0.1%, thanks to unique circuit control. The intensity of the halogen light source is adjustable, and it supports TTL shutter control.
Product Introduction
This light source also features professional optical collimating and focusing lenses, which efficiently couple light into a fiber optic to enhance output intensity. Additionally, the light source is equipped with an integrated filter holder, making it highly suitable for the analysis and measurement of spectral samples with various characteristics within specific spectral ranges. This integration of advanced optical components and precise control mechanisms ensures that the iLight-HAL is a highly versatile tool in any laboratory setting.
 |
 |

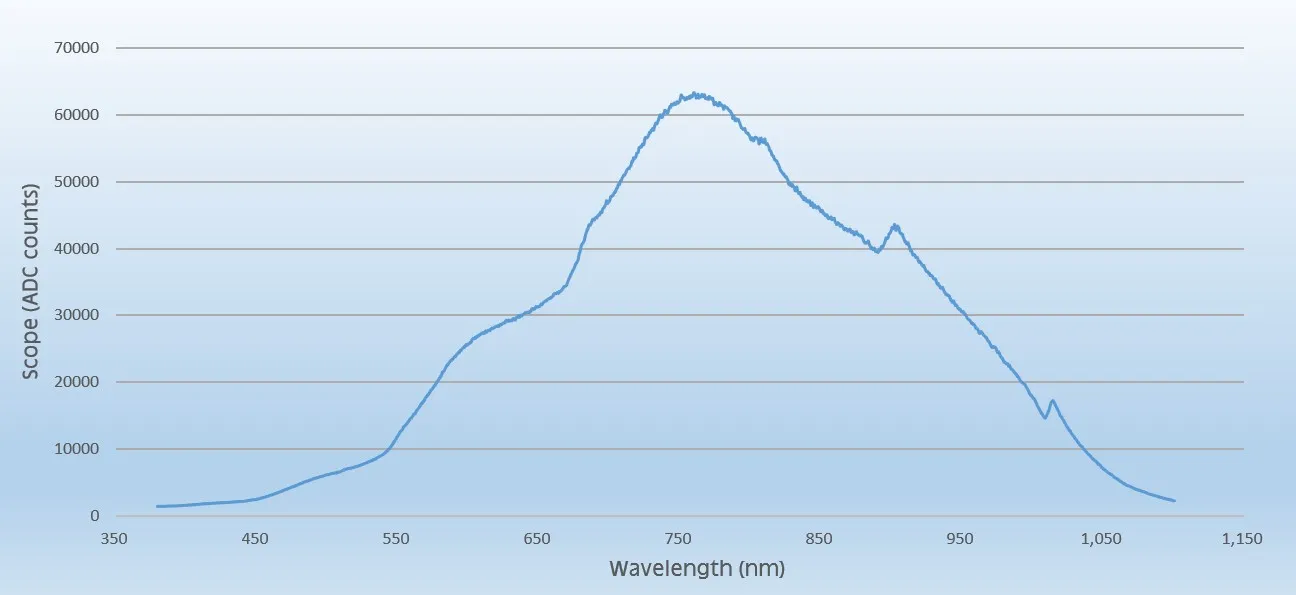

Relative Spectrum of Light Source
Typical Application
This light source also features professional optical collimating and focusing lenses, which efficiently couple light into a fiber optic to enhance output intensity. Additionally, the light source is equipped with an integrated filter holder, making it highly suitable for the analysis and measurement of spectral samples with various characteristics within specific spectral ranges. This integration of advanced optical components and precise control mechanisms ensures that the iLight-HAL is a highly versatile tool in any laboratory setting.
|
|
Relative Spectrum of Light Source
Typical Application
Main Technical Indicators
|
Model |
iLight-HAL |
|
Wavelength Range |
380-2500 nm |
|
Power Stability |
0.10% |
|
Warm-up Time |
20 minutes |
|
Fiber Optic Interface |
SMA905 |
|
Bulb Life |
4,000 hours |
|
Bulb Color Temperature |
3000K |
|
Integrated Filter Holder |
Yes |
|
Bulb Power |
10W |
|
Trigger/Shutter Input Signal |
TTL/≤3Hz |
|
IO Control Interface |
3.8mm Phoenix terminal-6P |
|
Output Light Intensity Adjustment Method |
Continuously adjustable |
|
Operating Temperature |
5°C - 45°C |
|
Power Requirements |
DC 24V / 300mA |
|
Dimensions/Weight |
80×146.3×39 mm / 0.45 kg |
Main Technical Indicators
|
Model |
iLight-HAL |
|
Wavelength Range |
380-2500 nm |
|
Power Stability |
0.10% |
|
Warm-up Time |
20 minutes |
|
Fiber Optic Interface |
SMA905 |
|
Bulb Life |
4,000 hours |
|
Bulb Color Temperature |
3000K |
|
Integrated Filter Holder |
Yes |
|
Bulb Power |
10W |
|
Trigger/Shutter Input Signal |
TTL/≤3Hz |
|
IO Control Interface |
3.8mm Phoenix terminal-6P |
|
Output Light Intensity Adjustment Method |
Continuously adjustable |
|
Operating Temperature |
5°C - 45°C |
|
Power Requirements |
DC 24V / 300mA |
|
Dimensions/Weight |
80×146.3×39 mm / 0.45 kg |
