Cuvette Holders

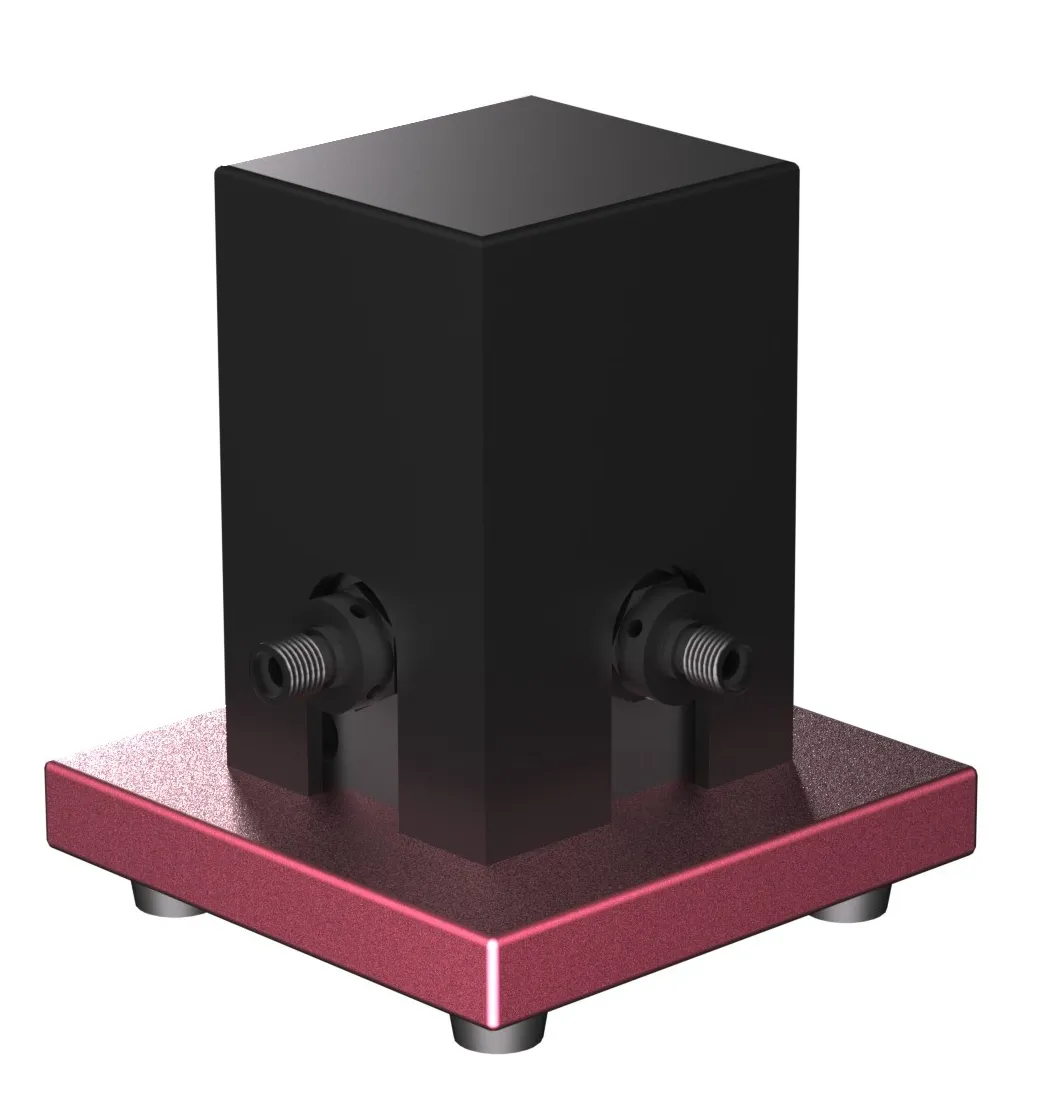

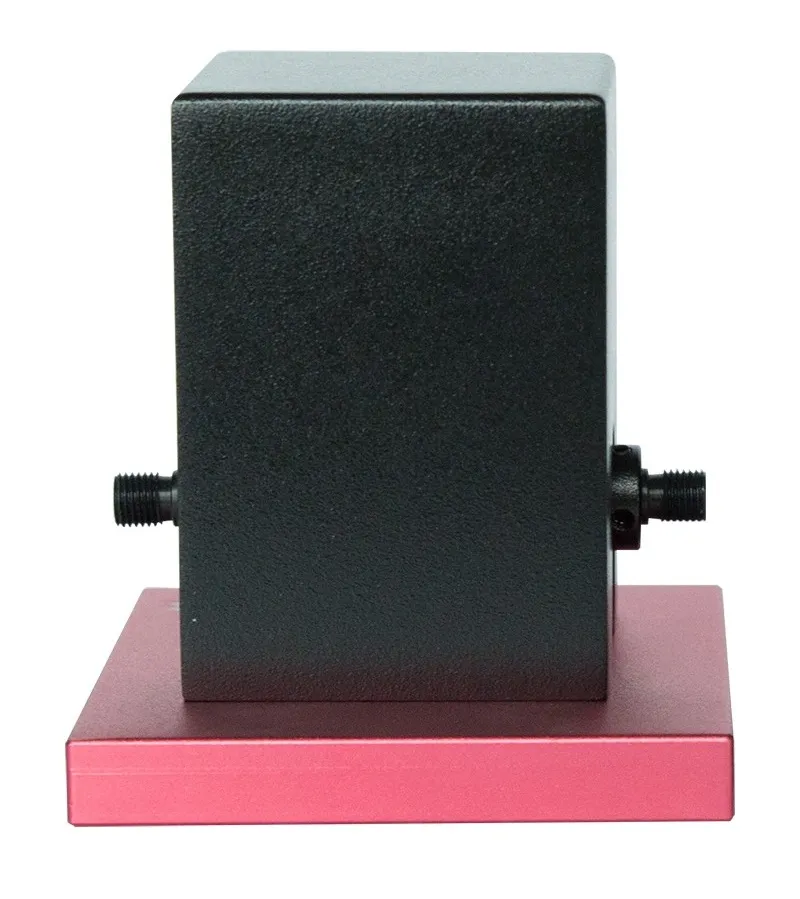

The LS-CUV cuvette holder is designed for transmission and fluorescence measurements using 10×10 mm test tubes. Its feature is an adjustable clamp that secures test tubes of various specifications in the same position. All test tube sample holders have a 5 mm wide slit for filter placement and a cover to prevent ambient light from entering the optical path.
The LS-CUV cuvette holder is designed for transmission and fluorescence measurements using 10×10 mm test tubes. Its feature is an adjustable clamp that secures test tubes of various specifications in the same position. All test tube sample holders have a 5 mm wide slit for filter placement and a cover to prevent ambient light from entering the optical path.
Product Introduction
The LS-CUV-AS comes with two adjustable focal length collimating lenses to maximize the incoming light flux. The LS-CUV-FL has two collimating lenses at a 90° angle, suitable for fluorescence measurements, and two ports equipped with aluminum-coated SiO2 mirrors (LS-CUV-EL-FL-MIRROR). The LS-CUV-FL-ALL features four collimating lenses forming two perpendicular optical paths.
Different test tubes can be ordered for different holders. For example, the CUV-10-2 test tube is compatible with the standard LS-CUV-FL cuvette holder, while the CUV-10-4 has four optical windows, making it suitable for fluorescence or dual-path measurements when used with the LS-CUV-FL or LS-CUV-FL-ALL.
The LS-CUV-AS comes with two adjustable focal length collimating lenses to maximize the incoming light flux. The LS-CUV-FL has two collimating lenses at a 90° angle, suitable for fluorescence measurements, and two ports equipped with aluminum-coated SiO2 mirrors (LS-CUV-EL-FL-MIRROR). The LS-CUV-FL-ALL features four collimating lenses forming two perpendicular optical paths.
Different test tubes can be ordered for different holders. For example, the CUV-10-2 test tube is compatible with the standard LS-CUV-FL cuvette holder, while the CUV-10-4 has four optical windows, making it suitable for fluorescence or dual-path measurements when used with the LS-CUV-FL or LS-CUV-FL-ALL.
 |
 |

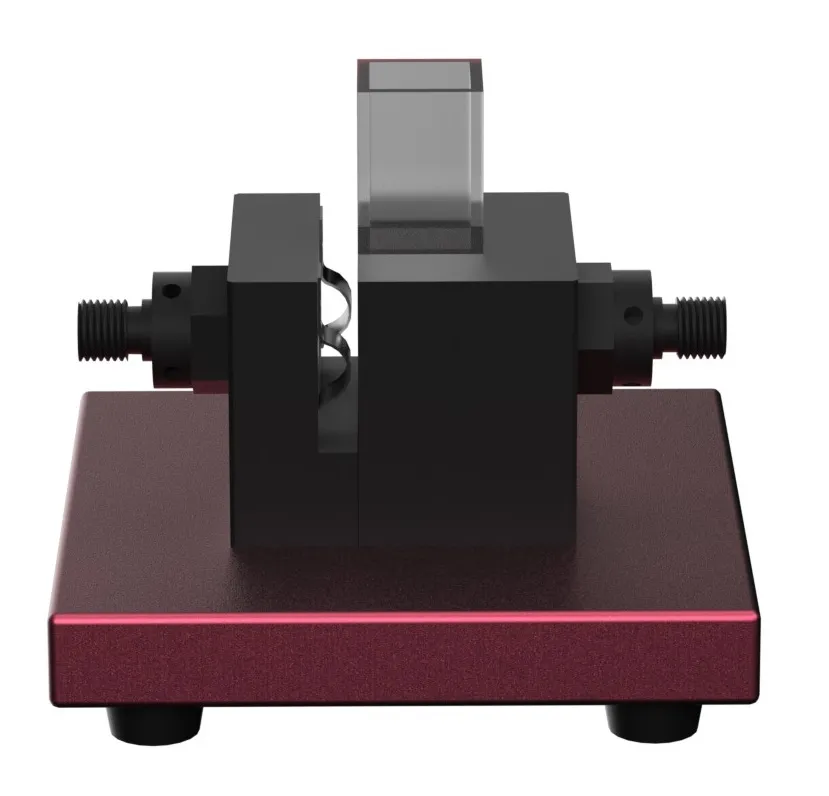

LS-CUV-AS
Transmission Spectrum Cuvette Holder
 |
 |

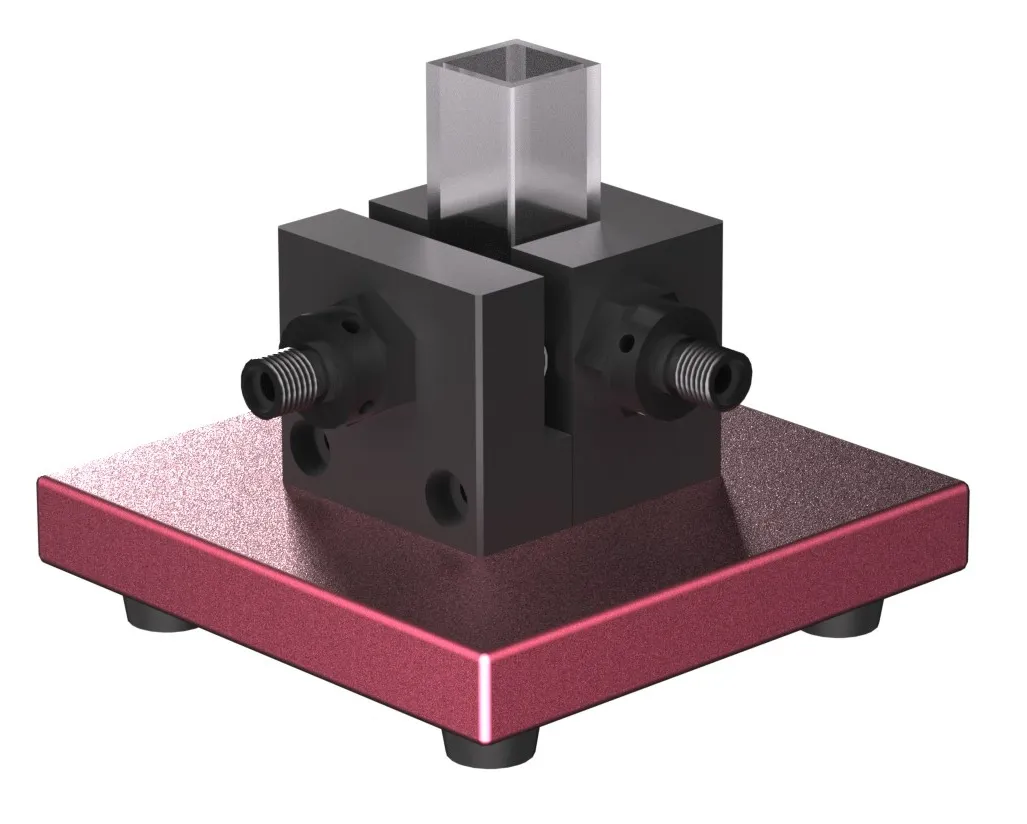

LS-CUV-FL
Fluorescence Spectrum Cuvette Holder
 |
 |
LS-CUV-FL-ALL
Dual-Path Spectrum Absorption Cuvette Holder
|
|
LS-CUV-AS
Transmission Spectrum Cuvette Holder
|
|
LS-CUV-FL
Fluorescence Spectrum Cuvette Holder
|
|
LS-CUV-FL-ALL
Dual-Path Spectrum Absorption Cuvette Holder
Main Technical Indicators
|
Model |
LS-CUV-AS |
LS-CUV-FL |
LS-CUV-FL-ALL |
|
|
Transmission Spectrum Cuvette Holder |
Fluorescence Spectrum Cuvette Holder |
Dual-Path Spectrum Absorption Cuvette Holder |
||
|
Test Tube Size |
10 × 10 mm |
|||
|
Optical Fiber Connectors |
2 × LS-CUV-EL, SMA connectors |
2 × LS-CUV-EL, SMA connectors with 2 mirrors |
4 × LS-CUV-EL, SMA connectors |
|
|
Filter Slit Width |
Up to 5 mm |
|||
|
Overall Dimensions |
100 × 60 × 40 mm |
100 × 100 × 40 mm |
||
|
Housing Material |
Black anodized aluminum with embedded black PE |
|||
|
45 × 45 × 80 mm |
||||
Main Technical Indicators
|
Model |
LS-CUV-AS |
LS-CUV-FL |
LS-CUV-FL-ALL |
|
|
Transmission Spectrum Cuvette Holder |
Fluorescence Spectrum Cuvette Holder |
Dual-Path Spectrum Absorption Cuvette Holder |
||
|
Test Tube Size |
10 × 10 mm |
|||
|
Optical Fiber Connectors |
2 × LS-CUV-EL, SMA connectors |
2 × LS-CUV-EL, SMA connectors with 2 mirrors |
4 × LS-CUV-EL, SMA connectors |
|
|
Filter Slit Width |
Up to 5 mm |
|||
|
Overall Dimensions |
100 × 60 × 40 mm |
100 × 100 × 40 mm |
||
|
Housing Material |
Black anodized aluminum with embedded black PE |
|||
|
45 × 45 × 80 mm |
||||
