Fiber Optic Probes
LiSen Optics' optical fiber probes are specifically designed for a variety of optical testing applications, including ultraviolet radiation measurement, transmission and reflection measurement, water quality and gas absorption measurement, and spectral transmission measurement. Additionally, we can customize various specialized optical fiber probes based on user requirements, such as UV-resistant fiber probes, high-temperature fiber probes, multi-channel probes, reflection probes, probe tips, and transmission absorption probes. These customizations mainly facilitate the needs of scientific research and industrial users in setting up optical experiments and integrating optical instruments.
LiSen Optics' optical fiber probes are specifically designed for a variety of optical testing applications, including ultraviolet radiation measurement, transmission and reflection measurement, water quality and gas absorption measurement, and spectral transmission measurement. Additionally, we can customize various specialized optical fiber probes based on user requirements, such as UV-resistant fiber probes, high-temperature fiber probes, multi-channel probes, reflection probes, probe tips, and transmission absorption probes. These customizations mainly facilitate the needs of scientific research and industrial users in setting up optical experiments and integrating optical instruments.
Product Introduction

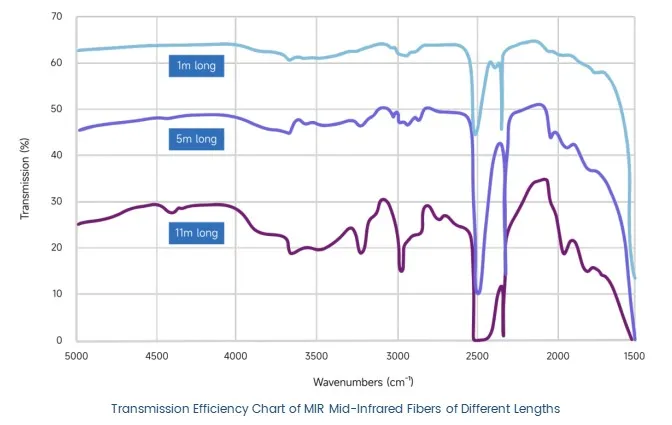

LiSen Optics' optical fiber probes utilize high-purity imported quartz fiber cores, employing multimode fibers with a numerical aperture (NA) of 0.22. We can also provide multimode fibers with other NAs, such as 0.12, 0.15, 0.26, and 0.37, according to user needs. The spectral range of our fiber optics is primarily categorized as follows: HSR (160-1100nm), DUV (190-1100nm), UV (250-1100nm), IR (350-2500nm), and UVIR (200-2500nm).
To meet the diverse application needs of our customers, LiSen Optics provides a wide variety of optical fibers. Below is an introduction to the categories of our optical fibers:
LiSen Optics' optical fiber probes utilize high-purity imported quartz fiber cores, employing multimode fibers with a numerical aperture (NA) of 0.22. We can also provide multimode fibers with other NAs, such as 0.12, 0.15, 0.26, and 0.37, according to user needs. The spectral range of our fiber optics is primarily categorized as follows: HSR (160-1100nm), DUV (190-1100nm), UV (250-1100nm), IR (350-2500nm), and UVIR (200-2500nm).
To meet the diverse application needs of our customers, LiSen Optics provides a wide variety of optical fibers. Below is an introduction to the categories of our optical fibers:
Main Technical Features
● Uniformity Stability: Better than 0.1%, traceable to NIM
● Spectral Neutrality: Exhibits excellent spectral flatness and spatial distribution characteristics
● Variety of Reflectance Specifications: Available in reflectance ranges from 2% to 99%
● High Integrity: Resistant to moisture, suitable for underwater measurements
High Temperature Resistance: Can withstand temperatures up to 200°C, applicable in harsh environments such as acidic, alkaline, and saline solutions for optical measurements
Main Technical Indicators
Technical Specifications of the Spectral Diffuse Reflectance Standard Panel Series：
|
Name |
Model |
Size |
Reflectance |
Spectral Range |
|
Standard White Panel |
LS-WS30-R |
Φ30mm |
≥98% |
250-2500nm |
|
LS-WS50-R |
Φ50mm |
≥98% |
250-2500nm |
|
|
LS-WS100-R |
Φ100mm |
≥98% |
250-2500nm |
|
|
LS-WS250-R |
250mm×280mm |
≥98% |
250-2500nm |
|
|
LS-WS400-R |
400mm×400mm |
≥98% |
250-2500nm |
|
|
LS-WS500-R |
500mm×500mm |
≥98% |
250-2500nm |
|
|
LS-WS1000-R |
1000mm×1000mm |
≥98% |
250-2500nm |
|
|
LS-WS2000-R |
2000mm×2000mm |
≥98% |
250-2500nm |
|
|
Standard Grey Panel |
LS-GS30- |
30mm×30mm |
2%/5%/10%/20% |
250-2500nm |
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS50- |
50mm×50mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS100- |
100mm×100mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS250- |
250mm×250mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS400- |
400mm×400mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS500- |
500mm×500mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
Gold-Plated Standard Panel |
LS-GD30-R |
Φ30mm |
＞95% |
2-16μm |
|
LS-GD50-R |
Φ50mm |
＞95% |
2-16μm |
|
|
LS-GD100-R |
Φ100mm |
＞95% |
2-16μm |
|
|
LS-GD250-R |
Φ250mm |
＞95% |
2-16μm |
|
|
LS-GD400-R |
Φ400mm |
＞95% |
2-16μm |
|
|
LS-GD500-R |
Φ500mm |
＞95% |
2-16μm |
|
Name |
Model |
Size |
Surface Shape |
Reflective Surface Smoothness |
|
Standard Specular Reflectance Panel |
LS-MS30-R |
Φ30mm |
λ/4@633nm |
40/20-60/40 |
|
LS-MS50-R |
Φ50mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS100-R |
Φ100mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS250-R |
250mm×250mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS400-R |
400mm×400mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS500-R |
500mm×500mm |
λ/4@633nm |
40/20-60/40 |
Main Technical Features
● Uniformity Stability: Better than 0.1%, traceable to NIM
● Spectral Neutrality: Exhibits excellent spectral flatness and spatial distribution characteristics
● Variety of Reflectance Specifications: Available in reflectance ranges from 2% to 99%
● High Integrity: Resistant to moisture, suitable for underwater measurements
High Temperature Resistance: Can withstand temperatures up to 200°C, applicable in harsh environments such as acidic, alkaline, and saline solutions for optical measurements
Main Technical Indicators
Technical Specifications of the Spectral Diffuse Reflectance Standard Panel Series：
|
Name |
Model |
Size |
Reflectance |
Spectral Range |
|
Standard White Panel |
LS-WS30-R |
Φ30mm |
≥98% |
250-2500nm |
|
LS-WS50-R |
Φ50mm |
≥98% |
250-2500nm |
|
|
LS-WS100-R |
Φ100mm |
≥98% |
250-2500nm |
|
|
LS-WS250-R |
250mm×280mm |
≥98% |
250-2500nm |
|
|
LS-WS400-R |
400mm×400mm |
≥98% |
250-2500nm |
|
|
LS-WS500-R |
500mm×500mm |
≥98% |
250-2500nm |
|
|
LS-WS1000-R |
1000mm×1000mm |
≥98% |
250-2500nm |
|
|
LS-WS2000-R |
2000mm×2000mm |
≥98% |
250-2500nm |
|
|
Standard Grey Panel |
LS-GS30- |
30mm×30mm |
2%/5%/10%/20% |
250-2500nm |
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS50- |
50mm×50mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS100- |
100mm×100mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS250- |
250mm×250mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS400- |
400mm×400mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
LS-GS500- |
500mm×500mm |
2%/5%/10%/20% |
250-2500nm |
|
|
R2/5/10/20/40/50/60 |
/40%/50%/60% |
|||
|
Gold-Plated Standard Panel |
LS-GD30-R |
Φ30mm |
＞95% |
2-16μm |
|
LS-GD50-R |
Φ50mm |
＞95% |
2-16μm |
|
|
LS-GD100-R |
Φ100mm |
＞95% |
2-16μm |
|
|
LS-GD250-R |
Φ250mm |
＞95% |
2-16μm |
|
|
LS-GD400-R |
Φ400mm |
＞95% |
2-16μm |
|
|
LS-GD500-R |
Φ500mm |
＞95% |
2-16μm |
|
Name |
Model |
Size |
Surface Shape |
Reflective Surface Smoothness |
|
Standard Specular Reflectance Panel |
LS-MS30-R |
Φ30mm |
λ/4@633nm |
40/20-60/40 |
|
LS-MS50-R |
Φ50mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS100-R |
Φ100mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS250-R |
250mm×250mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS400-R |
400mm×400mm |
λ/4@633nm |
40/20-60/40 |
|
|
LS-MS500-R |
500mm×500mm |
λ/4@633nm |
40/20-60/40 |
Simulated Target Standard Panels Series:
|
Name |
Model |
Size |
Reflectance |
Spectral Range |
|
Simulated Target Standard Panels |
LS-WR600-CAL |
600mm×600mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
|
Simulated Target Standard Panels |
LS-WR1000-CAL |
1000mm×1000mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
|
Simulated Target Standard Panels |
LS-WR1200-CAL |
1200mm×1200mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
Simulated Target Standard Panels Series:
|
Name |
Model |
Size |
Reflectance |
Spectral Range |
|
Simulated Target Standard Panels |
LS-WR600-CAL |
600mm×600mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
|
Simulated Target Standard Panels |
LS-WR1000-CAL |
1000mm×1000mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
|
Simulated Target Standard Panels |
LS-WR1200-CAL |
1200mm×1200mm |
5%、10%、20%、30%、40%、50%、60%、70% |
400-1100nm |
VCSEL Far-Field Testing Lambertian Cosine Transmission Films
LiSen Optics offers VCSEL far-field testing Lambertian cosine transmission films in various sizes and transmission rates. These films are designed to provide consistent and accurate optical properties for VCSEL far-field testing applications.
|
Name |
Model |
Size |
Transmittance |
Thickness |
|
Lambertian Cosine Transmission Films |
LS-W100 |
500mm×500mm/ Customizable |
400-1100nmT=47%-74% |
100μm |
|
Lambertian Cosine Transmission Films |
LS-W125 |
500mm×500mm/ Customizable |
400-1100nmT=35%-60% |
125μm |
|
Lambertian Cosine Transmission Films |
LS-D100 |
500mm×500mm/ Customizable |
400-1100nmT=55%-75% |
100μm |
VCSEL Far-Field Testing Lambertian Cosine Transmission Films
LiSen Optics offers VCSEL far-field testing Lambertian cosine transmission films in various sizes and transmission rates. These films are designed to provide consistent and accurate optical properties for VCSEL far-field testing applications.
|
Name |
Model |
Size |
Transmittance |
Thickness |
|
Lambertian Cosine Transmission Films |
LS-W100 |
500mm×500mm/ Customizable |
400-1100nmT=47%-74% |
100μm |
|
Lambertian Cosine Transmission Films |
LS-W125 |
500mm×500mm/ Customizable |
400-1100nmT=35%-60% |
125μm |
|
Lambertian Cosine Transmission Films |
LS-D100 |
500mm×500mm/ Customizable |
400-1100nmT=55%-75% |
100μm |
