Focus on spectral sensing and optoelectronic application systems
LED Light Sources
The iLight-LED-UVIR is a broad-spectrum LED light source that spans a wavelength range from 380 to 1100 nm, providing exceptionally stable output with a stability of up to 0.1%. This LED broad-spectrum light source utilizes high-stability LED beads that overcome the limitations of narrow spectral range typical of individual LED sources. It features low power consumption, a wide spectral range, and a long lifespan.
The iLight-LED-UVIR is a broad-spectrum LED light source that spans a wavelength range from 380 to 1100 nm, providing exceptionally stable output with a stability of up to 0.1%. This LED broad-spectrum light source utilizes high-stability LED beads that overcome the limitations of narrow spectral range typical of individual LED sources. It features low power consumption, a wide spectral range, and a long lifespan.
Product Introduction
The iLight-LED-UVIR light source offers multiple wavelength options and supports both continuous and pulse output modes. It is designed to deliver light through a fiber optic system, with the output interface being an SMA905 connector. This versatility makes the iLight-LED-UVIR ideal for a variety of applications, including those requiring precise spectral delivery over a broad wavelength range in scientific, industrial, and optical settings.
 |
 |
iLight-LED-UVIR
The iLight-LED-UVIR light source offers multiple wavelength options and supports both continuous and pulse output modes. It is designed to deliver light through a fiber optic system, with the output interface being an SMA905 connector. This versatility makes the iLight-LED-UVIR ideal for a variety of applications, including those requiring precise spectral delivery over a broad wavelength range in scientific, industrial, and optical settings.
|
|
iLight-LED-UVIR
Main Technical Indicators

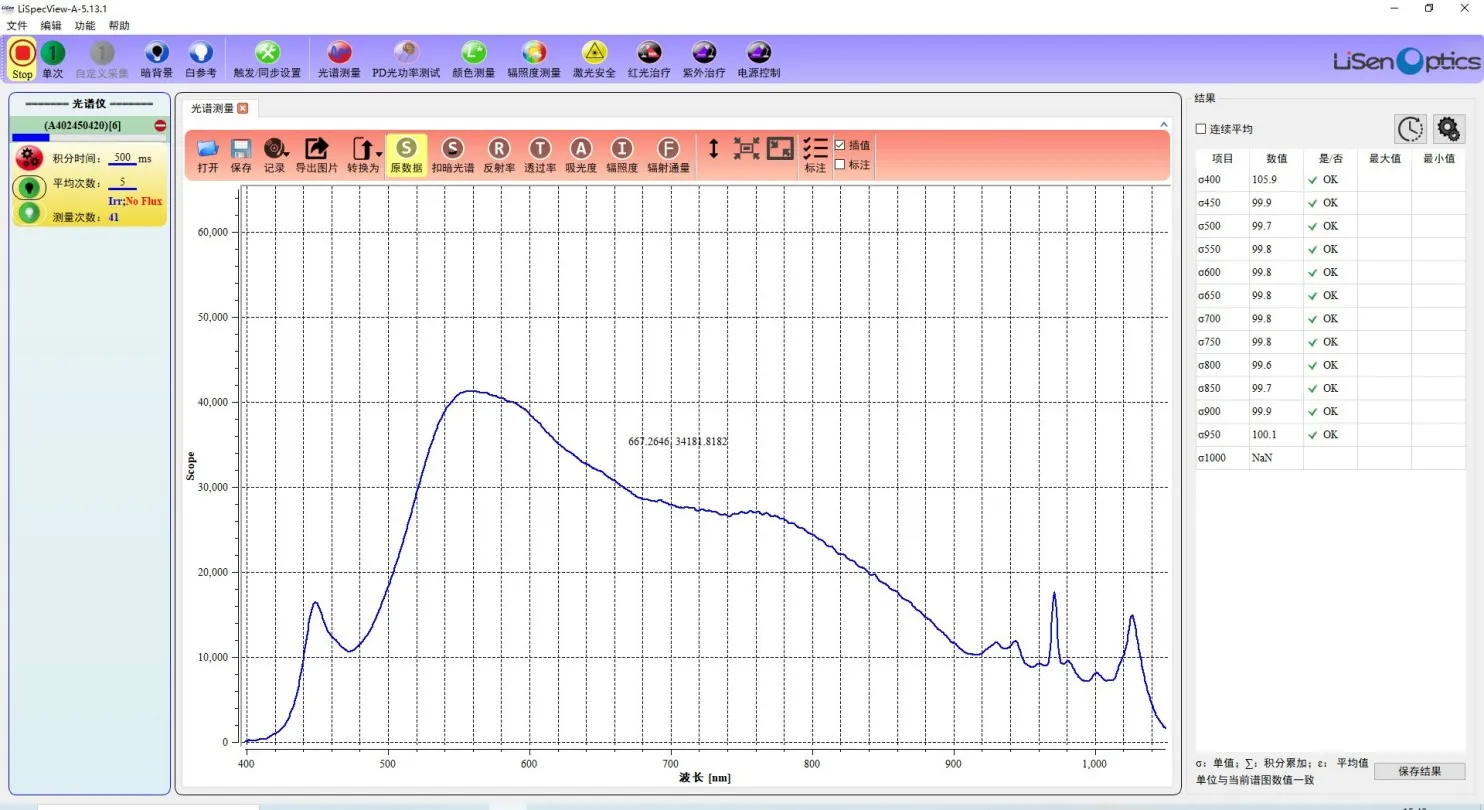

UI Screenshot
Main Technical Indicators
UI Screenshot
Main Technical Indicators
|
Model |
iLight-LED-UVIR |
|
Wavelength Range |
380-1100 nm |
|
Power Stability |
0.10% |
|
Fiber Optic Interface |
SMA905 |
|
Bulb Life |
10,000 hours |
|
Output Light Power Density |
800 W/m² (380-960nm) |
|
Bulb Power |
20W / 100W |
|
Trigger/Shutter Input Signal |
TTL / ≤3Hz |
|
IO Control Interface |
3.8mm Phoenix terminal-4P |
|
Operating Temperature |
5°C - 45°C |
|
Power Requirements |
DC 24V |
|
Dimensions/Weight |
80×149.3×41 mm / 3.3 kg |
Main Technical Indicators
|
Model |
iLight-LED-UVIR |
|
Wavelength Range |
380-1100 nm |
|
Power Stability |
0.10% |
|
Fiber Optic Interface |
SMA905 |
|
Bulb Life |
10,000 hours |
|
Output Light Power Density |
800 W/m² (380-960nm) |
|
Bulb Power |
20W / 100W |
|
Trigger/Shutter Input Signal |
TTL / ≤3Hz |
|
IO Control Interface |
3.8mm Phoenix terminal-4P |
|
Operating Temperature |
5°C - 45°C |
|
Power Requirements |
DC 24V |
|
Dimensions/Weight |
80×149.3×41 mm / 3.3 kg |
