UV Spectroradiometer (200-400nm)
Ultraviolet (UV) radiation falls within the electromagnetic spectrum between X-rays and visible light, with wavelengths ranging from 100 to 400 nm. The commonly used UV spectrum is mainly focused on 200-400 nm, categorized as UV-A (315-400 nm), UV-B (280-315 nm), UV-C (200-280 nm), and vacuum UV-D (100-200 nm). The UVA band, also known as long-wave black spot effect UV, has strong penetration, affecting the dermis layer of the skin, causing damage to elastic and collagen fibers, resulting in tanning. UV-A radiation has a relatively weak biological effect. UVB, or mid-wave red spot effect UV, has moderate penetration and can cause sunburn, inflammation, skin aging, and, in severe cases, skin cancer. UVC radiation has a strong destructive effect on microorganisms and is commonly used for UV sterilization. Due to the potential harm of UV radiation, UV spectroradiometry is becoming increasingly important.
Ultraviolet (UV) radiation falls within the electromagnetic spectrum between X-rays and visible light, with wavelengths ranging from 100 to 400 nm. The commonly used UV spectrum is mainly focused on 200-400 nm, categorized as UV-A (315-400 nm), UV-B (280-315 nm), UV-C (200-280 nm), and vacuum UV-D (100-200 nm). The UVA band, also known as long-wave black spot effect UV, has strong penetration, affecting the dermis layer of the skin, causing damage to elastic and collagen fibers, resulting in tanning. UV-A radiation has a relatively weak biological effect. UVB, or mid-wave red spot effect UV, has moderate penetration and can cause sunburn, inflammation, skin aging, and, in severe cases, skin cancer. UVC radiation has a strong destructive effect on microorganisms and is commonly used for UV sterilization. Due to the potential harm of UV radiation, UV spectroradiometry is becoming increasingly important.
Product Introduction

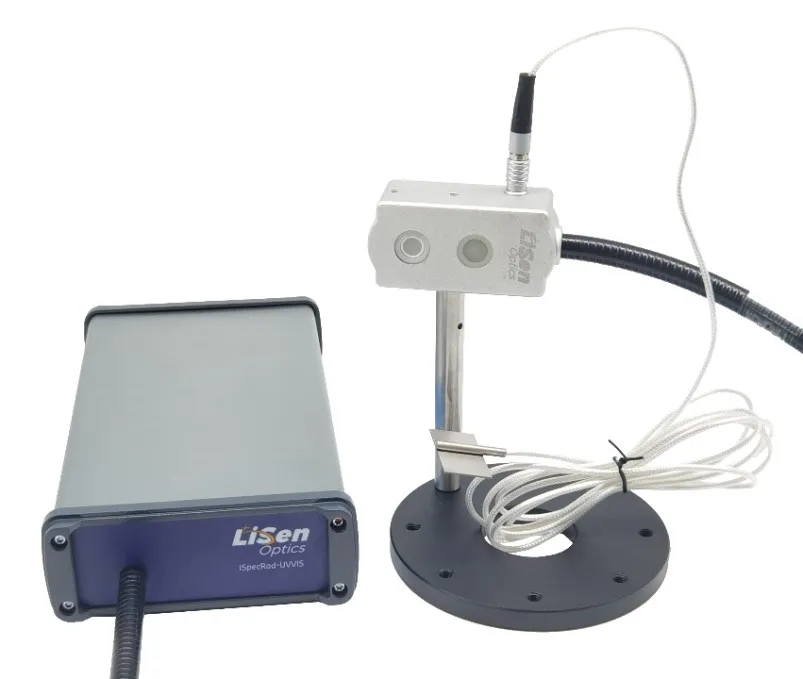

The iSpecRad UV Spectroradiometer, developed by LiSen Optics, is specifically designed for the measurement of UV radiation spectra. It utilizes the principles of spectroradiometry, providing a broader spectrum range (200-1100 nm) compared to traditional UV radiometers. It offers higher testing accuracy and a high dynamic range. This device can achieve high-precision, high-intensity UV radiation intensity measurements. Calibration for UV radiation is traceable to the National Institute of Metrology (NIM) and comes with a calibration certificate, providing accuracy better than 1%. It is widely used for UV radiation measurement in applications such as UV radiation safety leakage, UV aging test chambers, biosafety cabinets UV radiation measurement, UV sterilization, solar UV radiation, xenon lamps, mercury lamps, deuterium lamps, and UV fluorescent lamps.

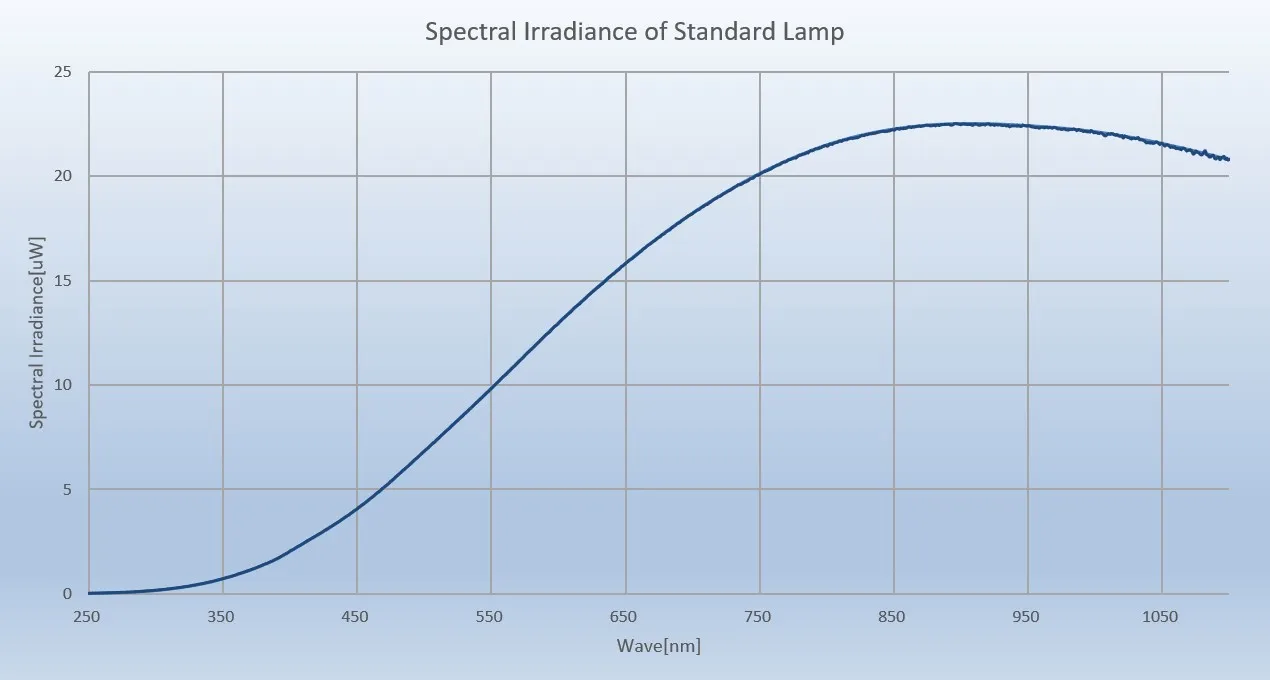

Radiation Calibration Standard Source Response Curve
The iSpecRad UV Spectroradiometer features unique optical design. Its multi-functional integral radiation probe can achieve continuous or pulsed UV light source measurements. It is equipped with an integral sphere irradiance probe, temperature and humidity sensors, and light triggers for synchronized measurements. The iSpecRad-UV200 UV Spectroradiometer complies with various national and international standards, including GBZ2.2-2007 Occupational Exposure Limits for Hazardous Factors in the Workplace UV, GBZ/T189.4-2007 Laser Radiation Measurement for Workplace Physical Factors, JJF1525-2015 Calibration Specification for Irradiance Parameters of Xenon Arc Aging Test Device, JJF1076-2001 Calibration Specification for Temperature and Humidity Sensors, JJF(纺) 051-2012, JJG062-95, GB/T8427-2008, GB/T16991-2008 standards, AATCC 16-2004 American Association of Textile Chemists and Colorists standard.

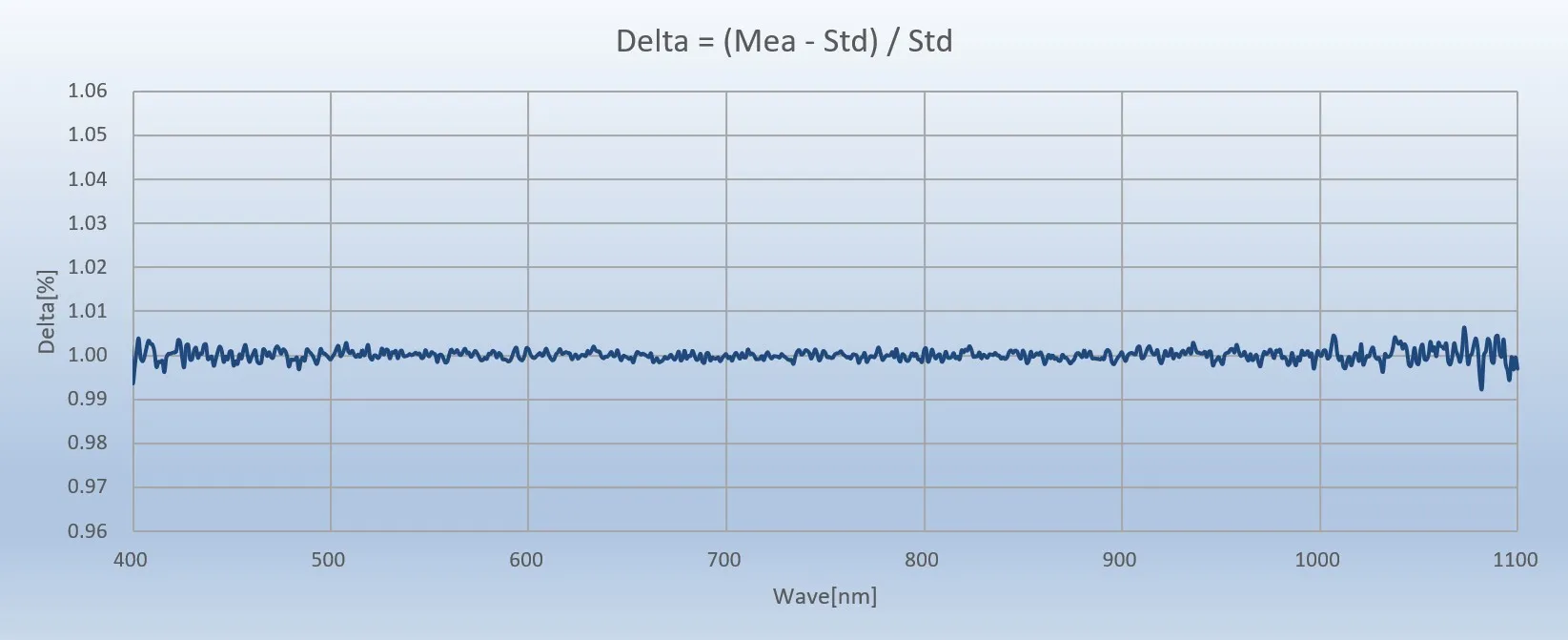

Radiation Calibration Accuracy Response Curve
Main Technical Features
● Achieves absolute spectral irradiance distribution measurement from 200-1100 nm (μW/cm2/nm)
● Shortest integration time of 0.02 ms, wide measurement dynamic range for high-power UV radiation source measurement
● Can measure single-wavelength E340, E420, etc., and users can customize single-wavelength measurements, achieving cumulative irradiance measurements such as E300-400, E300-800, and others

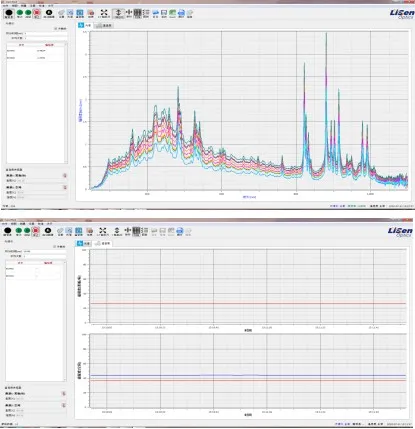

● Multi-functional integral radiation probe design for synchronized measurements of UV radiation intensity, blackboard temperature, space temperature, and humidity in UV aging chambers, real-time display of spectral irradiance, temperature, and humidity collection curves
● Can measure UV-NIR radiation parameters: irradiance measurement (W/m2), UV hazard-weighted irradiance (W/m2), integrated irradiance UV-A/UV-B/UV-C (W/m2), specified single-wavelength irradiance 254 nm/340 nm/365 nm, etc. (W/m2)
● Can measure the effective UV radiation coefficient of various UV light sources (mW/klm), lamp aging index evaluation
● Can measure Eeff radiation (mw/m2/klm @250-780 nm), ECEkuv, ECE Kred
● Can measure spectral color parameters: chromaticity (x, y) (u, v), color temperature K, color rendering index (CRI), color purity, color difference (SDCM), LED main wavelength, peak wavelength, FWHM
The iSpecRad UV Spectroradiometer, developed by LiSen Optics, is specifically designed for the measurement of UV radiation spectra. It utilizes the principles of spectroradiometry, providing a broader spectrum range (200-1100 nm) compared to traditional UV radiometers. It offers higher testing accuracy and a high dynamic range. This device can achieve high-precision, high-intensity UV radiation intensity measurements. Calibration for UV radiation is traceable to the National Institute of Metrology (NIM) and comes with a calibration certificate, providing accuracy better than 1%. It is widely used for UV radiation measurement in applications such as UV radiation safety leakage, UV aging test chambers, biosafety cabinets UV radiation measurement, UV sterilization, solar UV radiation, xenon lamps, mercury lamps, deuterium lamps, and UV fluorescent lamps.
Radiation Calibration Standard Source Response Curve
The iSpecRad UV Spectroradiometer features unique optical design. Its multi-functional integral radiation probe can achieve continuous or pulsed UV light source measurements. It is equipped with an integral sphere irradiance probe, temperature and humidity sensors, and light triggers for synchronized measurements. The iSpecRad-UV200 UV Spectroradiometer complies with various national and international standards, including GBZ2.2-2007 Occupational Exposure Limits for Hazardous Factors in the Workplace UV, GBZ/T189.4-2007 Laser Radiation Measurement for Workplace Physical Factors, JJF1525-2015 Calibration Specification for Irradiance Parameters of Xenon Arc Aging Test Device, JJF1076-2001 Calibration Specification for Temperature and Humidity Sensors, JJF(纺) 051-2012, JJG062-95, GB/T8427-2008, GB/T16991-2008 standards, AATCC 16-2004 American Association of Textile Chemists and Colorists standard.
Radiation Calibration Accuracy Response Curve
Main Technical Features
● Achieves absolute spectral irradiance distribution measurement from 200-1100 nm (μW/cm2/nm)
● Shortest integration time of 0.02 ms, wide measurement dynamic range for high-power UV radiation source measurement
● Can measure single-wavelength E340, E420, etc., and users can customize single-wavelength measurements, achieving cumulative irradiance measurements such as E300-400, E300-800, and others
● Multi-functional integral radiation probe design for synchronized measurements of UV radiation intensity, blackboard temperature, space temperature, and humidity in UV aging chambers, real-time display of spectral irradiance, temperature, and humidity collection curves
● Can measure UV-NIR radiation parameters: irradiance measurement (W/m2), UV hazard-weighted irradiance (W/m2), integrated irradiance UV-A/UV-B/UV-C (W/m2), specified single-wavelength irradiance 254 nm/340 nm/365 nm, etc. (W/m2)
● Can measure the effective UV radiation coefficient of various UV light sources (mW/klm), lamp aging index evaluation
● Can measure Eeff radiation (mw/m2/klm @250-780 nm), ECEkuv, ECE Kred
● Can measure spectral color parameters: chromaticity (x, y) (u, v), color temperature K, color rendering index (CRI), color purity, color difference (SDCM), LED main wavelength, peak wavelength, FWHM
Main Technical Indicators
|
Model |
iSpecRad-UV100 |
iSpecRad-HS1000 |
|
Spectrometer Wavelength Range |
200-1100 nm |
200-1100 nm |
|
Accuracy of Irradiance |
250-400nm≤±2% |
250-400nm≤±1% |
|
400-1100nm≤±1% |
400-1100nm≤±0.5% |
|
|
Spectral Wavelength Sampling Interval |
200-1100 @1nm |
200-1100 @1nm |
|
Spectral Wavelength Accuracy |
±0.5nm |
±0.5nm |
|
Multi-functional Probe |
Spectral irradiance/temperature/humidity/pulse light trigger |
Spectral irradiance/temperature/humidity/pulse light trigger |
|
Spectral Stability |
≤1% |
≤0.5% |
|
Spectrometer Calibration |
NIM（250-1100nm） |
NIM（250-1100nm） |
|
Cosine Radiation Probe Diameter |
8mm |
8mm |
|
Spectrometer Integration Exposure Time |
30μs-60s |
2μs-60s |
|
Spectrometer Detector |
2048-pixel line array CMOS |
2048-pixel line array CMOS |
|
AD Conversion |
16-Bit |
16-Bit |
|
Communication Interface |
USB2.0/USB3.0 |
USB2.0/USB3.0 |
|
Operating Temperature |
5-55℃ |
5-55℃ |
|
Dimensions/Weight |
212 (L) x 107 (W) x 62 (H) mm / 3 kgmm/3Kg |
212 (L) x 107 (W) x 62 (H) mm / 3 kgmm/3Kg |
Main Technical Indicators
|
Model |
iSpecRad-UV100 |
iSpecRad-HS1000 |
|
Spectrometer Wavelength Range |
200-1100 nm |
200-1100 nm |
|
Accuracy of Irradiance |
250-400nm≤±2% |
250-400nm≤±1% |
|
400-1100nm≤±1% |
400-1100nm≤±0.5% |
|
|
Spectral Wavelength Sampling Interval |
200-1100 @1nm |
200-1100 @1nm |
|
Spectral Wavelength Accuracy |
±0.5nm |
±0.5nm |
|
Multi-functional Probe |
Spectral irradiance/temperature/humidity/pulse light trigger |
Spectral irradiance/temperature/humidity/pulse light trigger |
|
Spectral Stability |
≤1% |
≤0.5% |
|
Spectrometer Calibration |
NIM（250-1100nm） |
NIM（250-1100nm） |
|
Cosine Radiation Probe Diameter |
8mm |
8mm |
|
Spectrometer Integration Exposure Time |
30μs-60s |
2μs-60s |
|
Spectrometer Detector |
2048-pixel line array CMOS |
2048-pixel line array CMOS |
|
AD Conversion |
16-Bit |
16-Bit |
|
Communication Interface |
USB2.0/USB3.0 |
USB2.0/USB3.0 |
|
Operating Temperature |
5-55℃ |
5-55℃ |
|
Dimensions/Weight |
212 (L) x 107 (W) x 62 (H) mm / 3 kgmm/3Kg |
212 (L) x 107 (W) x 62 (H) mm / 3 kgmm/3Kg |
