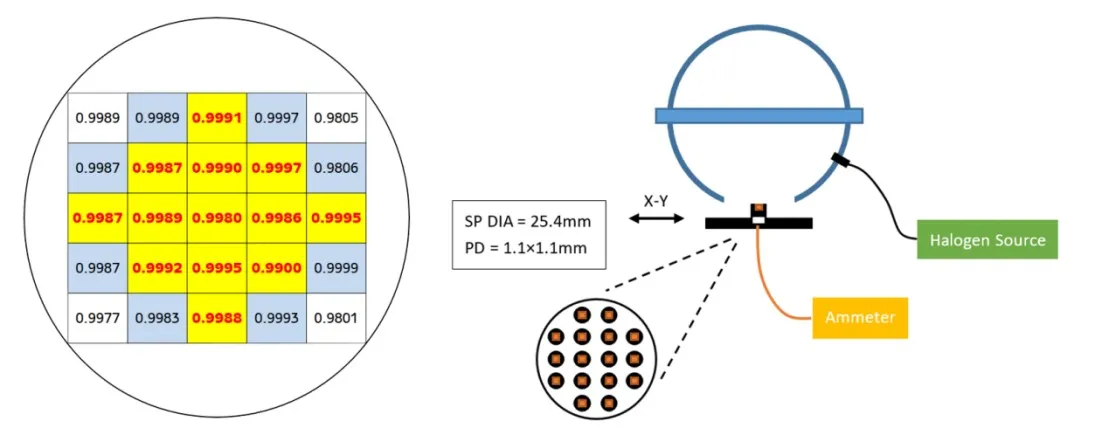

Spatial Uniformity Distribution

 Testing Principle

Name

Model

Pic.

Technical Specification

Application

Water-Cooled High-Temperature Reflective Integrating Sphere

iSphere-F3-WHT-REF

1. Spectral range: 200-2500nm 2. Inner diameter: 76mm 3. Sphere opening: 20mm 4. Incident interface: 8° mounting SMA905 collimating lens 5. Exit interface: SMA905 optical interface, 90° vertical reception 6. Material uniformity and stability: 99% 7. Function: Testing material reflectivity 8. Temperature control: Integrating sphere with water-cooling structure, matching water-cooled diaphragm 9. Water-cooled diaphragm: Custom structure matching the integrating sphere, inner surface coated with reflective material 10. Maximum temperature of test material: 800°C

/

Integrated 10° Reflective Integrating Sphere

iSphere-E1-R

1. Spectral range: 200-2500nm 2. Uniformity of light output: >99% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф12.5mm 5. Measurement port diameter: Ф4mm 6. Angle bracket 7. Incident angle: 10° (compatible with LiSen Optics collimating lens) 8. Reflective angle: 10° (compatible with iSphere-E1 integrating sphere) 9. Optical interface: One SMA905

Mainly used for 10° incident reflectivity measurements, the integrating sphere is an ultra-micro integrating sphere using a dual-sphere integrated ellipsoidal optical design. The optical path of the integrating sphere can stably and accurately achieve reflective measurements. The integrating sphere is at a 20° angle with the LiSen Optics collimating lens, very suitable for specular or diffuse 10-degree incident angle reflectivity measurements.

Custom Reflective Integrating Sphere

iSphere-S3-REF

1. Spectral range: 200-2500nm 2. Uniformity of light output: >99% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф25mm 5. Measurement port diameter: Ф6mm 6. Incident interface: 8° direction with collimating lens SMA905 interface 7. Optical interface: One SMA905

Standard reflectivity measurements, illumination light source 8° angle incident (with collimating lens), 90° direction receiving spectrometer (SMA905 interface), mainly used for material reflectivity, PL photoluminescence, and other field measurements (inner diameter 1 inch).

Custom Transmissive Integrating Sphere

iSphere-S3-TMS

1. Spectral range: 200-2500nm 2. Uniformity of light output: >99% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф25mm 5. Measurement port diameter: Ф6mm 6. Optical interface: One SMA905

Mainly used for optical transmittance measurements of optical material lenses, applicable to smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, and other spectral transmission or radiation measurements. It can also be used for reflection measurements of angled incident samples. This integrating sphere can effectively collect diffused or collimated light transmitted through the sample (inner diameter 1 inch). Also suitable for spectral radiation measurements.

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-C1-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф38mm 5. Measurement port diameter: Ф9.5mm 6. Optical interface: One SMA905 standard fiber optic interface or IS spectrometer interface or Hamamatsu HM spectrometer interface

Mainly used for optical transmittance measurements of diffuse scattering materials, suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc. Particularly suitable for IR oil film pore transmittance measurement (inner diameter 1.5 inches), also can be used for radiation measurements.

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-C2-TMS

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф44mm 5. Measurement port diameter: Ф9.5mm 6. Optical interface: One SMA905 standard fiber optic interface, one IS interface adapter

Mainly used for transmission measurement or radiation energy measurement, one path 90° direction to spectrometer (German IS spectrometer interface), one path 180° direction to fiber optic spectrometer (SMA905 interface), mainly for material transmittance measurement, PL photoluminescence, and other field measurements (inner diameter 1.5 inches).

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-C2-R2-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф44mm 5. Measurement port diameter: Ф11mm 6. Optical interface: One SMA905 standard fiber optic interface, one IS interface adapter

Mainly used for transmission measurement or radiation energy measurement, one path 90° direction to spectrometer (German IS spectrometer interface), one path 180° direction to fiber optic spectrometer (SMA905 interface), mainly for material transmittance measurement, PL photoluminescence, and other field measurements (inner diameter 1.5 inches).

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-C2-R3-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф44mm 5. Measurement port diameter: Ф11mm 6. Detector interface: One BNC standard PD interface 7. Spectrometer interface: One German IS spectrometer interface or Japanese Hamamatsu HM spectrometer interface

Mainly used for transmission measurement or radiation energy measurement, option for German IS or Japanese Hamamatsu HM spectrometer interface, 90° position with BNC standard PD interface, transmittance mainly suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc., also for LD laser power detection.

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-C5-R-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф38mm 5. Measurement port diameter: Ф9.5mm (optical arc angle) 6. Optical interface: One SMA905 standard fiber optic interface, precise alignment design of measurement port (compatible with sensor)

Mainly used for optical transmittance measurements of arc-shaped samples (with a unique light alignment design, ensuring precise sample alignment), suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc., especially suitable for IR oil film pore transmittance measurement (inner diameter 1.5 inches, measurement port arc angle design).

Transmissive Integrating Sphere/Radiation Integrating Sphere

iSphere-S2-CSM

1. Spectral range: 200-2500nm 2. Reflectivity of integrating sphere material: ≥98% 3. Uniformity of light output: Better than 0.1% 4. Inner diameter of integrating sphere: Ф25mm 5. Measurement port diameter: Ф7mm 6. Optical interface: One SMA905/FC standard fiber optic interface

Used for optical transmittance measurements of diffuse scattering materials, custom optical arc angle design for specific industrial applications, suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc., especially suitable for IR oil film pore transmittance measurement (inner diameter 1 inch).

Transmissive Integrating Sphere/Radiation Integrating Sphere with PD

iSphere-C3-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф38mm 5. Measurement port diameter: Ф9.5mm 6. Optical interface: SMA905, or SM1 thread interface (compatible with THORLAB Thorlabs SM1PDA)

Mainly used for optical transmittance measurements of diffuse scattering materials, can choose spectroscopy or be compatible with THORLAB Thorlabs SM1PDA standard detector, suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc., especially suitable for IR oil film pore transmittance measurement (inner diameter 1.5 inches, switchable optical interface), also can be used for laser power measurements.

Transmissive Integrating Sphere/Haze Integrating Sphere

iSphere-C7-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф38mm 5. Direct port diameter: Ф9.5mm 6. Oblique port diameter: Ф6mm 7. Optical interface: One SMA905 standard fiber optic interface

Mainly used for transmittance and haze measurements of diffuse scattering strong materials (using a professional 8° optical design, direct port for haze measurement, oblique port for transmittance measurement). Suitable for smartphone screens, displays, glass lenses, adhesives, inks, coated lenses, etc., for transmittance and haze measurements (inner diameter 1.5 inches).

Radiation Integrating Sphere

iSphere-A4-VC3-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: 99% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф100mm 5. Measurement port diameter: Ф7mm/custom 6. Optical interface: 3 SMA905 or FC standard fiber optic interfaces

Mainly used for VCSEL/LD/LED spectral wavelength and power energy simultaneous measurements, 4-inch inner diameter, large-angle wedge mouth optical design, special coating for optical adapters to measure wide-angle radiation energy of the entire light source, fiber optic interfaces can connect to spectrometers, detectors for specific requirement measurements.

Radiation Integrating Sphere

iSphere-B1-VC3-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: 99% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф150mm 5. Measurement port diameter: Ф25.4mm/custom 6. Optical interface: 3 SMA905 or FC standard fiber optic interfaces

Mainly for LD/LED array modules and other large divergence angle array light sources, to measure wide-angle radiation energy of the entire light source, fiber optic interfaces can connect to spectrometers, detectors for specific requirement measurements.

Radiation Integrating Sphere

iSphere-D3-CSM

1. Spectral range: 200-2500nm 2. Uniformity of light output: Better than 0.1% 3. Reflectivity of integrating sphere material: ≥98% 4. Inner diameter of integrating sphere: Ф50mm 5. Measurement port diameter: Ф12mm 6. Optical interface: 3 SMA905 fiber optic interfaces

Mainly used in the field of optical communications for simultaneous measurement of laser spectral wavelength and power. Due to the good collimation of lasers, the integrating sphere uses an optimized optical angle design to better collect laser reflection signals.

Name

Model

Pic.

Technical Specification

Miniature Dual PD Laser Power Integrating Sphere

iSphere-S1-PWR-VNIR-CSM

1. Spectral range of integrating sphere: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Integrating sphere material reflectivity: ≥98% 4. Inner diameter of integrating sphere: 25mm 5. Measurement port diameter: Ф8mm 6. Power probe spectral range: 350-1100nm/900-1700nm 7. Optical interface: One SMA905 fiber optic interface 8. Detector interface: One BNC interface 9. Traceable calibration: Factory spectral response calibration data

Small Dual PD Laser Power Integrating Sphere

iSphere-D2-PWR-VNIR-CSM

1. Spectral range: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Reflectivity: ≥98% 4. Inner diameter: 25mm 5. Measurement port diameter: Ф8mm 6. Power probe range: 350-1100nm/900-1700nm 7. Optical interface: One SMA905 8. Detector interface: One BNC 9. Traceable calibration: Factory spectral response calibration data

Small Dual PD Laser Power Integrating Sphere

iSphere-A3-PWR-VNIR-CSM

1. Spectral range: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Reflectivity: ≥98% 4. Inner diameter: 25mm 5. Measurement port diameter: Ф8mm 6. Power probe range: 350-1100nm/900-1700nm 7. Optical interface: One SMA905 8. Detector interface: One BNC 9. Traceable calibration: Factory spectral response calibration data

Large Dual PD Laser Power Integrating Sphere

iSphere-H1-PWR-VNIR-CSM

1. Spectral range: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Reflectivity: ≥98% 4. Inner diameter: 100mm 5. Measurement port diameter: ≤Ф25mm 6. Power probe range: 350-1100nm/900-1700nm 7. Optical interface: One SMA905 8. Detector interface: One BNC 9. Traceable calibration: Factory spectral response calibration data

Small Laser Power Integrating Sphere

iSphere-D3-PWR-CSM

1. Inner diameter: 50mm 2. Sampling port: 12.5mm 3. Uniformity: Better than 99% 4. Wavelength: 400-700nm 5. Power range: Max pulse power 20W 6. High-speed response: Supports 4us pulse on 1%, PD rise time best under 50~100ns, supports bias -5V 7. Divergence angle: Full angle level 10°, vertical 45° 8. Optical interface: PD power probe BNC/SMA905 spectrometer/supports TORLABS SM05PD series PD 9. Power calibration: Factory spectral power response calibration, calibration report and data (350-1100nm) at 5nm intervals, including third-party standard blue and red light wavelength power accuracy measurement certificate

Laser Power Integrating Sphere

iSphere-A3-PWR-CSM

1. Spectral range: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Reflectivity: ≥98% 4. Inner diameter: 100mm 5. Measurement port diameter: Ф25.4mm 6. Power probe range: 350-1100nm 7. Optical interface: 2 SMA905 8. Detector interface: One BNC 9. Traceable calibration: Factory spectral response calibration data

Laser Power Integrating Sphere

iSphere-B1-PWR-CSM

1. Inner diameter: 150mm 2. Sampling port: 25.4mm 3. Uniformity: Better than 99% 4. Wavelength: 800-1100nm 5. Power range: Max continuous wave (CW) power 40W 6. Divergence angle: Full angle level 8°, vertical 28° 7. Optical interface: PD power probe BNC, SMA905 spectrometer 8. Power calibration: Factory spectral power response calibration, calibration report and data (350-1100nm) at 5nm intervals, including third-party measurement unit 940nm wavelength power accuracy certificate

Laser Power Integrating Sphere

iSphere-D1-PWR-CSM

1. Spectral range: 200-2500nm 2. Light output uniformity: Better than 0.1% 3. Reflectivity: ≥98% 4. Inner diameter: 50mm 5. Measurement port diameter: Ф8mm 6. Power probe range: 350-1100nm 7. Optical interface: One SMA905 fiber optic interface 8. Detector interface: One BNC 9. Traceable calibration: Factory spectral response calibration data

Large Laser Power Integrating Sphere

iSphere-H1-PWR-CSM

1. Inner diameter: 300mm 2. Sampling port diameter: 50mm 3. Uniformity: Better than 99% 4. Reflectivity: ≥99% 5. Optical interface: 2 SMA905 standard fiber optic interfaces, 1 power probe BNC interface 6. Detector photometric strength: Read through BNC connection with matching ammeter 7. Intensity probe calibration: 350-1100nm Si detector traceable calibration at 10nm intervals, with calibration certificate and data 8. Fixed support base for integrating sphere 9. Current input range: 10pA-10A 10. AD resolution: 10pA@10uA; 10nA@10mA 11. Current accuracy: 0.0009+10.0pA 12. Sampling frequency: 1MS/s 13. Communication interface: USB2.0 14. Detector interface: Standard BNC 15. Software development environment: C/C++ 16. In-built upper computer test software

Industrial Online Laser Power Integrating Sphere

LS-VCS-J2-IND-OEM

1. Power measurement range: 200uw-100w 2. Inner diameter: 200mm 3. Sampling port: - 4. Uniformity: Better than 0.1% 5. Configuration: Includes power probe 6. Power probe spectral range: 350-1100nm Power calibration: Factory spectral power response calibration 7. Two fiber optic interfaces: One for laser, one reserved for spectrometer Power Control Host:Current input range: 1uA-1A 2. Current accuracy: ±1% 3. Sampling frequency: 200KS/s 4. Communication interface: USB2.0/Serial Port 5. I/O control interface: Trigger control

Name

Model

Pic.

Technical Specification

High Power Xenon Lamp Integrating Sphere Uniform Light Source

iSphere-ISP150-XE-CSM

Used for 250-1100nm radiance or irradiance calibration, factory spectral radiometric energy distribution calibration data, simple adjustable intensity, mainly used for UV band camera calibration, satellite remote sensing calibration measurement, radiance/irradiance calibration measurement, night vision systems, security cameras, and high sensitivity imagers, CMOS/CCD spectral response test calibration, etc. Specifications: 1. Spectral range: 200-2500nm 2. Uniformity: 99% 3. Reflectivity: ≥98% 4. Inner diameter: 150mm 5. Light exit diameter: 5*100mm 6. Light source: 150W-Xe 7. Xenon lamp spectral range: 250-1100nm 8. Power source: YES 9. Integrating sphere light source support: YES

Variable Color Temperature Triple-Channel LED Integrating Sphere Uniform Light Source

iSphere-ISP150-3LED-CCT-CSM

1. Three-channel white light LED 2. Color temperature: 3000K, 5000K, 6500K (±150K) 3. Inner diameter: 150mm 4. Opening diameter: 50mm 5. Uniformity: ≥99% 6. Adjustable output intensity: 0-10000Lux 7. Short-term stability: ±0.1%@hrs 8. Intensity monitoring probe: One BNC standard PD interface with factory traceable calibration 9. Bulb life: >15000hrs 10. Control display: Embedded touch screen software operation or upper computer 11. Software control functions: Adjustable illuminance output intensity 12. Communication interface USB2.0 13. Custom dark box including manual adjustable X, Y, Z displacement platform

Single-Channel LED Integrating Uniform Light Source

iSphere-ISP100-LED-CSM

1. Light source output wavelength: Single-channel white light LED 2. Inner diameter: 100mm 3. Light exit diameter: 30mm 4. Integrating sphere interface: One SMA905 interface 5. Light source output intensity: <5000Lux 6. Illuminance accuracy: ≤±5% 7. Intensity probe: One BNC standard PD interface with factory irradiance traceable calibration 8. Intensity adjustable steps: 255 steps 9. Uniform stability: 99% 10. Control display: Embedded touch screen software operation 11. Communication interface USB2.0

Dual-Channel LED Integrating Sphere Uniform Light Source

iSphere-ISP150-2LED-CSM

1. Light source output wavelength: 2-channel LED white light source 2. Color temperature: 5000K (±200K)/3000K (±200K) 3. Output illuminance range: <5000Lux 4. Inner diameter: 150mm 5. Sphere opening: 30mm 5. Short-term stability: ±0.1% 6. Intensity probe: One BNC standard PD interface with factory traceable calibration 7. Uniformity: ≥99% 8. Intensity adjustment steps: 255 9. Control Display: Embedded touch screen software operation/brightness output intensity adjustable 10. Communication interface USB2.0

Dual Channel with Shutter LED Integrating Sphere Uniform Light Source

iSphere-ISP150-2LED-SHT-CSM

1. Four-channel LED light source 2. Wavelengths: RGB three channels, white light 3. Color temperature: 5000K±150K 4. Inner diameter: 150mm 5. Sphere opening diameter: 50mm 6. Light exit uniformity: ≥98% 7. Adjustable output intensity: 256 levels of current adjustment 8. Short-term stability: ±0.1%@hrs 9. Bulb life: >15000hrs

Dual Channel with Shutter LED Integrating Sphere Uniform Light Source

iSphere-ISP150-2LED-SHT-CSM

1. Inner diameter: 150mm 2. Sphere opening: 50mm 3. Center uniformity: ≥99% 4. LED light source wavelength: white light LED, 470nm 5. Light source life: 10000 hours 6. Intensity probe: One BNC standard PD interface with factory traceable calibration μW/cm², including two light source calibration coefficients, with third-party measurement certificate; One SMA905 fiber optic interface 7. Output intensity: Irradiance ≤200uW/cm² at the light exit (irradiance calibration limited to ≤200uW/cm² max irradiance) 8. Adjustable intensity steps: 255 steps 9. Light source with electric shutter: Matched with THORLABS SHB1T electronic control shutter 10. Control display: Embedded touch screen 11. Communication interface USB2.0

Triple UV LED Integrating Sphere Uniform Light Source

iSphere-ISP200-3LED-UV-CSM

1. Light source output wavelength: 275nm, 365nm, 395nm 2. Inner diameter: 200mm 3. Sphere interface: One SMA905 interface, one M10 custom fiber optic interface 4. Light source output intensity: 275nm: 0-0.05mW/cm²; 365nm: 0-1mW/cm²; 395nm: 0-1mW/cm² 5. Illuminance accuracy: ≤±1% 6. Intensity probe: One BNC standard PD interface with factory 275/365/395nm irradiance traceable calibration 7. Adjustable intensity steps: 255 steps 8. Uniform stability: 99% 9. Control display: Embedded touch screen software operation 10. Communication interface USB2.0 11. Custom PD power probe interface: Custom two-channel TO46 and TO05PD power probes, BNC interface output (PD detector requires physical sending for structural accuracy) 12. Custom aperture diaphragm: Each light source output port needs an aperture diaphragm

Electronically Controlled Aperture Integrating Sphere Uniform Light Source

iSphere-ISP150-AU-CSM

1. Light source spectral range: 380-2500nm 2. Color temperature: 3000K±50K (within certain intensity range) 3. Inner diameter: 150mm 4. Sphere light exit diameter: 30mm 5. Exit uniformity: Better than 99% 6. Output light intensity range: 100Lux-20000Lux 7. Intensity accuracy: ±5% 8. Light intensity adjustment: Software-controlled light source intensity adjustment 9. Light source power stability: Better than 0.1% 10. Optical interface: One SMA fiber optic interface; One BNC interface intensity probe (sphere built-in intensity probe with traceable calibration and third-party measurement certificate) 11. Intensity electrically adjustable module: Output light intensity electrically adjustable including stepper motor, electronically controlled aperture controller, etc.

Four-Channel Collimated Monochromatic Integrating Sphere Uniform Light Source

iSphere-ISP150-4LED550-CSM

1. Inner diameter: 150mm 2. Sphere opening: 30mm 3. Light source output wavelength: 4-channel 550nm LED light source 4. Custom filter: FWHM=±10nm, OD=4 5. Output illuminance range: >50000Lux 6. Short-term stability: ±0.1% 7. Intensity probe: One BNC standard PD interface with factory traceable calibration 8. Light exit uniformity: ≥99% 9. Collimated light path module (custom): φ30mm collimated light spot output, can be directly coupled to the integrating sphere light exit 10. Rectangular light exit module (custom): Two sizes 15.48.1mm and 17.59.2mm, threaded for easy installation and removal, directly coupled with collimated light path module 11. Intensity adjustment steps: 255 12. Bulb life: ≥15000 hours 13. Control display: Embedded touch screen software operation/upper computer operation software control function: Brightness output intensity adjustable 14. Communication interface USB2.0

Four-Channel White Light LED Integrating Sphere Uniform Light Source

iSphere-ISP200-4LED-CSM

1. Four-channel LED light source 2. Wavelength: White light 3. Color temperature: 5000K±150K 4. Output intensity: ≤200000Lux 4. Inner diameter: 200mm 5. Sphere opening diameter: 50mm 6. Light exit uniformity: ≥98% 7. Adjustable output intensity: 256 levels of current adjustment 8. Short-term stability: ±0.1%@hrs 9. Bulb life: >15000hrs

Custom LED Integrating Sphere Uniform Light Source

iSphere-ISP300-WLED

1. Inner diameter: 300mm 2. Opening diameter: 100mm 3. Light source type: 4-channel LED standard light source 4. Color temperature: 2856K with relative deviation ±5% 5. Light source power stability: ≤1% 6. Brightness range: 0-20000Nit adjustable, 255 brightness adjustment steps 7. Light exit uniformity: ≥98% 8. Brightness accuracy: With third-party measurement unit certificate 9. Intensity monitoring probe: Si photodetector 10. Intensity calibration traceability: NIM 11. Calibration accuracy: ≤1% 12. Interface USB/BNC 13. Control display: Embedded touch screen software operation or upper computer 14. Software control function: Adjustable illuminance output intensity

Four-Channel UV LED Integrating Sphere Uniform Light Source

iSphere-ISP200-4LED-UV-CSM

1. Light source output wavelength: 385nm, 405nm with two channels each 2. Inner diameter: 200mm 3. Light exit diameter: 30mm 4. Sphere interface: One SMA spectrometer interface 5. Light source output intensity: 0-5000Lux 6. Illuminance accuracy: ≤±1% 7. Intensity probe: One BNC standard PD interface (350-1100nm) with third-party accuracy measurement certificate 8. Adjustable intensity steps: 256 steps 9. Uniform stability: 99% 10. Control display: Embedded touch screen software operation (no external computer needed) 11. Communication interface USB2.0

Low Light Integrating Sphere Uniform Light Source

iSphere-ISP150-HAL-UW-CSM

1. Output illuminance range: 3×10^-5 Lux to 3×10^4 Lux 2. Aperture adjustment method: Electric 3. Color temperature range: 2856K±50K (constant color temperature) 4. Source uniformity: ≥99% 5. Interface: USB 6. Light source type: Halogen lamp 7. Light exit diameter: Φ50mm

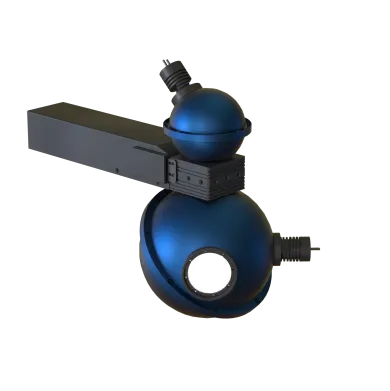

Low Light Integrating Sphere Uniform Light Source (OEM)

iSphere-ISP150-HAL-UW-OEM

1. Main sphere inner diameter: 150mm 2. Auxiliary sphere diameter: 76mm 3. Main sphere light exit diameter: 50mm 4. Light source type: Halogen for the small sphere (without power supply DC stabilizer), LED for the large sphere (without power supply) 5. Small sphere light source spectral range: 380-2500nm 6. Small sphere color temperature: 2850K±50K (within a certain intensity range) 7. Exit uniformity: Better than 99% 8. Output light intensity range: 1X10^-4 Lux to 1 Lux 9. Intensity adjustment: Small sphere with electrically controlled aperture, motor (TSM11S-1RM), software control of output intensity based on motor interface definition 10. Light source power stability: Better than 0.1% 11. Optical interface: One SMA fiber optic interface; without intensity detection probe, users calibrate the step motor output light intensity and intensity relationship themselves 12. Intensity electrically adjustable module: Output light intensity electrically adjustable includes stepper motor, electronically controlled aperture controller, etc.

Dual Halogen Lamp Integrating Sphere Uniform Light Source

iSphere-ISP150-HAL2

Halogen lamp integrating sphere uniform light source, dual-channel halogen lamp, with intensity monitoring probe, mainly used in camera calibration, satellite remote sensing calibration measurement, radiance/irradiance calibration measurement, night vision systems, security cameras, and high sensitivity imagers, CMOS/CCD spectral response measurement calibration, etc. Specifications: 1. Spectral range: 200-2500nm 2. Light exit uniformity: 99% 3. Sphere material reflectivity: ≥98% 4. Brightness range: 0-20000Cd/m2 5. Inner diameter: Ф150mm 6. Light exit diameter: 50mm 7. Light source type: Halogen 8. Color temperature: 2856K±100K 9. Halogen lamp spectral range: 350-2500nm 10. Intensity monitoring probe: Factory or traceable calibration

RGB Three-Channel LED Integrating Sphere Uniform Light Source

iSphere-ISP150-3LED-RGB-CSM

1. Inner diameter: 150mm 2. Sphere opening: 50mm 3. LED light source wavelength: 635nm, 525nm, 465nm 4. Light source half-width: 635nm@≤25nm, 525nm@≤40nm, 465nm@≤30nm 5. Light source life: 10000 hours 6. Intensity probe: One BNC standard PD interface with factory traceable calibration 7. Output intensity: Irradiance ≥30uW/cm² at 25cm from the light exit 8. Adjustable intensity steps: 255 steps 9. Central light spot uniformity: >99%@10×10mm 10. Control display: Embedded touch screen software operation

Industrial Online Integrating Sphere Uniform Light Source

iSphere-ISP150-4LED-OEM

1. Light source output wavelength: Two channels 5000K white light LED, two channels 3000K white light LED 2. Color temperature range: 5000±200K; 3000±200K 3. Sphere illuminance range: 0-2000Lx, focused demand 600-1000lx; usually set to 800lx 4. Sphere inner diameter: 150mm 5. Sphere opening diameter: 45mm 6. Light exit uniformity: ≥99% 7. Adjustment parameters: 255 8. Short-term stability: ±0.1%@hrs 9. Sphere light source exit equipped with quartz glass dust window, diameter 50mm, thickness 0.5mm 10. Each light source channel input equipped with homogenization window; diameter 12mm, thickness 1mm 11. Intensity monitoring probe: One BNC standard PD interface with factory traceable calibration 12. Bulb life: >15000hrs 13. Control display: Embedded touch screen software operation: Adjustable brightness output intensity 14. Communication interface: USB2.0, with secondary development communication protocol

Custom Integrating Sphere Uniform Light Source

iSphere-ISP150-CSM

Custom integrating sphere uniform light source, light source provided by the user, can be configured with relevant light sources, detector pairing to achieve integrating sphere uniform light source function 1. Sphere spectral range: 200-2500nm 2. Light exit uniformity: 99% 3. Sphere material reflectivity: ≥98% 4. Inner diameter: Ф150mm 5. Measurement port diameter: Ф20mm 6. Optical interface: One SMA905 fiber optic interface 7. Optical measurement port: SM05 external thread

Custom LED Integrating Sphere Uniform Light Source

iSphere-ISP250-HAL

1. Inner diameter: 250mm 2. Light exit diameter: 100mm 3. Internal coating: PTFE 4. Sphere appearance: Blue 5. Light entry port: Besides halogen lamp, reserved a removable light entry port, size to be determined 6. Light source type: Halogen light source 7. Light source spectral range: 380-2500nm 8. Color temperature: 2850K±50K (within a certain intensity range) 9. Exit uniformity: Better than 97% 10. Output light intensity range: 1Lux-40000Lux 11. Light intensity adjustment: Electric aperture 12. Light source power stability: Better than 0.1% 13. Display resolution: 1 Lux 14. Controller and integrating sphere light source wire length: 3M 15. Illuminance automatic calibration: Cannot automatically calibrate, includes a real-time illuminance monitoring module (Lux) 16. Optical interface: One SMA spectrometer interface; One BNC interface intensity probe (sphere built-in intensity monitoring probe with traceable calibration and third-party measurement certificate, intensity as illuminance value output) 17. Intensity electrically adjustable module: Output light intensity electrically adjustable includes stepper motor, electronically controlled aperture controller, etc.
