Uniform Source Integrating Sphere
The iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source combines all uniform light source calibration technologies, featuring excellent surface luminous uniformity and Lambertian properties. It can be equipped with CIE standard light sources A, B, C, D65, and others, as well as halogen, xenon, and plasma light sources. Halogen or xenon light sources can match the solar spectrum output, making it an ideal choice for various optical experiment calibrations, camera calibrations, satellite remote sensing calibration measurements, luminance/illuminance calibration measurements, CMOS/CCD spectral response testing calibrations, and other metrology units.
The iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source combines all uniform light source calibration technologies, featuring excellent surface luminous uniformity and Lambertian properties. It can be equipped with CIE standard light sources A, B, C, D65, and others, as well as halogen, xenon, and plasma light sources. Halogen or xenon light sources can match the solar spectrum output, making it an ideal choice for various optical experiment calibrations, camera calibrations, satellite remote sensing calibration measurements, luminance/illuminance calibration measurements, CMOS/CCD spectral response testing calibrations, and other metrology units.
Product Introduction
The LiSen Optics iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source primarily consists of the integrating sphere light source body, high-precision ammeter, high-precision programmable stabilized voltage source, electrically controlled iris, control software, etc. Its unique optical design ensures a light uniformity of over 99% and stability better than 0.1%. It can also be configured with a spectrometer for radiometric measurements, CIE photometry, and chromaticity measurements, and utilizes closed-loop light intensity probe monitoring and control technology. It comes factory calibrated to provide real-time monitoring output of illuminance (Lux), brightness (Cd/m^2), (μW/cm^2), and radiance (μW/sr/cm^2).

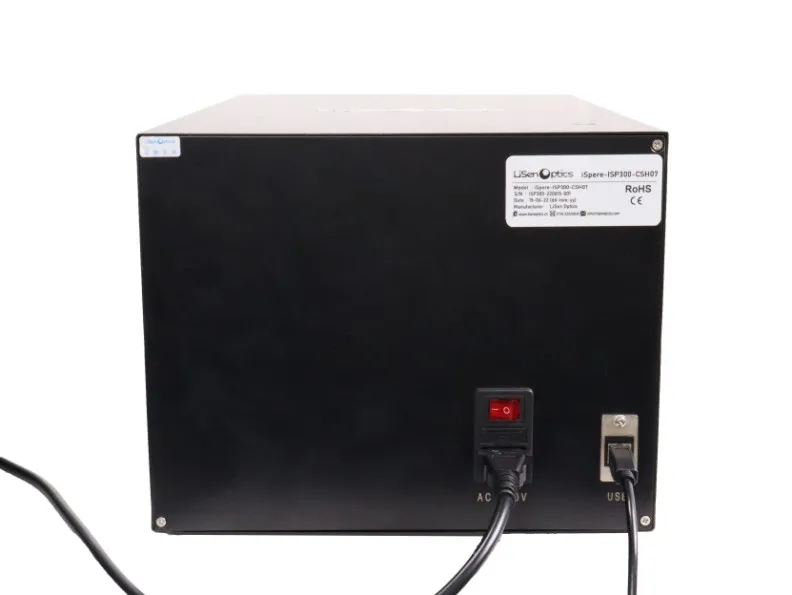

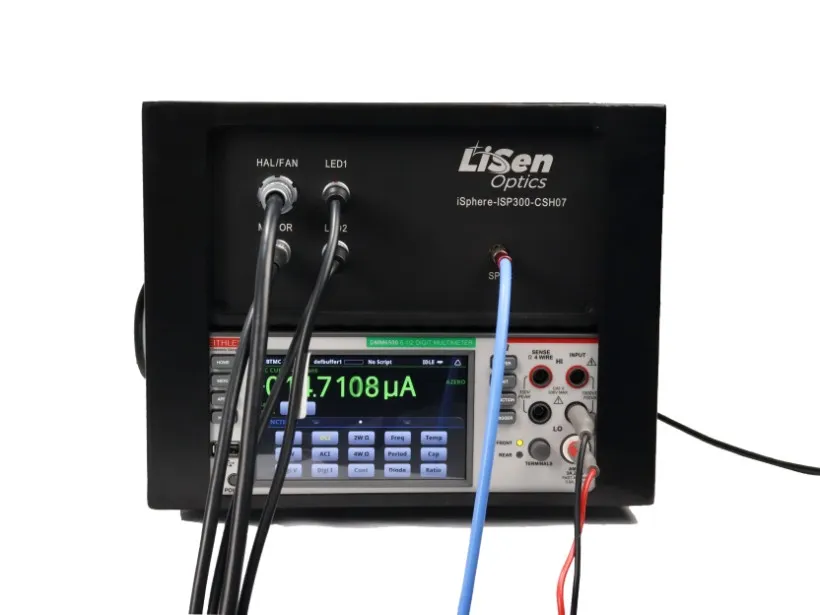

Integrating Sphere Uniform Light Source

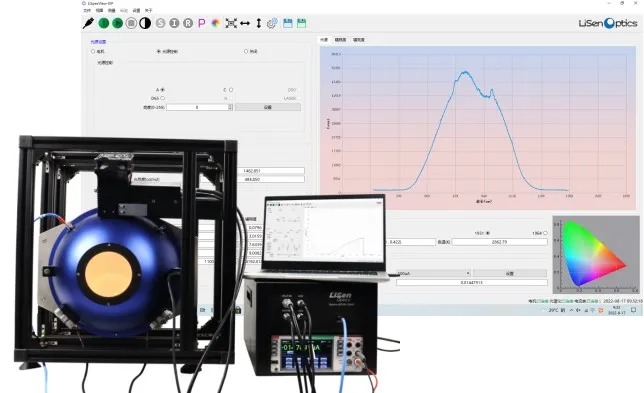

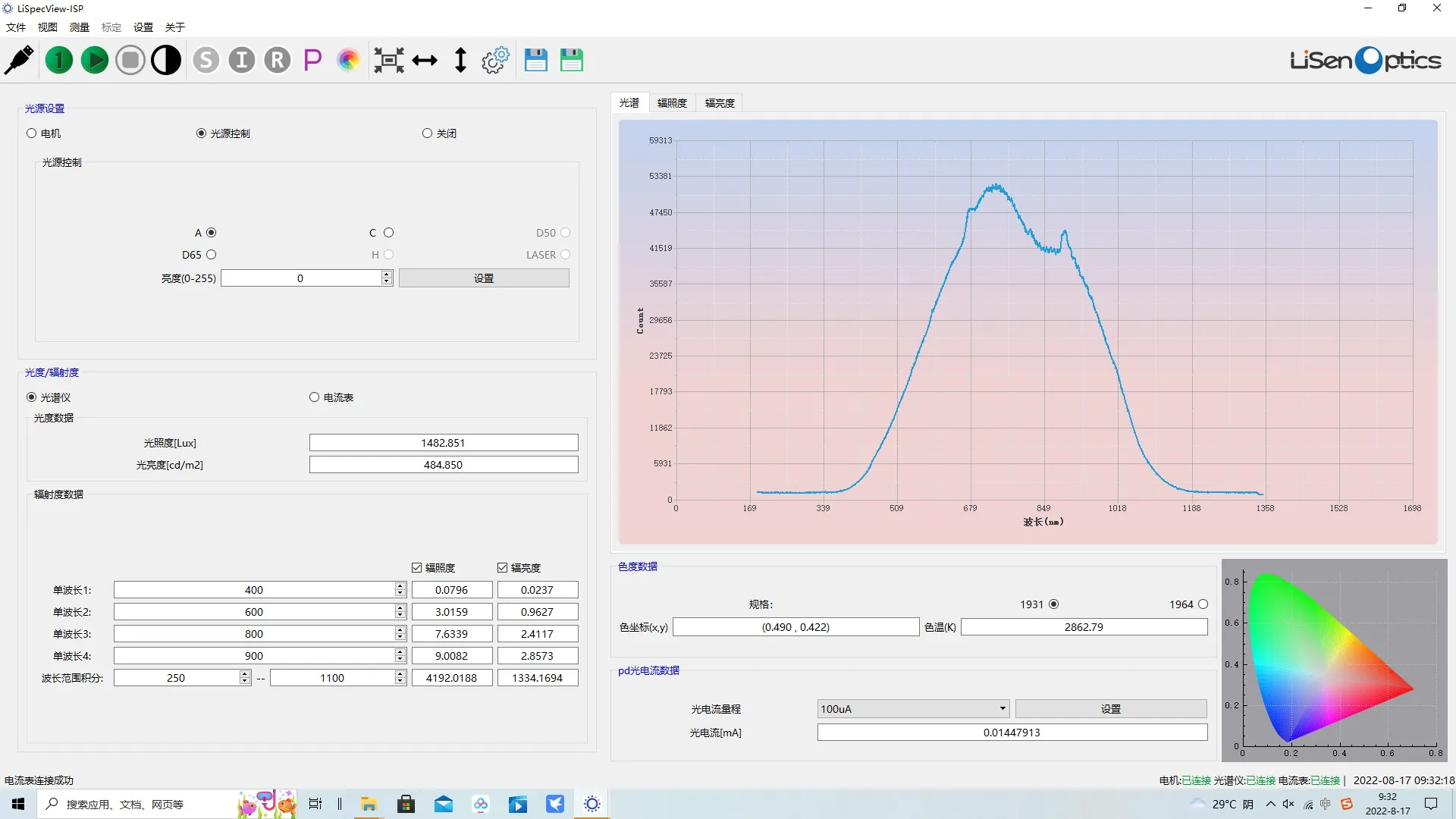

Integrating Sphere Uniform Light Source software UI

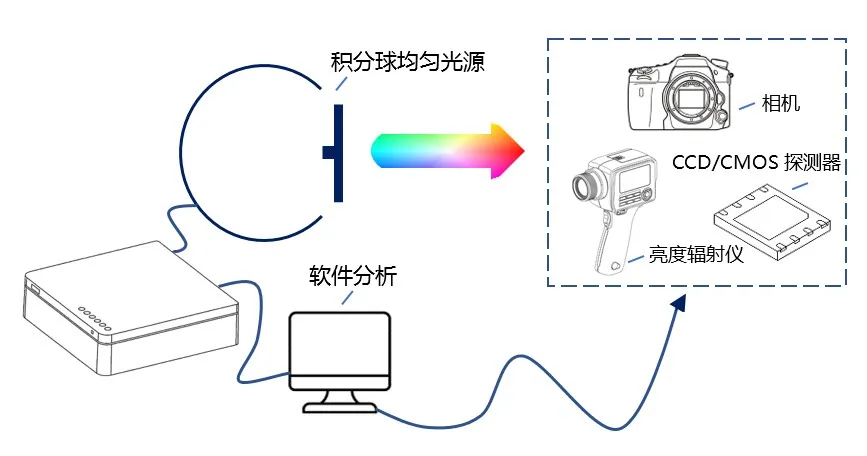

Product features and applications

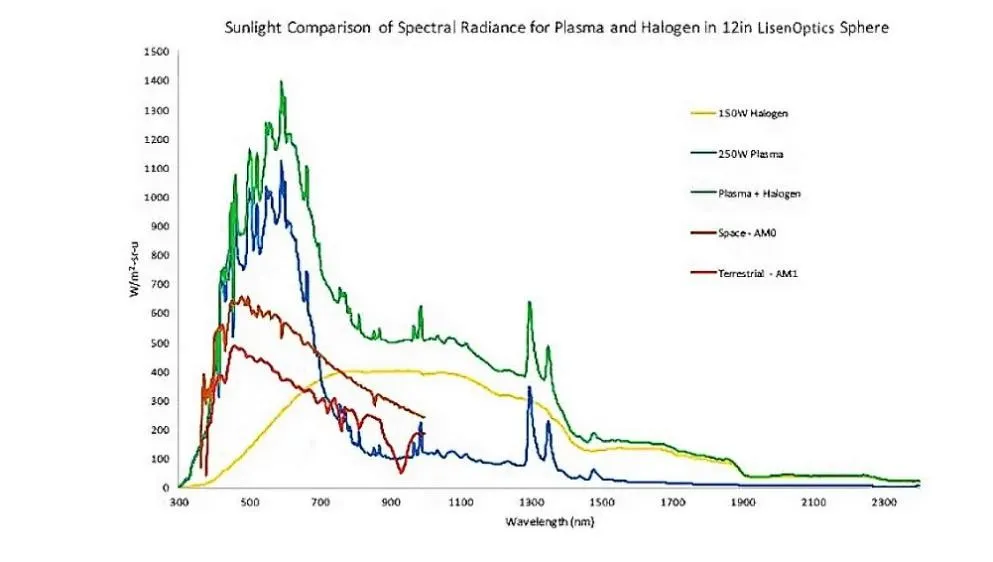

Absolute spectral distribution graphs of various light sources

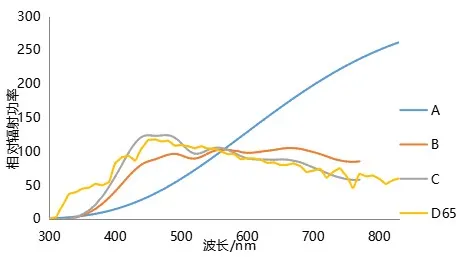

CIE standard illuminants A/B/C/D65 normalized spectral distribution graphs.
● High brightness dynamic range with light uniformity better than 99%, and stability better than 0.1%.
● High-precision programmable power supply, adjustable electrically controlled iris, and configurable light sources such as LED, laser, halogen, xenon, and CIE standard A, B, C, D65 with a CCT range of 3000-6000K.
● Real-time closed-loop monitoring of light intensity, enabling real-time monitoring of illuminance (Lux), brightness (Cd/m^2), (μW/cm^2), and radiance (μW/sr/cm^2). Factory calibration can be customized based on customer requirements.
● Configurable with a spectrometer, NIM traceability calibration, enabling radiance/irradiance measurements, and CIE photometry and chromaticity measurements.
● Widely used in flat panel display detection, camera correction, wide-field cameras, 360° panoramic camera correction, various in-vehicle cameras, infrared camera correction, imaging luminance meter/chromameter correction, and calibration of cameras and ambient light sensors in smartphones and other consumer electronics.
The LiSen Optics iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source primarily consists of the integrating sphere light source body, high-precision ammeter, high-precision programmable stabilized voltage source, electrically controlled iris, control software, etc. Its unique optical design ensures a light uniformity of over 99% and stability better than 0.1%. It can also be configured with a spectrometer for radiometric measurements, CIE photometry, and chromaticity measurements, and utilizes closed-loop light intensity probe monitoring and control technology. It comes factory calibrated to provide real-time monitoring output of illuminance (Lux), brightness (Cd/m^2), (μW/cm^2), and radiance (μW/sr/cm^2).
Integrating Sphere Uniform Light Source
Integrating Sphere Uniform Light Source software UI
Product features and applications
Absolute spectral distribution graphs of various light sources
CIE standard illuminants A/B/C/D65 normalized spectral distribution graphs.
● High brightness dynamic range with light uniformity better than 99%, and stability better than 0.1%.
● High-precision programmable power supply, adjustable electrically controlled iris, and configurable light sources such as LED, laser, halogen, xenon, and CIE standard A, B, C, D65 with a CCT range of 3000-6000K.
● Real-time closed-loop monitoring of light intensity, enabling real-time monitoring of illuminance (Lux), brightness (Cd/m^2), (μW/cm^2), and radiance (μW/sr/cm^2). Factory calibration can be customized based on customer requirements.
● Configurable with a spectrometer, NIM traceability calibration, enabling radiance/irradiance measurements, and CIE photometry and chromaticity measurements.
● Widely used in flat panel display detection, camera correction, wide-field cameras, 360° panoramic camera correction, various in-vehicle cameras, infrared camera correction, imaging luminance meter/chromameter correction, and calibration of cameras and ambient light sensors in smartphones and other consumer electronics.
Spatial uniformity
|
Distribution of spatial uniformity |
Principle of uniformity testing |
Spatial uniformity
|
Distribution of spatial uniformity |
Principle of uniformity testing |
Main Technical Indicators
|
Model |
iSphere-ISP300-HAL-CSM |
|
Integrating sphere diameter |
300mm (other diameters available) |
|
Light exit size |
≤100mm (customizable exit diameter reducers available) |
|
Integrating sphere material |
≥98% |
|
Light exit uniformity |
≥99% (central area) |
|
Light source types |
Xenon, halogen, fluorescent, standard A/B/C/D65 sources |
|
Brightness range |
Up to 20,000 cd/m^2 (maximum) |
|
Light intensity adjustment |
Electrically controlled iris/manual iris (optional) |
|
CCT range |
3000-6000K customizable |
|
CCT uniformity |
±50K |
|
Stability (30 min) |
<0.1% |
|
Light intensity monitoring |
Yes |
|
Spectrometer |
Optional |
Main Technical Indicators
|
Model |
iSphere-ISP300-HAL-CSM |
|
Integrating sphere diameter |
300mm (other diameters available) |
|
Light exit size |
≤100mm (customizable exit diameter reducers available) |
|
Integrating sphere material |
≥98% |
|
Light exit uniformity |
≥99% (central area) |
|
Light source types |
Xenon, halogen, fluorescent, standard A/B/C/D65 sources |
|
Brightness range |
Up to 20,000 cd/m^2 (maximum) |
|
Light intensity adjustment |
Electrically controlled iris/manual iris (optional) |
|
CCT range |
3000-6000K customizable |
|
CCT uniformity |
±50K |
|
Stability (30 min) |
<0.1% |
|
Light intensity monitoring |
Yes |
|
Spectrometer |
Optional |

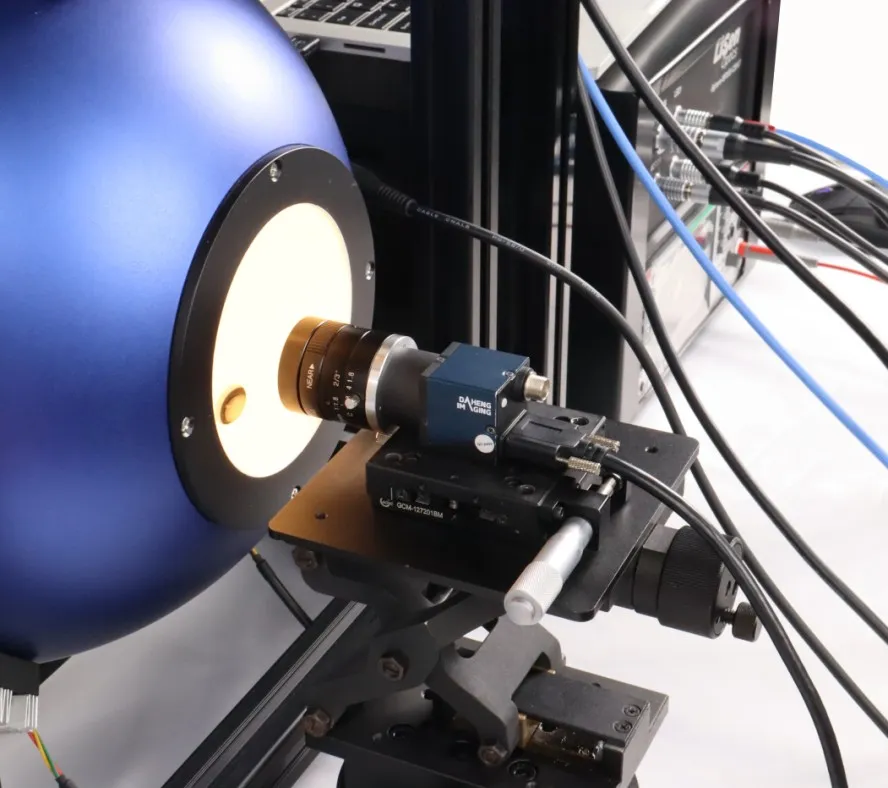

Example diagram of iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source
 |
 |

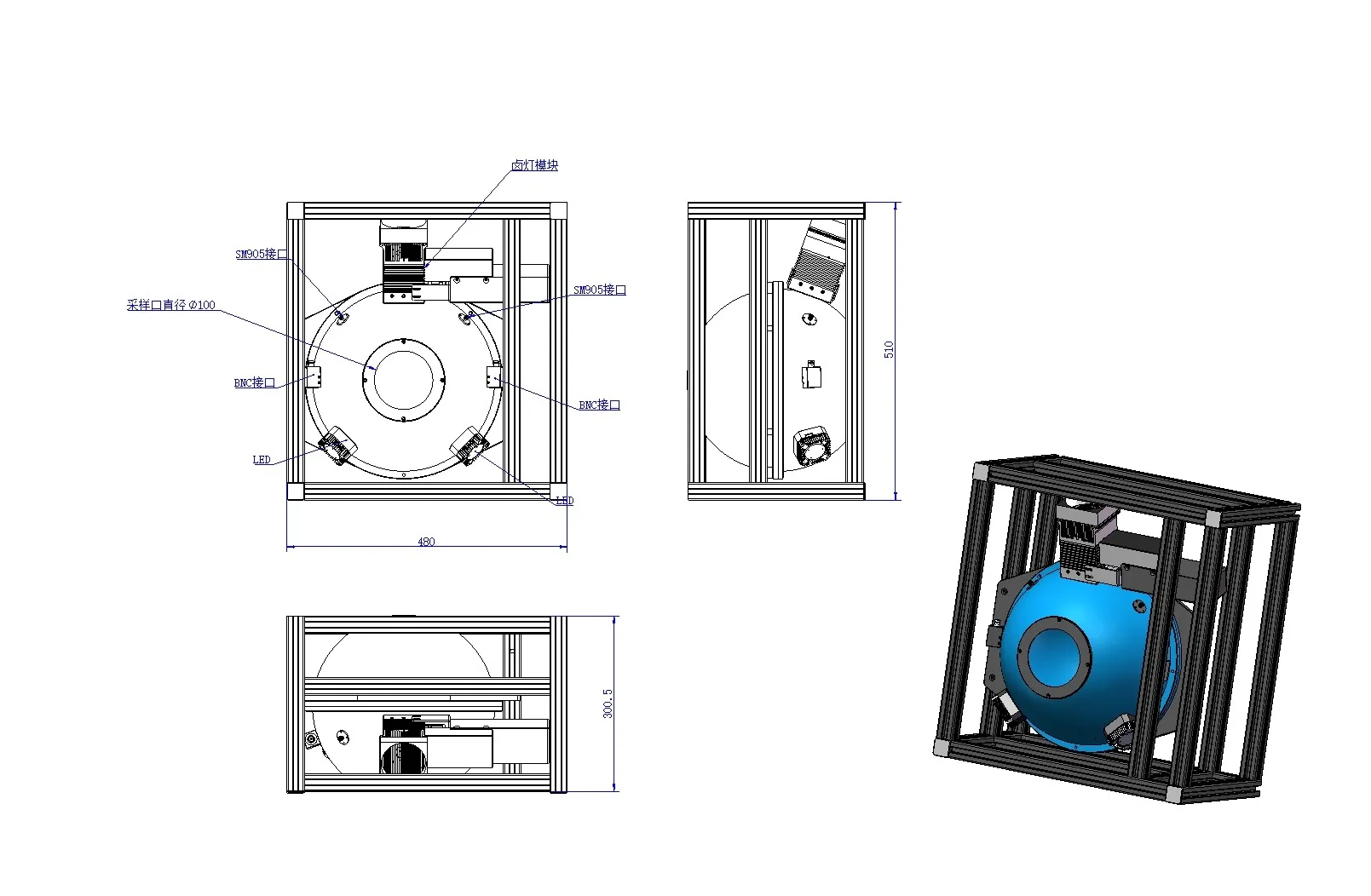

iSphere-ISP300-HAL-CSM Dimension(Unit/mm)
Example diagram of iSphere-ISP300-HAL-CSM Integrating Sphere Uniform Light Source
|
|
iSphere-ISP300-HAL-CSM Dimension(Unit/mm)
