General-Purpose Standard Integrating Sphere

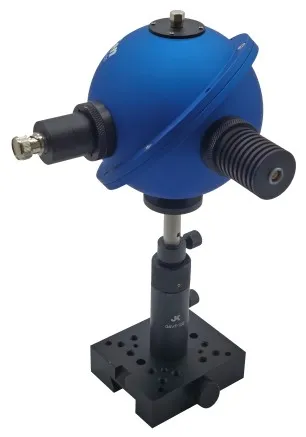

The iSphere-LPS series belongs to the standard integrating sphere of LiSen Optics. Users can choose the size of the integrating sphere and the size of the aperture according to their needs. Simultaneously, the LPS standard integrating sphere can be configured with a variety of optical accessories: light source, PD detector, filter, shrinkage hole, optical fiber interface, collimating lens, etc，which can satisfy the application of spectral radiation calibration, luminous flux calibration, transmission reflection and other optical applications.

The iSphere-LPS series belongs to the standard integrating sphere of LiSen Optics. Users can choose the size of the integrating sphere and the size of the aperture according to their needs. Simultaneously, the LPS standard integrating sphere can be configured with a variety of optical accessories: light source, PD detector, filter, shrinkage hole, optical fiber interface, collimating lens, etc，which can satisfy the application of spectral radiation calibration, luminous flux calibration, transmission reflection and other optical applications.

Product Introduction

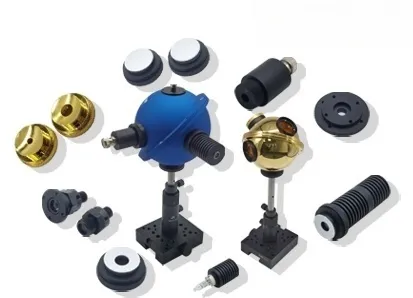

Integrating spheres and accessories


Technical Advantages and Features

● Flexibility

LiSen Optics' iSphere-LPS standard integrating sphere is more flexible than other integrating spheres, while, users can freely choose the size of the integrating sphere, the opening port and the diffuse reflection coating which reaches up to 98%. Optical components like light source, PD detector, filter, shrinkage device, optical fiber interface, collimating lens group can be configured to satisfy various optical measurement applications.

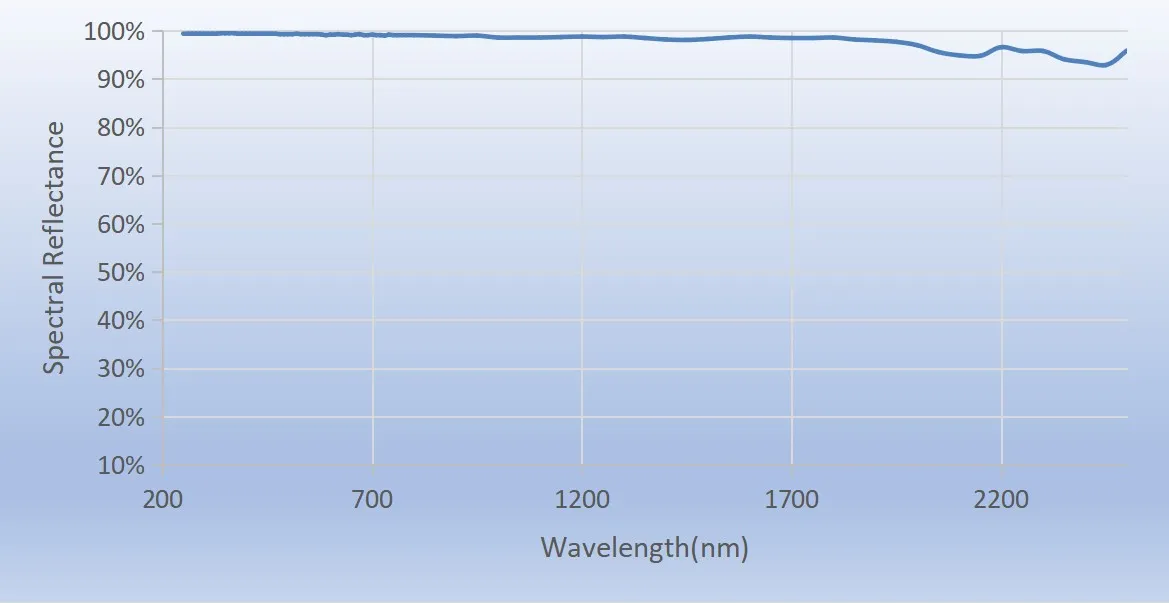

Reflectance spectrogram of integrating sphere

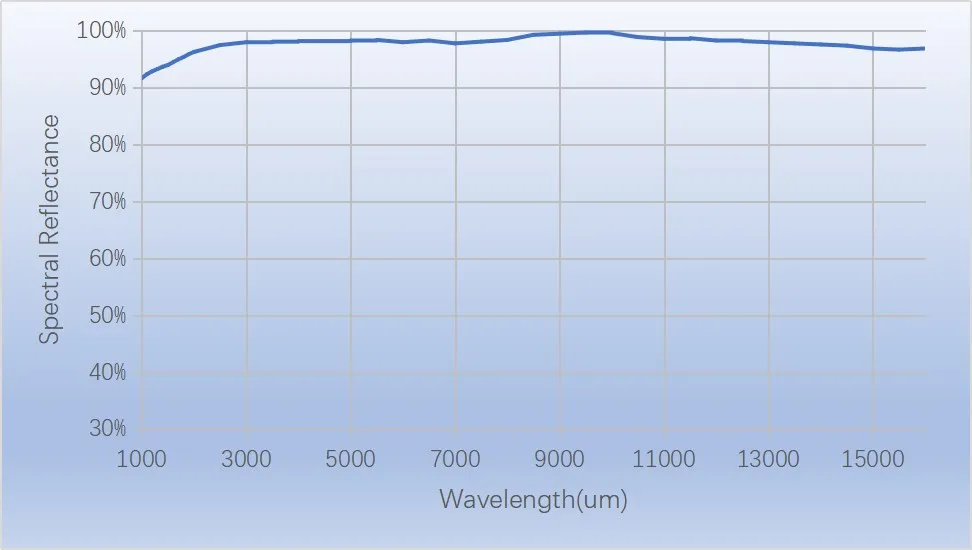

Reflectance spectrogram of gold-plated integrating sphere



● User-Friendliness

LiSen Optics Integrating spheres and optical accessories can easily satisfy the customized needs of users. The iSphere-LPS standard integrating ball features a perfect opening port structure allowing quick installation and replacement of accessories，etc, which can satisfy the different application requirements of users.




Integrating spheres and accessories


Technical Advantages and Features

● Flexibility

LiSen Optics' iSphere-LPS standard integrating sphere is more flexible than other integrating spheres, while, users can freely choose the size of the integrating sphere, the opening port and the diffuse reflection coating which reaches up to 98%. Optical components like light source, PD detector, filter, shrinkage device, optical fiber interface, collimating lens group can be configured to satisfy various optical measurement applications.

Reflectance spectrogram of integrating sphere

Reflectance spectrogram of gold-plated integrating sphere



● User-Friendliness

LiSen Optics Integrating spheres and optical accessories can easily satisfy the customized needs of users. The iSphere-LPS standard integrating ball features a perfect opening port structure allowing quick installation and replacement of accessories，etc, which can satisfy the different application requirements of users.



Main Technical Indicators

Model

iSphere-LPS

Integrating Sphere Inside Diameter

2-6 inches

Diffuse Reflective Material

≥98%

Numbers of Ports

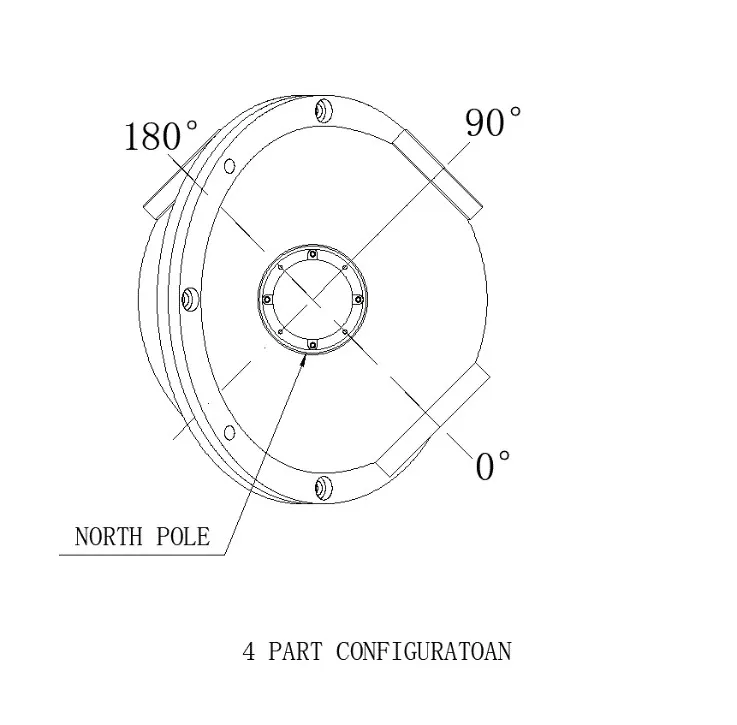

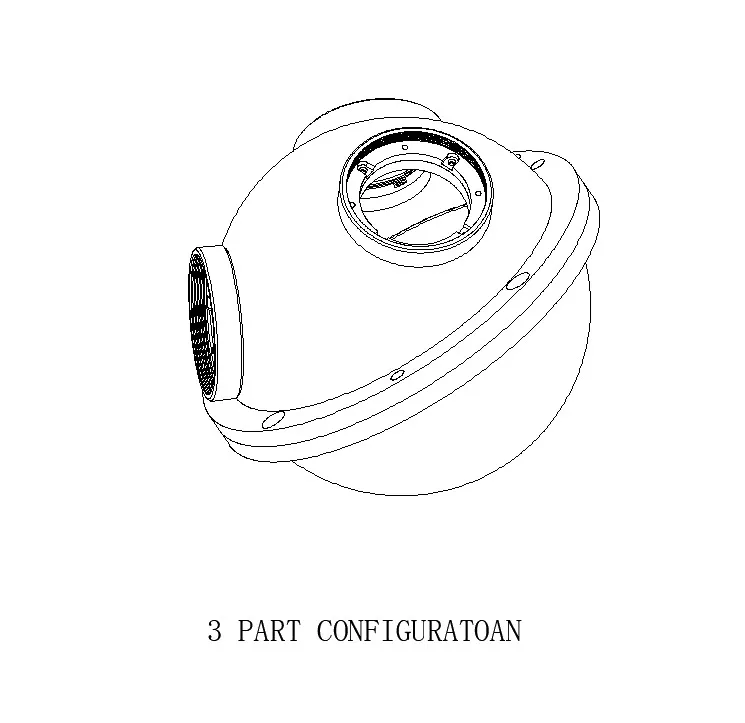

Three ports: there are two ports at the equator of integrating sphere at 0° and 90°, with additional port at the top

Four ports：the additional opening is located opposite the 0° opening

Light Barrier

The baffle is located between the 0° and 90° ports

Light Source and Detector

(Optional)

Internal halogen lamp : 5 - 30 W

External halogen lamp : 10-150W

Detector: Silicon detector, germanium detector, indium gallium arsenic, MCT mid-infrared detector

Other Accessories

(Optional)

Aperture reducer , Optical fiber adapter , Optical filter, filter adapter, cosine diffuser assembly,  Collimator lens assembly,  Mounting bracket and base assembly,  Aperture adapter

Calibration

Total spectral flux calibration, radiation calibration, exit uniformity



Main Technical Indicators

Model

iSphere-LPS

Integrating Sphere Inside Diameter

2-6 inches

Diffuse Reflective Material

≥98%

Numbers of Ports

Three ports: there are two ports at the equator of integrating sphere at 0° and 90°, with additional port at the top

Four ports：the additional opening is located opposite the 0° opening

Light Barrier

The baffle is located between the 0° and 90° ports

Light Source and Detector

(Optional)

Internal halogen lamp : 5 - 30 W

External halogen lamp : 10-150W

Detector: Silicon detector, germanium detector, indium gallium arsenic, MCT mid-infrared detector

Other Accessories

(Optional)

Aperture reducer , Optical fiber adapter , Optical filter, filter adapter, cosine diffuser assembly,  Collimator lens assembly,  Mounting bracket and base assembly,  Aperture adapter

Calibration

Total spectral flux calibration, radiation calibration, exit uniformity



Typical Application

● Chroma and luminance measurement

● Light source radiation measurement

● Laser power measurement

● Transmission and reflection measurement

● Material fluorescence analysis

● Photoinduced/electroluminescent quantum efficiency



Integrating Sphere and Accessories (The following accessories can be equipped with all Integrating sphere)

Integrating sphere
iSphere-LPSXX-Y
(XX represents the diameter；Y represents the munber of ports）
● Spectral-range: 200-2500nm
● Reflectivity≥98%
● Size：2-8 inches，3/4 ports

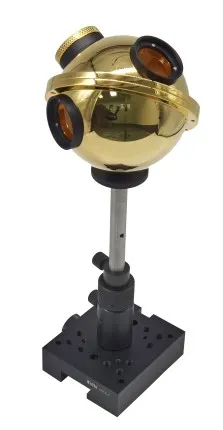

Gold-plated Integrating sphere
iSphere-LPSXX-GD-Y
(XX represents diameter；
Y represents the munber of ports）
● Spectral-range ：1-16μm
● Reflectivity≥96%
● Size：2-8 Inches，4 ports

Port Reducer
LPS-PSK-XX(XX represents optional diameter）
● Directly coupled integrating sphere sampling port
● Step-free shrink diameter is 10mm or 25mm by default, other shrink diameter can
be selected according to user requirements internal diffuse PTFE

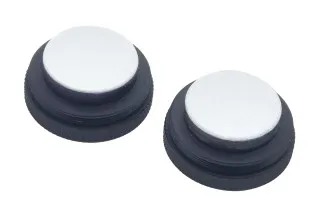

Plugger
LPS-PDK-1
● port plug
● 1-inch-integrating sphere plug
● internal diffuse PTFE

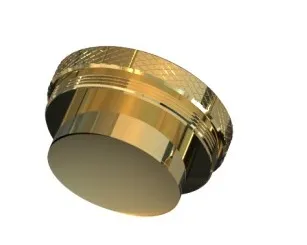

Gold-plated plugger
LPS-GDK-1
● port plug
● 1-inch-integrating sphere plug
● internal diffuse gold plating

Collimating lens
LPS-FOL
● can be directly coupled integrating sphere collimation lens
● focal length 8.7mm, interface standard SMA905







Integrating sphere detector
LPS-PWR-XX
(XX represents optional)
● Si/InGaAs/ MCT
● BNC Output interface

External halogen light source
LPS-HAL-BXX
(XX represents power）
● integrating sphere external halogen light source, power output 5-30W
● The default standard configuration is 5W

Built-in halogen light source
LPS-HAL-AXX
(XX represents power）
● Integrating sphere Built-in halogen light source, power output 5-30W
● The default standard configuration is 5W







Fiber optic adapter
LPS-XX
(XX represents optional interface)
● Integrating sphere optical fiber interface adapter, interface SMA905、FC/PC、SC、ST interface
● The default value is SMA905

● Including a Stand rod, base, making it up and down adjustable.

Typical Application

● Chroma and luminance measurement

● Light source radiation measurement

● Laser power measurement

● Transmission and reflection measurement

● Material fluorescence analysis

● Photoinduced/electroluminescent quantum efficiency



Integrating Sphere and Accessories (The following accessories can be equipped with all Integrating sphere)

Integrating sphere
iSphere-LPSXX-Y
(XX represents the diameter；Y represents the munber of ports）
● Spectral-range: 200-2500nm
● Reflectivity≥98%
● Size：2-8 inches，3/4 ports

Gold-plated Integrating sphere
iSphere-LPSXX-GD-Y
(XX represents diameter；
Y represents the munber of ports）
● Spectral-range ：1-16μm
● Reflectivity≥96%
● Size：2-8 Inches，4 ports

Port Reducer
LPS-PSK-XX(XX represents optional diameter）
● Directly coupled integrating sphere sampling port
● Step-free shrink diameter is 10mm or 25mm by default, other shrink diameter can
be selected according to user requirements internal diffuse PTFE







Plugger
LPS-PDK-1
● port plug
● 1-inch-integrating sphere plug
● internal diffuse PTFE

Gold-plated plugger
LPS-GDK-1
● port plug
● 1-inch-integrating sphere plug
● internal diffuse gold plating

Collimating lens
LPS-FOL
● can be directly coupled integrating sphere collimation lens
● focal length 8.7mm, interface standard SMA905







Integrating sphere detector
LPS-PWR-XX
(XX represents optional)
● Si/InGaAs/ MCT
● BNC Output interface

External halogen light source
LPS-HAL-BXX
(XX represents power）
● integrating sphere external halogen light source, power output 5-30W
● The default standard configuration is 5W

Built-in halogen light source
LPS-HAL-AXX
(XX represents power）
● Integrating sphere Built-in halogen light source, power output 5-30W
● The default standard configuration is 5W







Fiber optic adapter
LPS-XX
(XX represents optional interface)
● Integrating sphere optical fiber interface adapter, interface SMA905、FC/PC、SC、ST interface
● The default value is SMA905

● Including a Stand rod, base, making it up and down adjustable.

Model Selection Guide

iSphere-LPS XX -GD-3/4 (XX stands for integrating sphere size sampling “ 2 “,” 3.3 “,” 4 “,” 5.3 “,” 6 “，GD stands for gold plated, no GD defaults to PTFE, number 3 stands for 3 ports, 4 stands for 4 ports)

Integrating Sphere and Accessories

Model

Notes

2 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS50-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating sphere inside diameter size 2 inches, 0° opening diameter 1 inch, 90° opening 0.5 inches, 180° opening 0.5 inches, the North Pole opening is 0.5 inches in diameter

3.3 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS84-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball inside diameter 3.3 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

4 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS100-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball inside diameter size 4 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

5.3 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS135-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball diameter 5.3 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

6 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS150-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball diameter 6 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

2 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS50-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 2 inches, 0° opening diameter 1 inch, 90° opening 0.5 inches, 180° opening 0.5 inches,the North Pole opening 0.5 inches diameter

3.3 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS84-4

4 port integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 3.3 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

4 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS100-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 4 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

5.3 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS135-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 5.3 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

6 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS150-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 6 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

2 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS50-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 2 inches, the diameter of the 0° opening is 1 inch, and the 90° opening is 0.5 inches. 180° opening 0.5 inches , the North Pole opening 0.5 inches diameter

3.3 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS84-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 3.3 inches, the diameter of the 0° opening is 1.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

4 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS100-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 4 inches, the diameter of the 0° opening is 1.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

5.3 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS135-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 5.3 inches, the diameter of the 0° opening is 2.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

6 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS150-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 6 inches, the diameter of the 0° opening is 2.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

Plugger

LPS-PDK-1

Port plug, 1 inch integrating sphere plug (also available on request), internal diffuse reflective PTFE

Gold-Plated Plugger

LPS-GDK-1

Port plug, 1 inch integrating sphere plug (also available on request), internal diffuse gold plating

Hole Shrinker

LPS-PSK-XX
(XX is optional diameter）

Can be directly coupled with the integral sphere using the opening, no step indentation diameter default for 10mm or 25mm (can also be customized according to requirements), other indentation diameter can be selected according to user requirements internal diffuse reflective PTFE

Collimation Lens

LPS-FOL

Directly coupled integrating sphere collimator lens, focal length 8.7mm, interface standard SMA905

Fiber Optic Adapter

LPS-XX
(XX is optional Interfaces)

Integrating sphere fiber optic interface adapter, interface SMA905, FC/PC, SC, ST interface, default is SMA905

Built-in Halogen Light Source

LPS-HAL-AXX
(XX stands for power）

Integrating sphere with built-in halogen light source, power output of 5-30W
Default standard configuration 5W

External Halogen Light Source

LPS-HAL-BXX
(XX stands for power）

Integrating sphere external halogen light source, power output 5-30W
Default standard configuration 5W

Integrating Sphere Detecto

LPS-PWR-XX
(XX optional model)

Silicon detectors, spectral range 350-1100nm, direct coupling with integrating sphere, BNC output interface;
InGaAs cooled detector, spectral range 900-1700nm, direct coupling with integrating sphere, BNC output interface;
Dual-band silicon/InGaAs detector, spectral range 350-1700nm/350-2500nm, direct coupling with integrating sphere, BNC output interface
Mid-infrared MCT detector, spectral range 2-5μm/2-13μm, direct coupling with integrating sphere, BNC interface, optional liquid nitrogen cooling component, preamplifier；

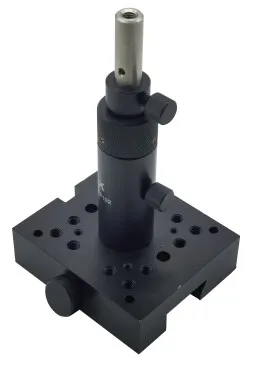

Stand Base

LPS-DZ-1

Including bracket support bar, base, up and down adjustable



Model Selection Guide

iSphere-LPS XX -GD-3/4 (XX stands for integrating sphere size sampling “ 2 “,” 3.3 “,” 4 “,” 5.3 “,” 6 “，GD stands for gold plated, no GD defaults to PTFE, number 3 stands for 3 ports, 4 stands for 4 ports)

Integrating Sphere and Accessories

Model

Notes

2 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS50-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating sphere inside diameter size 2 inches, 0° opening diameter 1 inch, 90° opening 0.5 inches, 180° opening 0.5 inches, the North Pole opening is 0.5 inches in diameter

3.3 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS84-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball inside diameter 3.3 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

4 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS100-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball inside diameter size 4 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

5.3 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS135-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball diameter 5.3 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

6 Inches Universal Standard Integrating Sphere (3 Ports)

iSphere-LPS150-3

3 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the baffle is located between 0° and 90° opening, integrating ball diameter 6 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch, the North Pole opening 1 inch in diameter

2 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS50-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 2 inches, 0° opening diameter 1 inch, 90° opening 0.5 inches, 180° opening 0.5 inches,the North Pole opening 0.5 inches diameter

3.3 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS84-4

4 port integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 3.3 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

4 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS100-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 4 inches, 0° opening diameter 1.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

5.3 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS135-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 5.3 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

6 Inches Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS150-4

4 ports integrating sphere, PTFE high reflectance > 98%, spectral range 200-2500nm, integrating sphere equator 0° and 90° direction of two ports, the third opening at the top, the fourth opening is located opposite the 0° opening, the baffle is located between 0° and 90° opening, integrating sphere diameter 6 inches, 0° opening diameter 2.5 inches, 90° opening 1 inch, 180° opening 1 inch ,the North Pole opening 1 inch diameter

2 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS50-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 2 inches, the diameter of the 0° opening is 1 inch, and the 90° opening is 0.5 inches. 180° opening 0.5 inches , the North Pole opening 0.5 inches diameter

3.3 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS84-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 3.3 inches, the diameter of the 0° opening is 1.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

4 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS100-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 4 inches, the diameter of the 0° opening is 1.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

5.3 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS135-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 5.3 inches, the diameter of the 0° opening is 2.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

6 Inches Gold-Plated Universal Standard Integrating Sphere (4 Ports)

iSphere-LPS150-GD-4

4 ports gold-plated integrating sphere, gold-plated high reflectance > 96%, spectral range 1-16μm, two ports in the direction of 0° and 90° equator of the integrating sphere, the third opening at the top, the fourth opening opposite the 0° opening, the baffle between 0° and 90° opening, the inside diameter of the integrating sphere is 6 inches, the diameter of the 0° opening is 2.5 inches, and the 90° opening is 1 inch. 180° opening 1 inch , the North Pole opening 1 inch diameter

Plugger

LPS-PDK-1

Port plug, 1 inch integrating sphere plug (also available on request), internal diffuse reflective PTFE

Gold-Plated Plugger

LPS-GDK-1

Port plug, 1 inch integrating sphere plug (also available on request), internal diffuse gold plating

Hole Shrinker

LPS-PSK-XX
(XX is optional diameter）

Can be directly coupled with the integral sphere using the opening, no step indentation diameter default for 10mm or 25mm (can also be customized according to requirements), other indentation diameter can be selected according to user requirements internal diffuse reflective PTFE

Collimation Lens

LPS-FOL

Directly coupled integrating sphere collimator lens, focal length 8.7mm, interface standard SMA905

Fiber Optic Adapter

LPS-XX
(XX is optional Interfaces)

Integrating sphere fiber optic interface adapter, interface SMA905, FC/PC, SC, ST interface, default is SMA905

Built-in Halogen Light Source

LPS-HAL-AXX
(XX stands for power）

Integrating sphere with built-in halogen light source, power output of 5-30W
Default standard configuration 5W

External Halogen Light Source

LPS-HAL-BXX
(XX stands for power）

Integrating sphere external halogen light source, power output 5-30W
Default standard configuration 5W

Integrating Sphere Detecto

LPS-PWR-XX
(XX optional model)

Silicon detectors, spectral range 350-1100nm, direct coupling with integrating sphere, BNC output interface;
InGaAs cooled detector, spectral range 900-1700nm, direct coupling with integrating sphere, BNC output interface;
Dual-band silicon/InGaAs detector, spectral range 350-1700nm/350-2500nm, direct coupling with integrating sphere, BNC output interface
Mid-infrared MCT detector, spectral range 2-5μm/2-13μm, direct coupling with integrating sphere, BNC interface, optional liquid nitrogen cooling component, preamplifier；

Stand Base

LPS-DZ-1

Including bracket support bar, base, up and down adjustable



Prev: no data!
Send Inquiry
Name
*
Email
*
Tel
  • Angola+244
  • Afghanistan+93
  • Albania+355
  • Algeria+213
  • Andorra+376
  • Anguilla+1264
  • Antigua and Barbuda+1268
  • Argentina+54
  • Armenia+374
  • Ascension+247
  • Australia+61
  • Austria+43
  • Azerbaijan+994
  • Bahamas+1242
  • Bahrain+973
  • Bangladesh+880
  • Barbados+1246
  • Belarus+375
  • Belgium+32
  • Belize+501
  • Benin+229
  • Bermuda Is.+1441
  • Bolivia+591
  • Botswana+267
  • Brazil+55
  • Brunei+673
  • Bulgaria+359
  • Burkina+faso+226
  • Burma+95
  • Burundi+257
  • Cameroon+237
  • Canada+1
  • Cayman Is.+1345
  • Central African Republic+236
  • Chad+235
  • Chile+56
  • China+86
  • Colombia+57
  • Congo+242
  • Cook Is.+682
  • Costa Rica+506
  • Cuba+53
  • Cyprus+357
  • Czech Republic+420
  • Denmark+45
  • Djibouti+253
  • Dominica Rep.+1890
  • Ecuador+593
  • Egypt+20
  • EI Salvador+503
  • Estonia+372
  • Ethiopia+251
  • Fiji+679
  • Finland+358
  • France+33
  • French Guiana+594
  • Gabon+241
  • Gambia+220
  • Georgia+995
  • Germany+49
  • Ghana+233
  • Gibraltar+350
  • Greece+30
  • Grenada+1809
  • Guam+1671
  • Guatemala+502
  • Guinea+224
  • Guyana+592
  • Haiti+509
  • Honduras+504
  • Hongkong+852
  • Hungary+36
  • Iceland+354
  • India+91
  • Indonesia+62
  • Iran+98
  • Iraq+964
  • Ireland+353
  • Israel+972
  • Italy+39
  • Ivory Coast+225
  • Jamaica+1876
  • Japan+81
  • Jordan+962
  • Kampuchea (Cambodia )+855
  • Kazakstan+327
  • Kenya+254
  • Korea+82
  • Kuwait+965
  • Kyrgyzstan+331
  • Laos+856
  • Latvia+371
  • Lebanon+961
  • Lesotho+266
  • Liberia+231
  • Libya+218
  • Liechtenstein+423
  • Lithuania+370
  • Luxembourg+352
  • Macao+853
  • Madagascar+261
  • Malawi+265
  • Malaysia+60
  • Maldives+960
  • Mali+223
  • Malta+356
  • Mariana Is+1670
  • Martinique+596
  • Mauritius+230
  • Mexico+52
  • Moldova, Republic of+373
  • Monaco+377
  • Mongolia+976
  • Montserrat Is+1664
  • Morocco+212
  • Mozambique+258
  • Namibia+264
  • Nauru+674
  • Nepal+977
  • Netheriands Antilles+599
  • Netherlands+31
  • New Zealand+64
  • Nicaragua+505
  • Niger+227
  • Nigeria+234
  • North Korea+850
  • Norway+47
  • Oman+968
  • Pakistan+92
  • Panama+507
  • Papua New Cuinea+675
  • Paraguay+595
  • Peru+51
  • Philippines+63
  • Poland+48
  • French Polynesia+689
  • Portugal+351
  • Puerto Rico+1787
  • Qatar+974
  • Reunion+262
  • Romania+40
  • Russia+7
  • Saint Lueia+1758
  • Saint Vincent+1784
  • Samoa Eastern+684
  • Samoa Western+685
  • San Marino+378
  • Sao Tome and Principe+239
  • Saudi Arabia+966
  • Senegal+221
  • Seychelles+248
  • Sierra Leone+232
  • Singapore+65
  • Slovakia+421
  • Slovenia+386
  • Solomon Is+677
  • Somali+252
  • South Africa+27
  • Spain+34
  • Sri Lanka+94
  • St.Lucia+1758
  • St.Vincent+1784
  • Sudan+249
  • Suriname+597
  • Swaziland+268
  • Sweden+46
  • Switzerland+41
  • Syria+963
  • Taiwan+886
  • Tajikstan+992
  • Tanzania+255
  • Thailand+66
  • Togo+228
  • Tonga+676
  • Trinidad and Tobago+1809
  • Tunisia+216
  • Turkey+90
  • Turkmenistan+993
  • Uganda+256
  • Ukraine+380
  • United Arab Emirates+971
  • United Kiongdom+44
  • United States of America+1
  • Uruguay+598
  • Uzbekistan+233
  • Venezuela+58
  • Vietnam+84
  • Yemen+967
  • Yugoslavia+381
  • Zimbabwe+263
  • Zaire+243
  • Zambia+260
*
Message
*
