Transflectance Integrating Sphere





Product Introduction

Main Technical Specifications

Name

Model

PIC.

Technical Specifications

Description

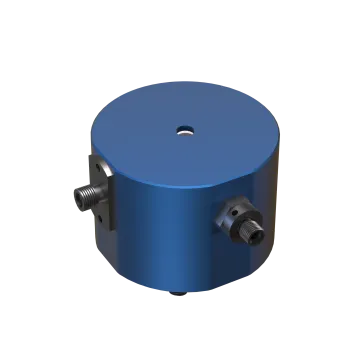

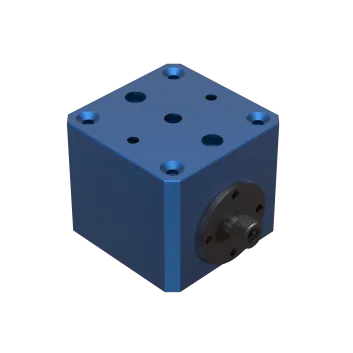

Micro Transmission Integrating Sphere

iSphere-E1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф12.5mm

5.Measurement Port Diameter: Ф4mm

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (0.5 inches inner diameter), also can be used for spectral radiance measurements.

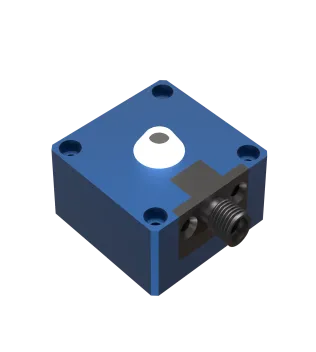

Small Transmission Integrating Sphere

iSphere-S1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф5mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1 inches inner diameter), also can be used for spectral radiance measurements.

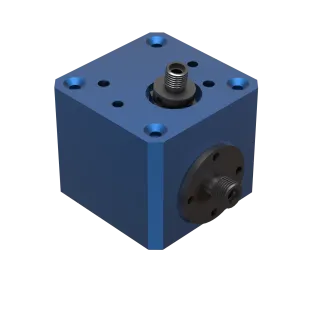

Small Transmission Integrating Sphere

iSphere-S2-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф8mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.0 inches inner diameter), also can be used for spectral radiance measurements.

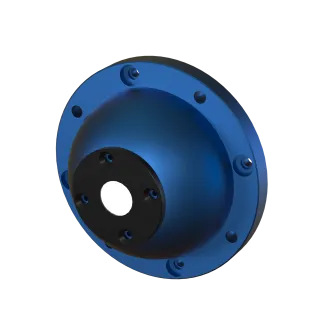

 Standard Transmission Integrating Sphere

iSphere-C3-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: Ф≤15mm(standard Ф9.5mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.5 inches inner diameter).

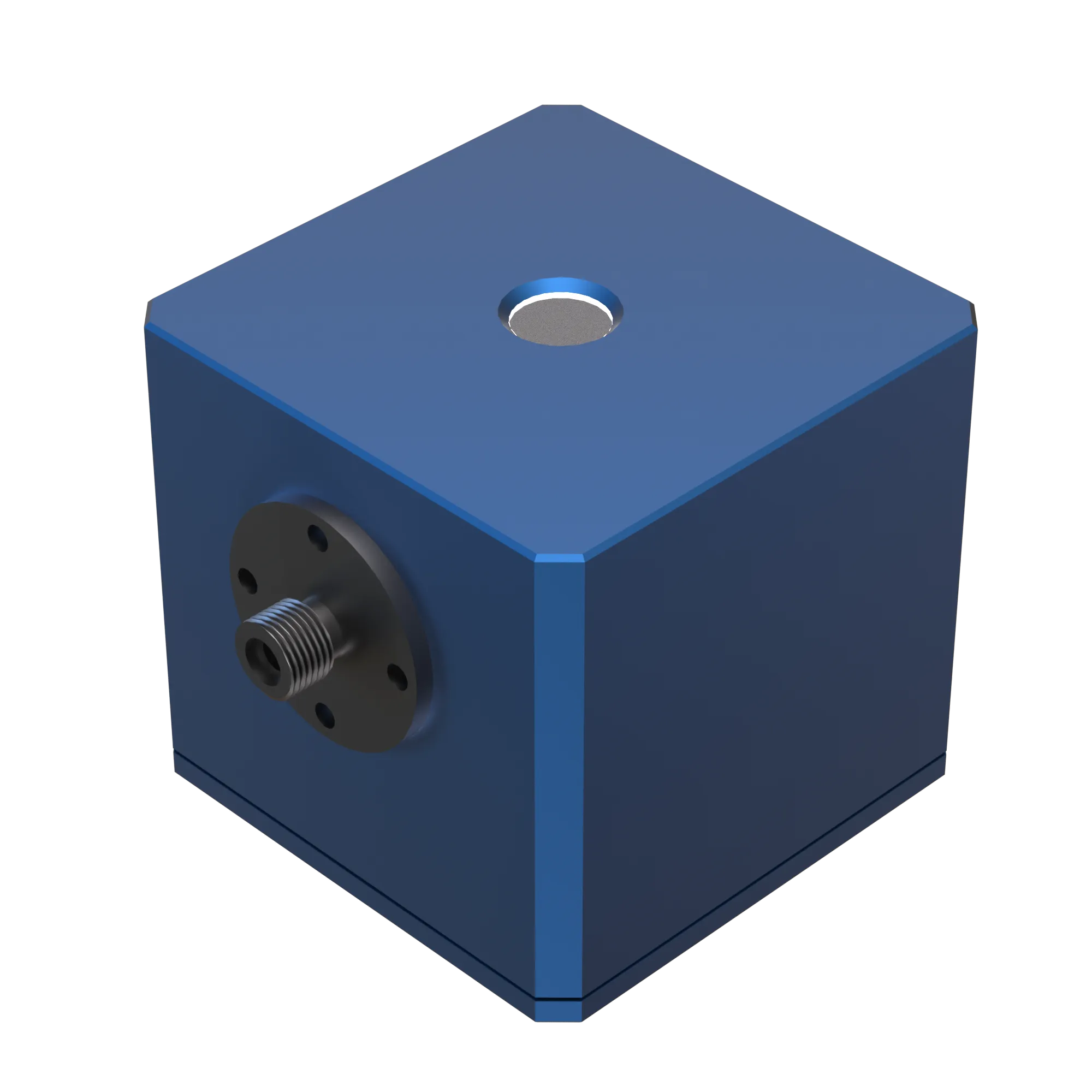

Standard Transmission Integrating Sphere

iSphere-C4-TMS

1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф7mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.2 inches inner diameter).

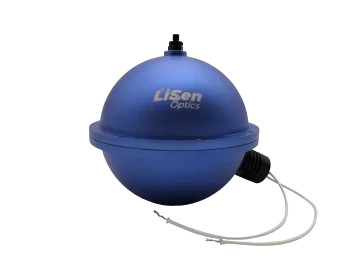

Standard Transmission Integrating Sphere

iSphere-D1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф50mm

5.Measurement Port Diameter: Ф≤20mm(standard Ф10mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (2.0 inches inner diameter).

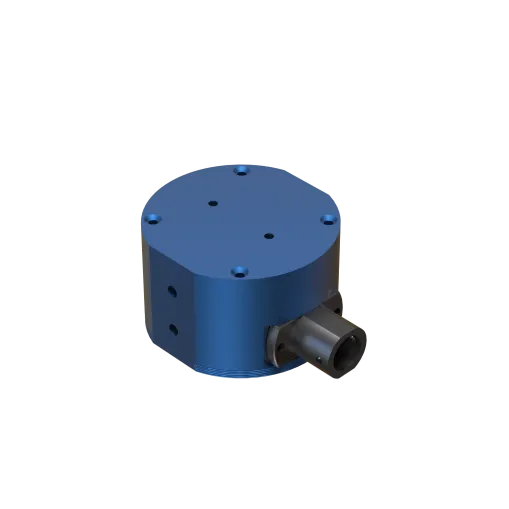

Standard Transmission Integrating Sphere

iSphere-S7-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф10mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

7.Detector Interface: SM1/SM05(Available for THORLABS Interface)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.0 inches inner diameter).

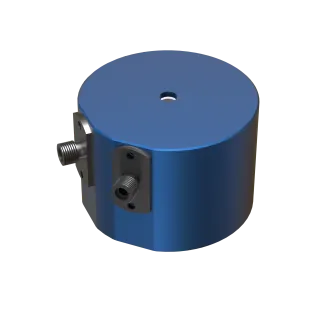

Transmission Integrating Sphere With PD

iSphere-C2-R4-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: Ф≤15mm(standard Ф11mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

7.Detector Interface: 1 BNC standard PD photodetector

8.PD Filter: 520/850/940nm (other wavelengths can be customized)

9. Detector Spectral Range: 350-1100nm/900-1700nm/1000-2500nm

Mainly used for spectral transmission measurement or radiance measurement, this integrating sphere supports spectral and detector methods, receiving light from a 90° direction spectrometer (SMA905 interface), the other main interface is the BNC interface with a built-in PD detector with specified wavelength narrow bandpass filter, mainly used for material transmittance, EQE electroluminescence and other fields measurement, can also be used for angle of incidence sample reflection measurement, this integrating sphere can well collect diffuse reflection or collimated light irradiated to the sample's transmitted and reflected light signal (inner diameter 1.5 inches)

Standard Reflectance Integrating Sphere

iSphere-S1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: ≤Ф10mm(standard Ф5mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 1 inch).

Standard Reflectance Integrating Sphere

iSphere-C3-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: ≤Ф15mm(standard Ф9.5mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 1.5 inch).

Standard Reflectance Integrating Sphere

iSphere-D1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф50mm

5.Measurement Port Diameter: ≤Ф20mm(standard Ф10mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 2 inch).）

Reflectance Integrating Sphere With PD & Light Trap

iSphere-S1-TRAP-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: Ф5mm

6.Light Trap：Removable

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Detector Interface: 1 BNC standard PD photodetector

9.PD Filter: 520/850/940nm (other wavelengths can be customized)

10. Spectral Range:350-1100nm/900-1700nm/1000-2500nm

With PD standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), connected to a detector with a BNC interface output at 90° direction, includes a built-in narrow bandpass filter, and comes with a detachable light trap to achieve both SCI (including specular reflection) and SCE (excluding specular reflection) two types of reflectance measurement modes. It is mainly used for material reflectance, PL photoluminescence, and other related field measurements using the detector method (inner diameter 1 inch)."

Transmission  & Reflectance Integrating Sphere With Built-In Light Source

iSphere-D1-HAL-REF



1.Light Source Range：380-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Light Power：5W/6V

5.Inner Diameter of Sphere：Ф50mm

6. Measurement Interface Diameter ：10mm

7.Optical Interface:8° direction with collimating lens SMA905 interface

8.Power Interface：M9

Standard transmittance and reflectance measurement, 8° angle incident (with a collimating lens) for the spectrometer interface SMA905, built-in 5W halogen light source, spectral range 380-2500nm. The unique light efficiency coupling design solves the problem of weak transmission and reflection spectral signals when traditional fiber optic sources and spectrometers are paired with integrating spheres. The integrated built-in light source design is expandable, flexible, and easy to pair with a simple and convenient optical path, making it very suitable for transmittance and reflectance measurements of materials and other samples (inner diameter 2 inches).

d/0 Reflectance Integrating Sphere

iSphere-A1-HAL-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Reflection Optic Path：d/0

5.Inner Diameter of Sphere：Ф100mm

6.Measurement Port Diameter: Ф20mm

7.Receiving Interface: 0° direction with SMA905 interface collimating lens

8.Incident Interface: M9-3P aviation terminal interface (10W halogen lamp with ceramic base)

Mainly used for (d/0) reflectance spectral measurement, equipped with standard A light source (halogen light source) and lamp holder, the unique structural design facilitates bulb replacement (inner diameter 4 inches), capable of switching between spectrometric and detector methods to measure reflectance.

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 2 SMA905, angle 45°

Multi-channel reception standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), 0° direction 1mm diameter opening, dual path reception SMA fiber interfaces, reception end angle 45°/90°, used for material

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R2-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 2 SMA905, angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), 0° direction 1mm diameter opening, dual path reception SMA fiber interfaces, reception end angle 45°/90°, used for material

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R3-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 1 SMA905, 1 a collimating lens in SMA905 angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), a 0° direction 1mm diameter opening, one side receiving through a collimating lens SMA fiber interface, another route.

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R4-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 1 SMA905, 1 a Collimating lens in SMA905 angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), a 0° direction 1mm diameter opening, one side receiving through a collimating lens SMA fiber interface, another route.



Main Technical Specifications

Name

Model

PIC.

Technical Specifications

Description

Micro Transmission Integrating Sphere

iSphere-E1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф12.5mm

5.Measurement Port Diameter: Ф4mm

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (0.5 inches inner diameter), also can be used for spectral radiance measurements.

Small Transmission Integrating Sphere

iSphere-S1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф5mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1 inches inner diameter), also can be used for spectral radiance measurements.

Small Transmission Integrating Sphere

iSphere-S2-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere:Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф8mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for optical transmittance measurements of optical materials lenses, suitable for mobile screens, displays, glass lenses, adhesives, inks, coated lenses, etc., as well as reflectance measurements for samples with angle of incidence, employs ellipsoidal optical design, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.0 inches inner diameter), also can be used for spectral radiance measurements.

 Standard Transmission Integrating Sphere

iSphere-C3-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: Ф≤15mm(standard Ф9.5mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.5 inches inner diameter).

Standard Transmission Integrating Sphere

iSphere-C4-TMS

1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф7mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.2 inches inner diameter).

Standard Transmission Integrating Sphere

iSphere-D1-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф50mm

5.Measurement Port Diameter: Ф≤20mm(standard Ф10mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (2.0 inches inner diameter).

Standard Transmission Integrating Sphere

iSphere-S7-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: Ф≤10mm(standard Ф10mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

7.Detector Interface: SM1/SM05(Available for THORLABS Interface)

Primarily used for spectral transmittance measurements or radiance measurements, 90° direction connects to the spectrometer (SMA905 interface), mainly used for material transmittance, EQE electroluminescence and other field measurements, as well as reflectance measurements for samples with angle of incidence, the sphere can effectively collect diffuse or collimated light transmitted or reflected by the sample (1.0 inches inner diameter).

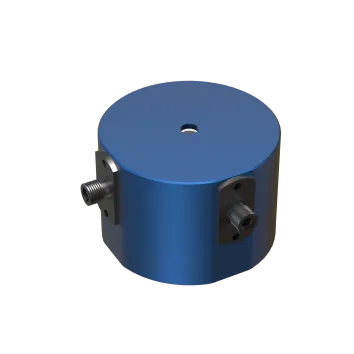

Transmission Integrating Sphere With PD

iSphere-C2-R4-TMS



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: Ф≤15mm(standard Ф11mm, other sampling port diameters can be customized)

6.Optical Interface: 1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

7.Detector Interface: 1 BNC standard PD photodetector

8.PD Filter: 520/850/940nm (other wavelengths can be customized)

9. Detector Spectral Range: 350-1100nm/900-1700nm/1000-2500nm

Mainly used for spectral transmission measurement or radiance measurement, this integrating sphere supports spectral and detector methods, receiving light from a 90° direction spectrometer (SMA905 interface), the other main interface is the BNC interface with a built-in PD detector with specified wavelength narrow bandpass filter, mainly used for material transmittance, EQE electroluminescence and other fields measurement, can also be used for angle of incidence sample reflection measurement, this integrating sphere can well collect diffuse reflection or collimated light irradiated to the sample's transmitted and reflected light signal (inner diameter 1.5 inches)

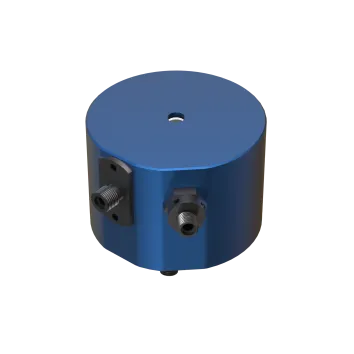

Standard Reflectance Integrating Sphere

iSphere-S1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: ≤Ф10mm(standard Ф5mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 1 inch).

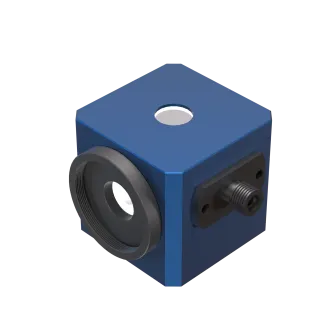

Standard Reflectance Integrating Sphere

iSphere-C3-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф38mm

5.Measurement Port Diameter: ≤Ф15mm(standard Ф9.5mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 1.5 inch).

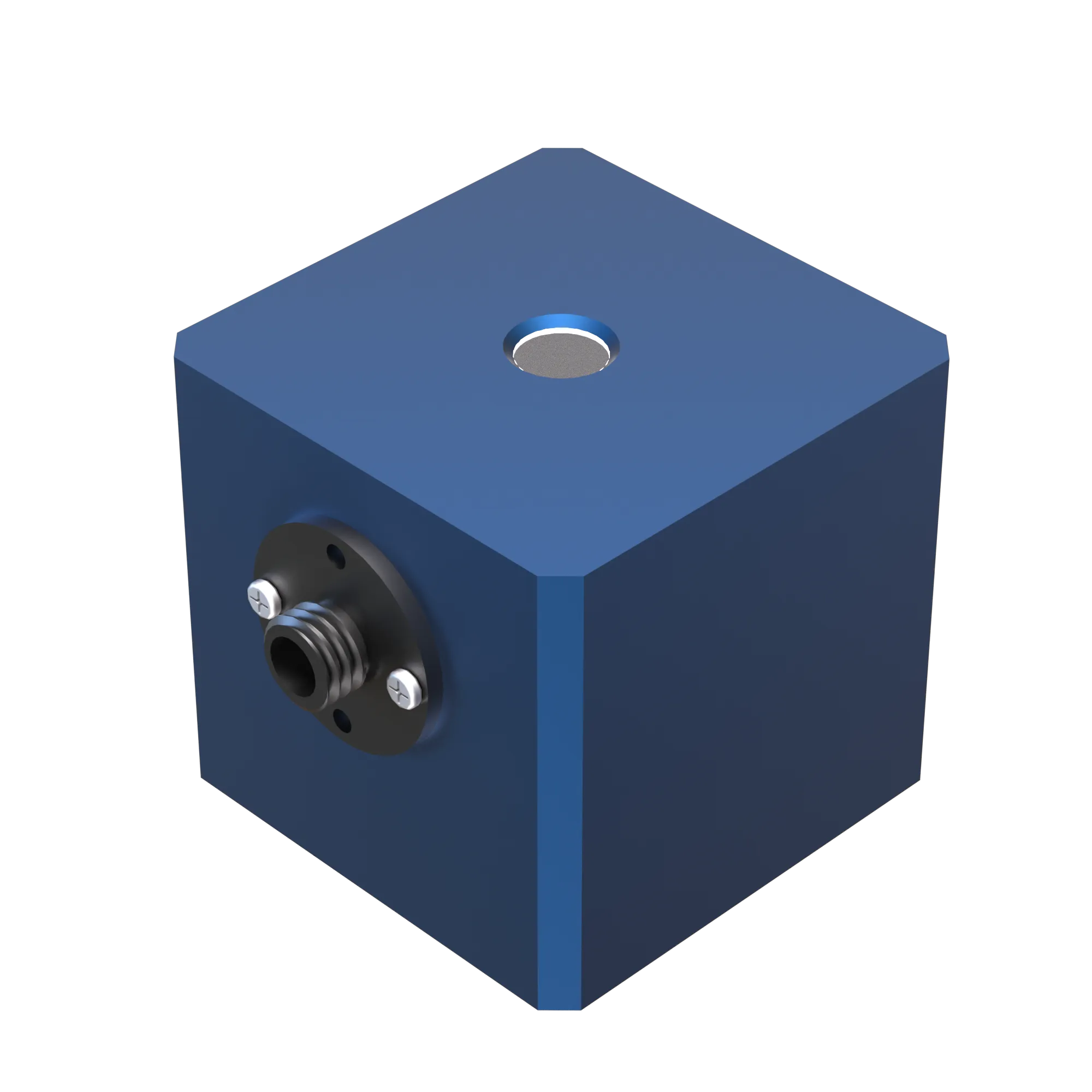

Standard Reflectance Integrating Sphere

iSphere-D1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф50mm

5.Measurement Port Diameter: ≤Ф20mm(standard Ф10mm, other sampling port diameters can be customized)

6.Incident Interface:8° direction with collimating lens SMA905 interface

7.Optical Interface:1 SMA905 or FC standard fiber optic interface or IS spectral interface (German IS spectrometer) or HM spectral interface (Japanese Hamamatsu spectrometer)

Standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), connected to a spectrometer in the 90° direction (SMA905 interface), primarily used for measuring material reflectance, PL photoluminescence, and other similar fields (inner diameter 2 inch).）

Reflectance Integrating Sphere With PD & Light Trap

iSphere-S1-TRAP-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф25mm

5.Measurement Port Diameter: Ф5mm

6.Light Trap：Removable

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Detector Interface: 1 BNC standard PD photodetector

9.PD Filter: 520/850/940nm (other wavelengths can be customized)

10. Spectral Range:350-1100nm/900-1700nm/1000-2500nm

With PD standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), connected to a detector with a BNC interface output at 90° direction, includes a built-in narrow bandpass filter, and comes with a detachable light trap to achieve both SCI (including specular reflection) and SCE (excluding specular reflection) two types of reflectance measurement modes. It is mainly used for material reflectance, PL photoluminescence, and other related field measurements using the detector method (inner diameter 1 inch)."

Transmission  & Reflectance Integrating Sphere With Built-In Light Source

iSphere-D1-HAL-REF



1.Light Source Range：380-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Light Power：5W/6V

5.Inner Diameter of Sphere：Ф50mm

6. Measurement Interface Diameter ：10mm

7.Optical Interface:8° direction with collimating lens SMA905 interface

8.Power Interface：M9

Standard transmittance and reflectance measurement, 8° angle incident (with a collimating lens) for the spectrometer interface SMA905, built-in 5W halogen light source, spectral range 380-2500nm. The unique light efficiency coupling design solves the problem of weak transmission and reflection spectral signals when traditional fiber optic sources and spectrometers are paired with integrating spheres. The integrated built-in light source design is expandable, flexible, and easy to pair with a simple and convenient optical path, making it very suitable for transmittance and reflectance measurements of materials and other samples (inner diameter 2 inches).

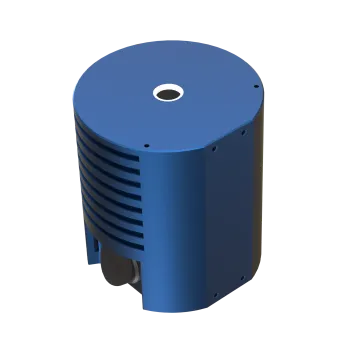

d/0 Reflectance Integrating Sphere

iSphere-A1-HAL-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Reflection Optic Path：d/0

5.Inner Diameter of Sphere：Ф100mm

6.Measurement Port Diameter: Ф20mm

7.Receiving Interface: 0° direction with SMA905 interface collimating lens

8.Incident Interface: M9-3P aviation terminal interface (10W halogen lamp with ceramic base)

Mainly used for (d/0) reflectance spectral measurement, equipped with standard A light source (halogen light source) and lamp holder, the unique structural design facilitates bulb replacement (inner diameter 4 inches), capable of switching between spectrometric and detector methods to measure reflectance.

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R1-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 2 SMA905, angle 45°

Multi-channel reception standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), 0° direction 1mm diameter opening, dual path reception SMA fiber interfaces, reception end angle 45°/90°, used for material

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R2-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 2 SMA905, angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at 8° angle incident (with a collimating lens), 0° direction 1mm diameter opening, dual path reception SMA fiber interfaces, reception end angle 45°/90°, used for material

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R3-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 1 SMA905, 1 a collimating lens in SMA905 angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), a 0° direction 1mm diameter opening, one side receiving through a collimating lens SMA fiber interface, another route.

Multi-Channel Reception Reflectance Integrating Sphere

iSphere-S3-R4-REF



1.Spectral Range:200-2500nm

2.Exit Port Uniformity:＞99%

3.Sphere Material Reflectance:≥98%

4.Inner Diameter of Sphere: Ф30mm

5.0° direction opening diameter: 1mm

6.Measurement Port Diameter: ≤Ф12mm (standard Ф6mm, other sampling port diameters can be customized)

7.Incident interface:8° direction with collimating lens SMA905 interface

8.Receiving Interface: 1 SMA905, 1 a Collimating lens in SMA905 angle 90°

Multi-channel reception standard reflectance measurement, illumination light source at an 8° angle incident (with a collimating lens), a 0° direction 1mm diameter opening, one side receiving through a collimating lens SMA fiber interface, another route.















Send Inquiry
Name
*
Email
*
Tel
  • Angola+244
  • Afghanistan+93
  • Albania+355
  • Algeria+213
  • Andorra+376
  • Anguilla+1264
  • Antigua and Barbuda+1268
  • Argentina+54
  • Armenia+374
  • Ascension+247
  • Australia+61
  • Austria+43
  • Azerbaijan+994
  • Bahamas+1242
  • Bahrain+973
  • Bangladesh+880
  • Barbados+1246
  • Belarus+375
  • Belgium+32
  • Belize+501
  • Benin+229
  • Bermuda Is.+1441
  • Bolivia+591
  • Botswana+267
  • Brazil+55
  • Brunei+673
  • Bulgaria+359
  • Burkina+faso+226
  • Burma+95
  • Burundi+257
  • Cameroon+237
  • Canada+1
  • Cayman Is.+1345
  • Central African Republic+236
  • Chad+235
  • Chile+56
  • China+86
  • Colombia+57
  • Congo+242
  • Cook Is.+682
  • Costa Rica+506
  • Cuba+53
  • Cyprus+357
  • Czech Republic+420
  • Denmark+45
  • Djibouti+253
  • Dominica Rep.+1890
  • Ecuador+593
  • Egypt+20
  • EI Salvador+503
  • Estonia+372
  • Ethiopia+251
  • Fiji+679
  • Finland+358
  • France+33
  • French Guiana+594
  • Gabon+241
  • Gambia+220
  • Georgia+995
  • Germany+49
  • Ghana+233
  • Gibraltar+350
  • Greece+30
  • Grenada+1809
  • Guam+1671
  • Guatemala+502
  • Guinea+224
  • Guyana+592
  • Haiti+509
  • Honduras+504
  • Hongkong+852
  • Hungary+36
  • Iceland+354
  • India+91
  • Indonesia+62
  • Iran+98
  • Iraq+964
  • Ireland+353
  • Israel+972
  • Italy+39
  • Ivory Coast+225
  • Jamaica+1876
  • Japan+81
  • Jordan+962
  • Kampuchea (Cambodia )+855
  • Kazakstan+327
  • Kenya+254
  • Korea+82
  • Kuwait+965
  • Kyrgyzstan+331
  • Laos+856
  • Latvia+371
  • Lebanon+961
  • Lesotho+266
  • Liberia+231
  • Libya+218
  • Liechtenstein+423
  • Lithuania+370
  • Luxembourg+352
  • Macao+853
  • Madagascar+261
  • Malawi+265
  • Malaysia+60
  • Maldives+960
  • Mali+223
  • Malta+356
  • Mariana Is+1670
  • Martinique+596
  • Mauritius+230
  • Mexico+52
  • Moldova, Republic of+373
  • Monaco+377
  • Mongolia+976
  • Montserrat Is+1664
  • Morocco+212
  • Mozambique+258
  • Namibia+264
  • Nauru+674
  • Nepal+977
  • Netheriands Antilles+599
  • Netherlands+31
  • New Zealand+64
  • Nicaragua+505
  • Niger+227
  • Nigeria+234
  • North Korea+850
  • Norway+47
  • Oman+968
  • Pakistan+92
  • Panama+507
  • Papua New Cuinea+675
  • Paraguay+595
  • Peru+51
  • Philippines+63
  • Poland+48
  • French Polynesia+689
  • Portugal+351
  • Puerto Rico+1787
  • Qatar+974
  • Reunion+262
  • Romania+40
  • Russia+7
  • Saint Lueia+1758
  • Saint Vincent+1784
  • Samoa Eastern+684
  • Samoa Western+685
  • San Marino+378
  • Sao Tome and Principe+239
  • Saudi Arabia+966
  • Senegal+221
  • Seychelles+248
  • Sierra Leone+232
  • Singapore+65
  • Slovakia+421
  • Slovenia+386
  • Solomon Is+677
  • Somali+252
  • South Africa+27
  • Spain+34
  • Sri Lanka+94
  • St.Lucia+1758
  • St.Vincent+1784
  • Sudan+249
  • Suriname+597
  • Swaziland+268
  • Sweden+46
  • Switzerland+41
  • Syria+963
  • Taiwan+886
  • Tajikstan+992
  • Tanzania+255
  • Thailand+66
  • Togo+228
  • Tonga+676
  • Trinidad and Tobago+1809
  • Tunisia+216
  • Turkey+90
  • Turkmenistan+993
  • Uganda+256
  • Ukraine+380
  • United Arab Emirates+971
  • United Kiongdom+44
  • United States of America+1
  • Uruguay+598
  • Uzbekistan+233
  • Venezuela+58
  • Vietnam+84
  • Yemen+967
  • Yugoslavia+381
  • Zimbabwe+263
  • Zaire+243
  • Zambia+260
*
Message
*
