Laser Far-Field Measurement System
With the development of IoT, AI, and 5G technologies, VCSEL (Vertical Cavity Surface Emitting Laser) technology, as a core technology of 3D imaging and sensing systems, is increasingly gaining attention in applications such as facial recognition, 3D sensing, autonomous driving, gesture detection, and VR (Virtual Reality)/AR (Augmented Reality)/MR (Mixed Reality).
LiSen Optics can provide customers with VCSEL/VCSEL-3D SENSING/TOF detection solutions, including LIV spectrum/power integration testing, NF near-field characteristic testing, FF far-field characteristic testing, BRDF/BTDF optical material AR/VR characteristic testing, and VCSEL-specific integrating spheres. These solutions enable the measurement of energy distribution and uniformity, spectral wavelength and power, near-field and far-field measurements for VCSEL/Mini LED/Micro LED devices, modules, and wafer chips to meet various customized application needs.
With the development of IoT, AI, and 5G technologies, VCSEL (Vertical Cavity Surface Emitting Laser) technology, as a core technology of 3D imaging and sensing systems, is increasingly gaining attention in applications such as facial recognition, 3D sensing, autonomous driving, gesture detection, and VR (Virtual Reality)/AR (Augmented Reality)/MR (Mixed Reality).
LiSen Optics can provide customers with VCSEL/VCSEL-3D SENSING/TOF detection solutions, including LIV spectrum/power integration testing, NF near-field characteristic testing, FF far-field characteristic testing, BRDF/BTDF optical material AR/VR characteristic testing, and VCSEL-specific integrating spheres. These solutions enable the measurement of energy distribution and uniformity, spectral wavelength and power, near-field and far-field measurements for VCSEL/Mini LED/Micro LED devices, modules, and wafer chips to meet various customized application needs.
Product Introduction

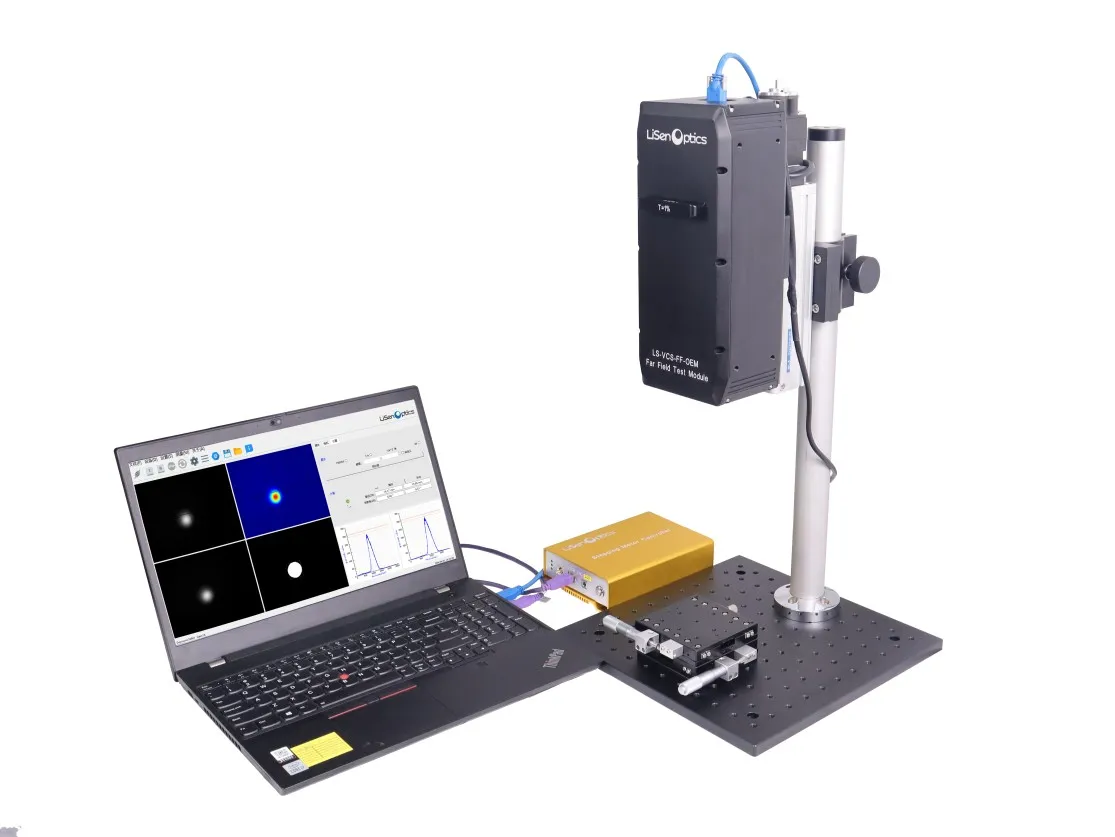

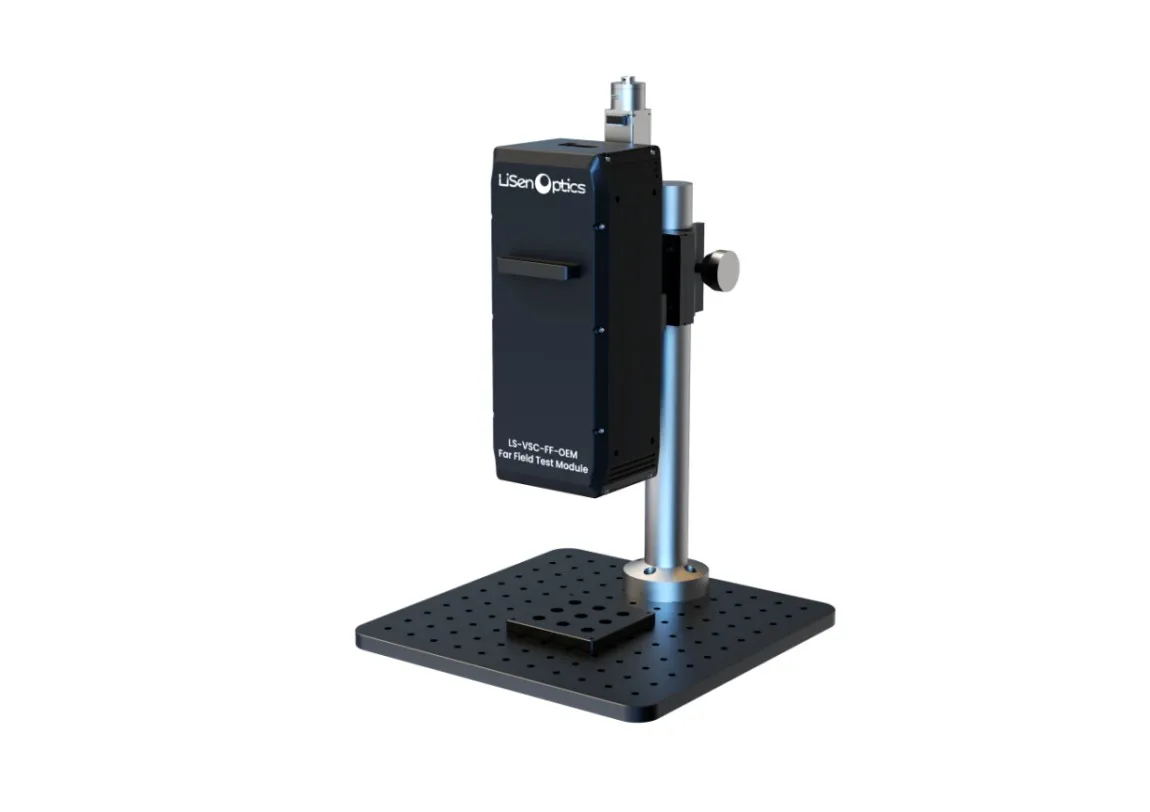

The LS-VCS-FF far-field testing system, developed by LiSen Optics specifically for VCSEL far-field testing, can measure the far-field divergence angle and spatial energy distribution of the beam, thereby calculating the beam collimation and symmetry. It can also measure the energy density of the beam at different distances for laser safety evaluation.
The LS-VCS-FF far-field testing system, developed by LiSen Optics specifically for VCSEL far-field testing, can measure the far-field divergence angle and spatial energy distribution of the beam, thereby calculating the beam collimation and symmetry. It can also measure the energy density of the beam at different distances for laser safety evaluation.
Main Technical Features
● High Collection Efficiency: Equipped with a 36.9fps frame rate, 5-megapixel high-resolution camera (400-1000nm) / 200fps frame rate, 1.3-megapixel camera (900-1700nm).
● High Precision Measurement: Utilizes precision motors for testing, precision guide rails, and fixed fixtures with a standard C-Mount interface, ensuring high accuracy in divergence angle measurement.
● Versatile Light Source Measurement: Capable of measuring the divergence angle (2°~70°) of laser or LED light sources, as well as DIP (spot center depression).
● Multiple Standards for Spot Diameter: Provides four different standards to define the spot diameter, facilitating comprehensive far-field divergence angle characteristic measurement.
● Compact and Lightweight: The far-field testing system is small in size and lightweight.
Main Technical Features
● High Collection Efficiency: Equipped with a 36.9fps frame rate, 5-megapixel high-resolution camera (400-1000nm) / 200fps frame rate, 1.3-megapixel camera (900-1700nm).
● High Precision Measurement: Utilizes precision motors for testing, precision guide rails, and fixed fixtures with a standard C-Mount interface, ensuring high accuracy in divergence angle measurement.
● Versatile Light Source Measurement: Capable of measuring the divergence angle (2°~70°) of laser or LED light sources, as well as DIP (spot center depression).
● Multiple Standards for Spot Diameter: Provides four different standards to define the spot diameter, facilitating comprehensive far-field divergence angle characteristic measurement.
● Compact and Lightweight: The far-field testing system is small in size and lightweight.
Technical Principle

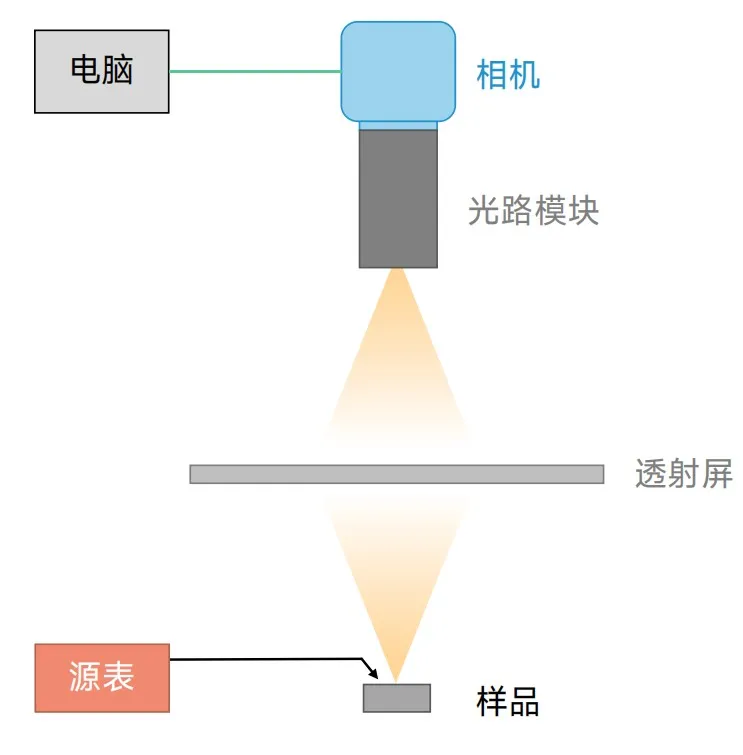

The Principle of Far-Field Test Module
Relative Application
 |
 |
|
Vcsel/Micro/Mini LED |
3D Sensing |
 |
 |
|
Eye’s Safety |
Sweeping Robot |
Technical Principle
The Principle of Far-Field Test Module
Relative Application
|
|
|
Vcsel/Micro/Mini LED |
3D Sensing |
|
|
|
Eye’s Safety |
Sweeping Robot |
Technical Indicators
|
Model |
LS-VCS-FF |
|
Spectral Range |
400-1000nm / 900-1700nm |
|
Pixel Resolution |
2592×1944 / 1280×1024 |
|
Target Size |
1/2.8" (5.184mm x 3.888mm) / 1/2" (6.4mm x 5.12mm) |
|
Pixel Size |
2.0 μm / 5.0 μm |
|
Perpendicularity |
<1° |
|
Positioning Accuracy |
0.01mm |
|
Software Testing Functions |

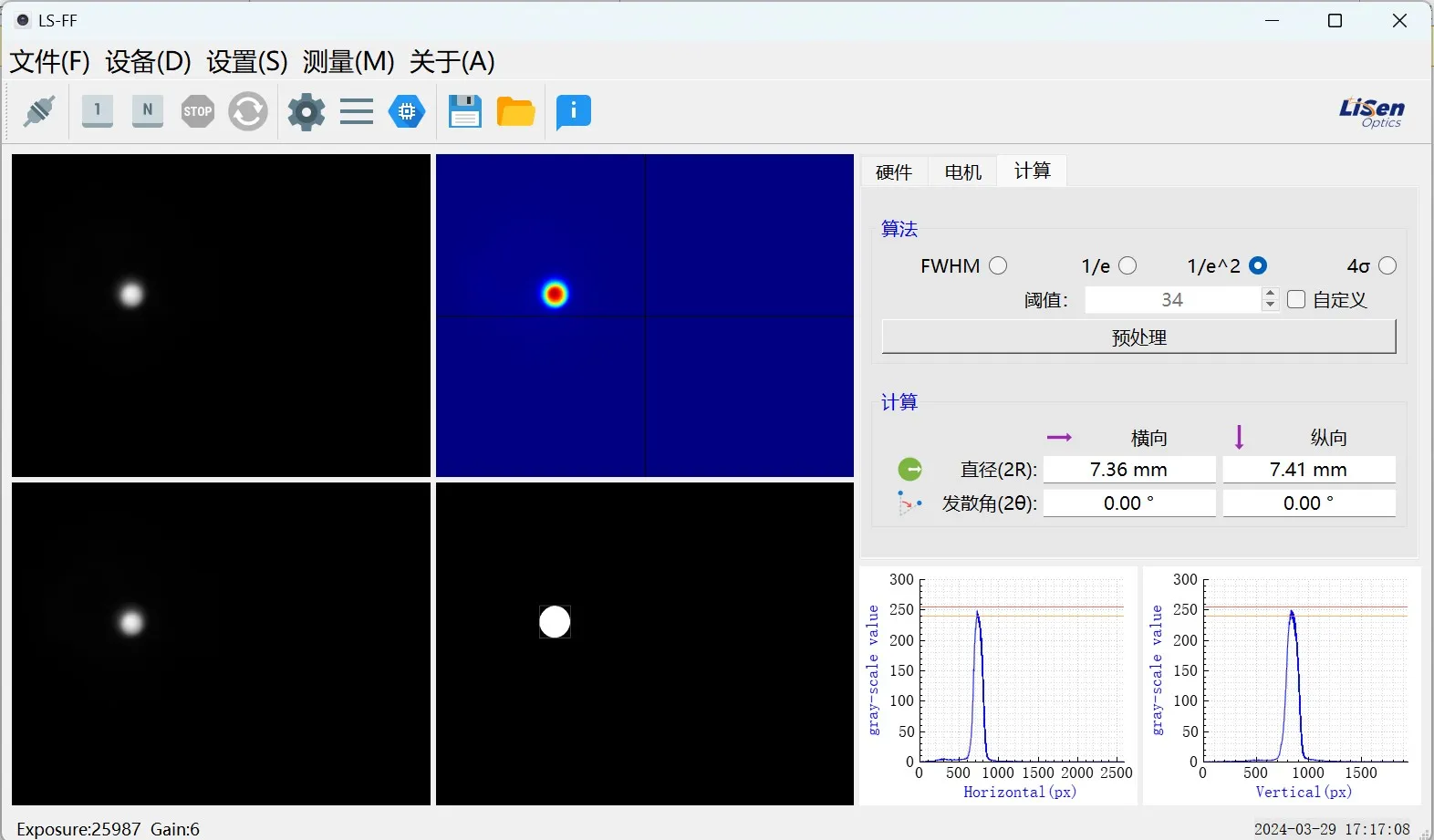

Beam far-field divergence angle, DIP (spot center defect) |
|
Module and Platform |
Far-field optical path module and sample fixture platform |
LS-VCS-FF Dimension Drawing（Unit: mm）
Technical Indicators
|
Model |
LS-VCS-FF |
|
Spectral Range |
400-1000nm / 900-1700nm |
|
Pixel Resolution |
2592×1944 / 1280×1024 |
|
Target Size |
1/2.8" (5.184mm x 3.888mm) / 1/2" (6.4mm x 5.12mm) |
|
Pixel Size |
2.0 μm / 5.0 μm |
|
Perpendicularity |
<1° |
|
Positioning Accuracy |
0.01mm |
|
Software Testing Functions |
Beam far-field divergence angle, DIP (spot center defect) |
|
Module and Platform |
Far-field optical path module and sample fixture platform |

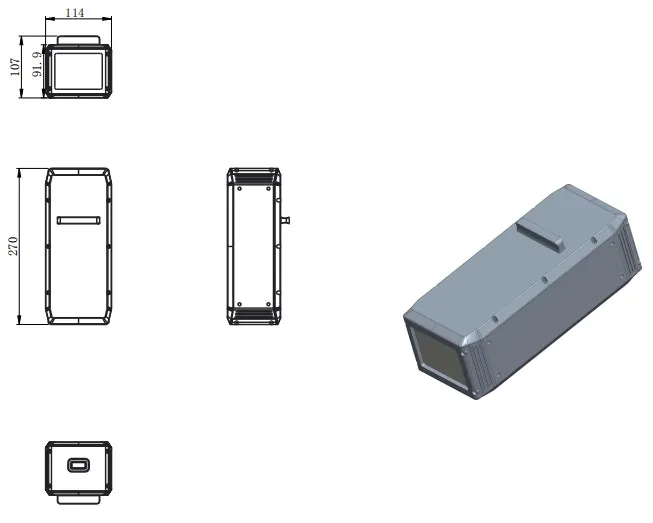

LS-VCS-FF Dimension Drawing（Unit: mm）
