The iLight-HgAr Mercury-Argon Wavelength Standard Light Source is specifically designed for the wavelength calibration of spectrometers, monochromators, and other optical equipment. This light source combines mercury and argon lamps to cover a broad spectral wavelength range from 253.6 nm to 1700 nm. It includes TTL shutter control for precise operation and is equipped with professional optical lenses to efficiently couple light into a fiber optic, enhancing the output light intensity. This setup ensures accurate and reliable calibration, making it an essential tool for maintaining the precision of optical measurements.
The iLight-HgAr Mercury-Argon Wavelength Standard Light Source is specifically designed for the wavelength calibration of spectrometers, monochromators, and other optical equipment. This light source combines mercury and argon lamps to cover a broad spectral wavelength range from 253.6 nm to 1700 nm. It includes TTL shutter control for precise operation and is equipped with professional optical lenses to efficiently couple light into a fiber optic, enhancing the output light intensity. This setup ensures accurate and reliable calibration, making it an essential tool for maintaining the precision of optical measurements.
![]() |
![]() |

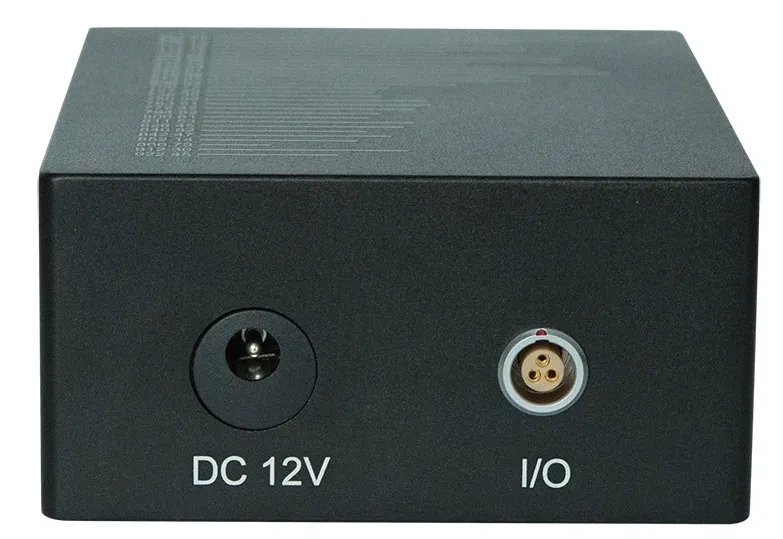

iLight-HgAr
![]() |
![]() |
iLight-HgAr

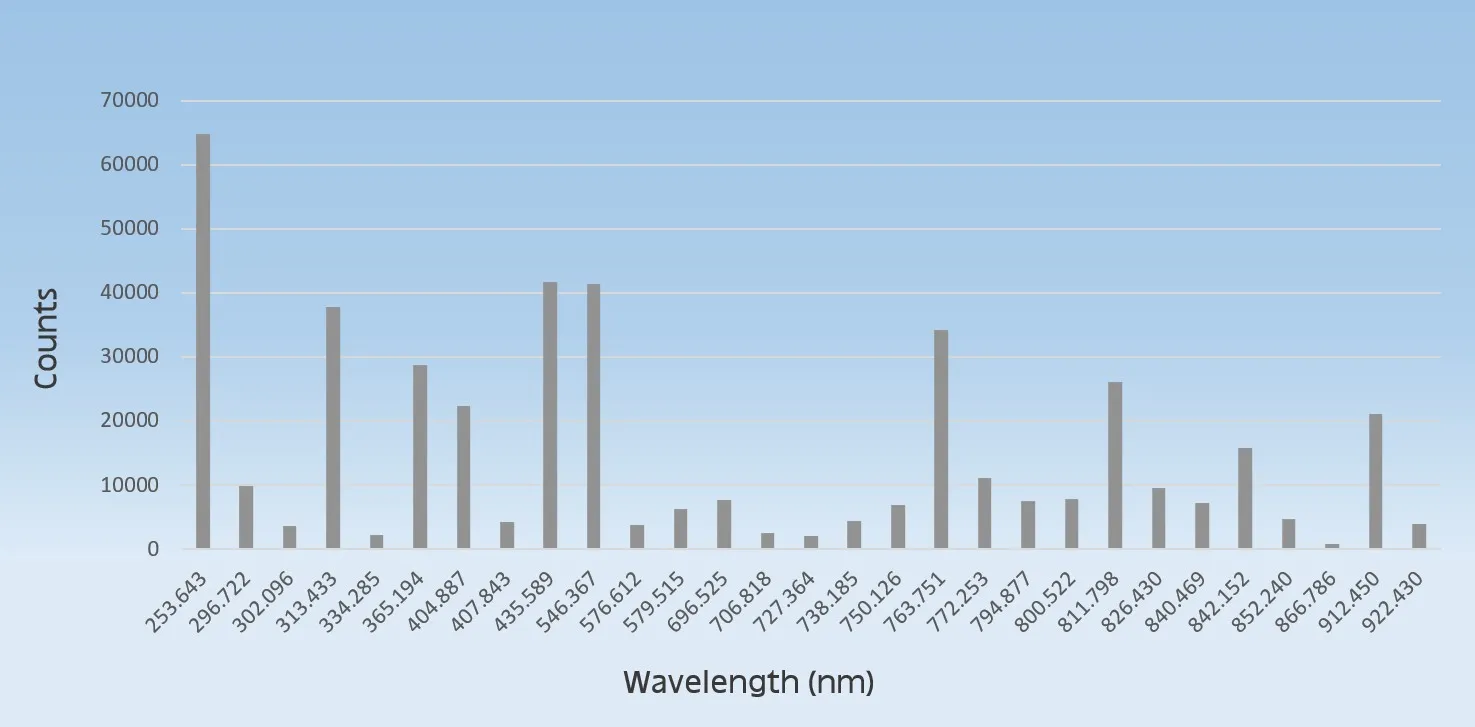

The Spectrum of Light Source
The Spectrum of Light Source
Main Technical Indicators
Model |
iLight-HgAr |
Wavelength Range |
253.6-922.5 nm |
Power Stability |
0.10% |
Warm-up Time |
1 minute |
Fiber Optic Interface |
SMA905 |
Bulb Life |
5,000 hours |
Bulb Power |
10W |
Trigger/Shutter Input Signal |
TTL/≤3Hz |
IO Control Interface |
Aviation M9-3P |
Operating Temperature |
5°C - 45°C |
Power Requirements |
DC 12V / 200mA |
Dimensions/Weight |
80×114.7×40 mm / 0.5 kg |
Main Technical Indicators
Model |
iLight-HgAr |
Wavelength Range |
253.6-922.5 nm |
Power Stability |
0.10% |
Warm-up Time |
1 minute |
Fiber Optic Interface |
SMA905 |
Bulb Life |
5,000 hours |
Bulb Power |
10W |
Trigger/Shutter Input Signal |
TTL/≤3Hz |
IO Control Interface |
Aviation M9-3P |
Operating Temperature |
5°C - 45°C |
Power Requirements |
DC 12V / 200mA |
Dimensions/Weight |
80×114.7×40 mm / 0.5 kg |
