Laser Spectral-Power Integrating Sphere Test Station-Lisen Optics

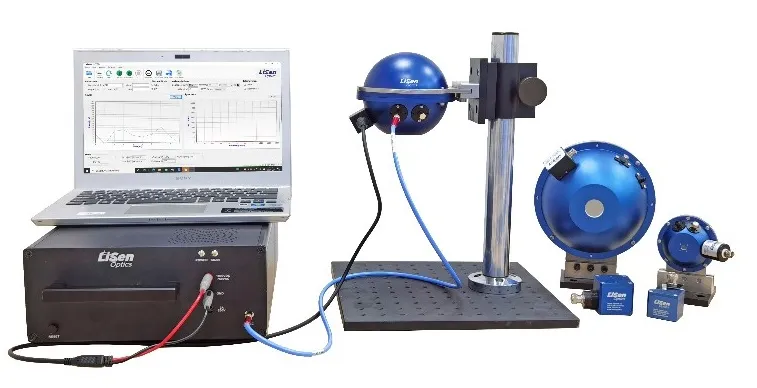

The iSpec-VCS-IND Spectral Power Integrating Sphere Tester has been developed by LiSen Optics specifically for VCSELs and LDs which do not have high-frequency requirements and do not necessitate complex LIV, PCE functionality testing and analysis. This system is highly cost-effective, making it especially suitable for industrial users and automation integration manufacturers.

Main Technical Features

● Supports online integrated measurement and is available for secondary development by machine integrators.

● Measures key parameters such as spectral peak power, average power, peak wavelength, FWHM (Full Width at Half Maximum), and duty cycle.

● Frequency settings available for synchronous measurements triggered by both PD (Photodiode) and the spectrometer.

● Capable of measuring continuous and pulsed laser power, as well as spectral wavelength.

● Calibrated as per NIST standards. Based on the divergence angle and power of the DUT (Device Under Test), one can choose from different sizes of the power integrating sphere, ranging from 1 inch to 8 inches.

● Optional temperature control module available, with a temperature range of 5℃ to 95℃.

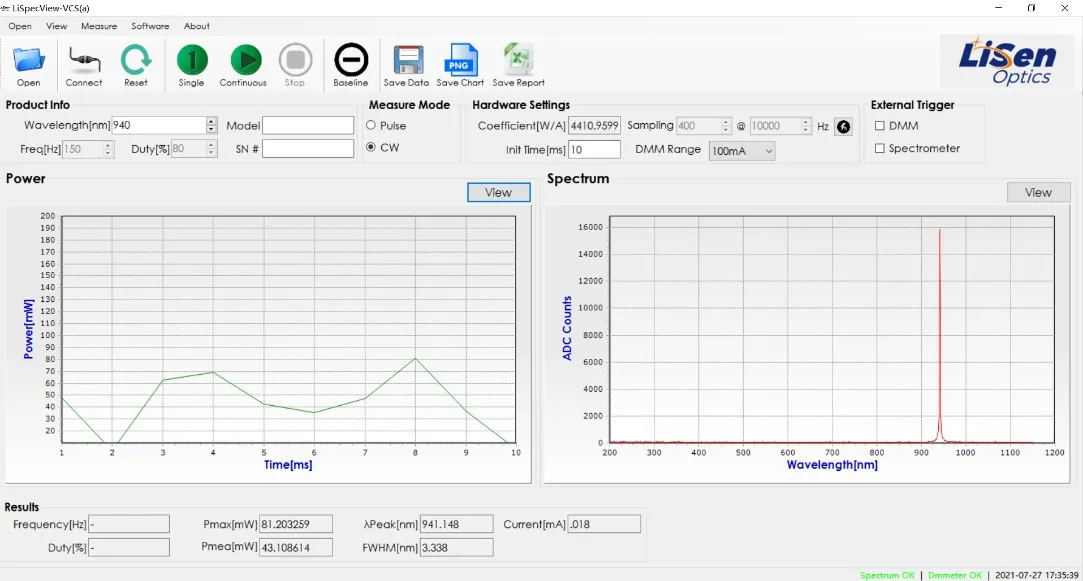

Laser Spectral Power Integrating Sphere Tester Software UI

The industrial-grade iSpec-VCS-IND LIV Spectral Power Integrating Tester is primarily aimed at the LIV optoelectronic characteristics measurement of VCESL/LD and modules. Depending on the divergence angle and output power requirements of the VCESL/LD, one can select different specifications of integrating spheres, available in diameters of: 1 inch, 2 inches, 4 inches, 3 inches, 6 inches, and 8 inches. Given that the DUT might generate a significant amount of heat, which can significantly impact its output power and spectral wavelength, temperature control becomes essential. Thus, a temperature control module is available with a temperature range of 5℃ to +95℃.

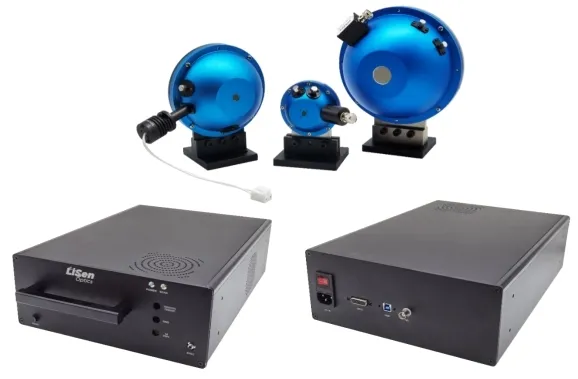

iSpec-VCS-IND

Main Technical Features

● Supports online integrated measurement and is available for secondary development by machine integrators.

● Measures key parameters such as spectral peak power, average power, peak wavelength, FWHM (Full Width at Half Maximum), and duty cycle.

● Frequency settings available for synchronous measurements triggered by both PD (Photodiode) and the spectrometer.

● Capable of measuring continuous and pulsed laser power, as well as spectral wavelength.

● Calibrated as per NIST standards. Based on the divergence angle and power of the DUT (Device Under Test), one can choose from different sizes of the power integrating sphere, ranging from 1 inch to 8 inches.

● Optional temperature control module available, with a temperature range of 5℃ to 95℃.

Laser Spectral Power Integrating Sphere Tester Software UI

The industrial-grade iSpec-VCS-IND LIV Spectral Power Integrating Tester is primarily aimed at the LIV optoelectronic characteristics measurement of VCESL/LD and modules. Depending on the divergence angle and output power requirements of the VCESL/LD, one can select different specifications of integrating spheres, available in diameters of: 1 inch, 2 inches, 4 inches, 3 inches, 6 inches, and 8 inches. Given that the DUT might generate a significant amount of heat, which can significantly impact its output power and spectral wavelength, temperature control becomes essential. Thus, a temperature control module is available with a temperature range of 5℃ to +95℃.

iSpec-VCS-IND

Technical Indicators

Model	iSpec-VCS-XX-IND
Power Measurement Range	≤100W (Options available for a larger range)
Spectrometer Spectral Range	200-1700nm (Optional ranges available)
Spectrometer Resolution (FWHM)	0.1-0.3nm (Specifically for 800-1100nm range)
Power Spectral Range	350-1100nm and 800-1700nm
Power Accuracy	≤1% at 940nm wavelength
Spectral Wavelength Accuracy	±0.1nm (Specifically for 800-1100nm range)
Integrating Sphere Diameter Options	1 inch, 2 inches, 4 inches, 6 inches, 8 inches
Maximum Sampling Rate	1MS/s
Current Range	10pA to 20mA
Minimum Resolution	100pA
Current Accuracy	±0.05%
AD Resolution	16 bits
Temperature Control Range	5℃ to 95℃ (Optional)
Temperature Control Accuracy	±1℃
Control Interface	USB/GPIO/TRI
Dimensions & Weight	440mm x 272mm x 124mm, weighing 10.3kg

Technical Indicators

Model	iSpec-VCS-XX-IND
Power Measurement Range	≤100W (Options available for a larger range)
Spectrometer Spectral Range	200-1700nm (Optional ranges available)
Spectrometer Resolution (FWHM)	0.1-0.3nm (Specifically for 800-1100nm range)
Power Spectral Range	350-1100nm and 800-1700nm
Power Accuracy	≤1% at 940nm wavelength
Spectral Wavelength Accuracy	±0.1nm (Specifically for 800-1100nm range)
Integrating Sphere Diameter Options	1 inch, 2 inches, 4 inches, 6 inches, 8 inches
Maximum Sampling Rate	1MS/s
Current Range	10pA to 20mA
Minimum Resolution	100pA
Current Accuracy	±0.05%
AD Resolution	16 bits
Temperature Control Range	5℃ to 95℃ (Optional)
Temperature Control Accuracy	±1℃
Control Interface	USB/GPIO/TRI
Dimensions & Weight	440mm x 272mm x 124mm, weighing 10.3kg

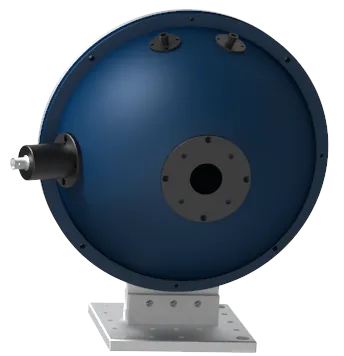

iSphere-XX-PWR Laser Power Integrating Sphere (VIS Low Power)

Model	S1-PWR	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR
Diameter	1 inch	2 inch	3.3 inch	4 inch	5 inch	6 inch
Entry Diameter	0.3 inch	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	Si
Spectral Range	350 – 1100nm
Laser Power Loss Threshold	≤0.5W/cm2
Spectral Peak	975nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 975nm	12.5×10-4	5.7×10-4	2.8×10-4	1.5×10-4	10.8×10-5	6.4×10-5
Power Range	1.8nW	0.15μW	0.3μW	0.7μW	5μW	2μW
S1-PWR: 1.8nW - 300	-300mW	-1.5W	-3W	-5W	-6.5W	-16W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

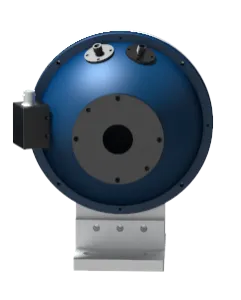

iSphere-XX-PWR Laser Power Integrating Sphere (VIS High Power)

Model	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR	J1-PWR
Diameter	2 inch	3.3 inch	4.0 inch	5 inch	6 inch	8 inch
Entry Diameter	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	Si
Spectral Range	350 – 1100nm
Laser Power Loss Threshold	≤5W/cm2
Spectral Peak	975nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 975nm	6.2×10-5	9.7×10-5	3.6×10-5	15.8×10-6	20.5×10-6	38.3×10-6
Power Range	10μW-3W	20μW-10W	30μW-15W	50μW-28W	200μW-100W	500μW-200W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

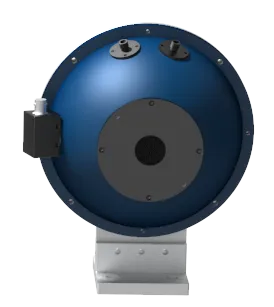

iSphere-XX-PWR Laser Power Integrating Sphere (VIS High Power)

Model	S1-PWR	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR
Diameter	1 inch	2 inch	3.3 inch	4 inch	5 inch	6 inch
Entry Diameter	0.3 inch	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	InGaAs
Spectral Range	800 – 1700nm
Laser Power Loss Threshold	≤0.5W/cm²
Spectral Peak	1300nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 1300nm	3.4×10^-4	9.4×10^-5	5.6×10^-5	2.7×10^-5	1.1×10^-5	3.8×10^-6
Power Range	5nW	0.1μW	0.3μW	0.5μW	5μW	3μW
Power Range	-500mW	-2.5W	-4.5W	-6W	-10W	-20W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

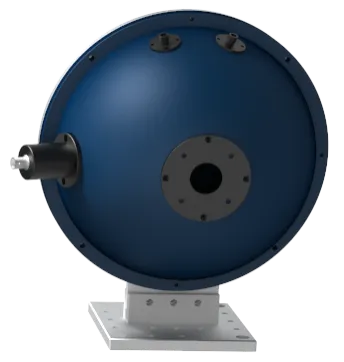

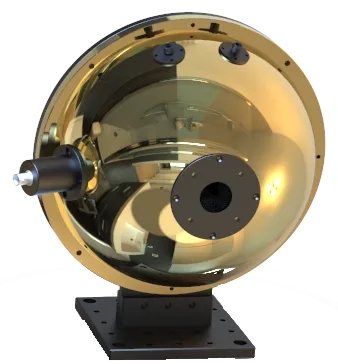

iSphere-XX-PWR-NIR Laser Power Integrating Sphere (NIR High Power)

Model	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR	J1-PWR
Diameter	2 inch	3.3 inch	4 inch	5 inch	6 inch	8 inch
Entry Diameter	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%Diffused gold
Detector	InGaAs
Spectral Range	800 – 1700nm
Laser Power Loss Threshold	1600nm
Spectral Peak	18.9 J/cm² @ 10.6 μm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 1600nm	1.4×10^-5	9.8×10^-5	2.4×10^-5	1.1×10^-5	7.9×10^-6	33.5×10^-6
Power Range	7μW	20μW	29μW	50μW	69μW	200μW
Power Range	-70W	-100W	-290W	-350W	-600W	-1000W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	600℃

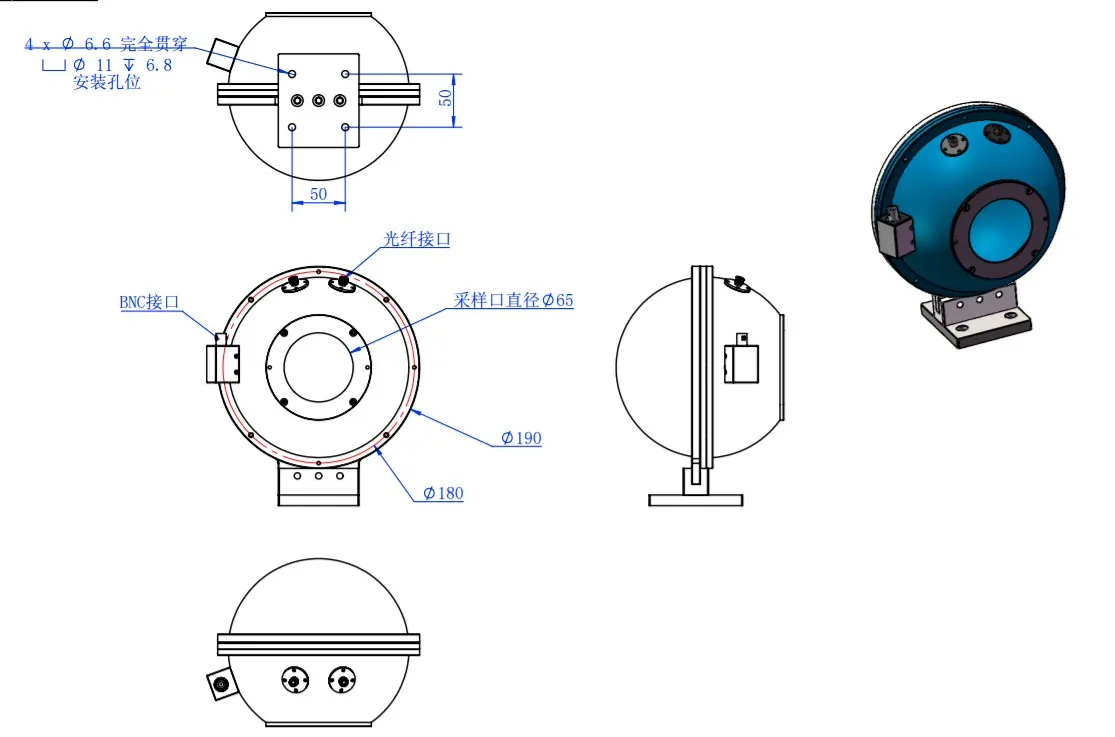

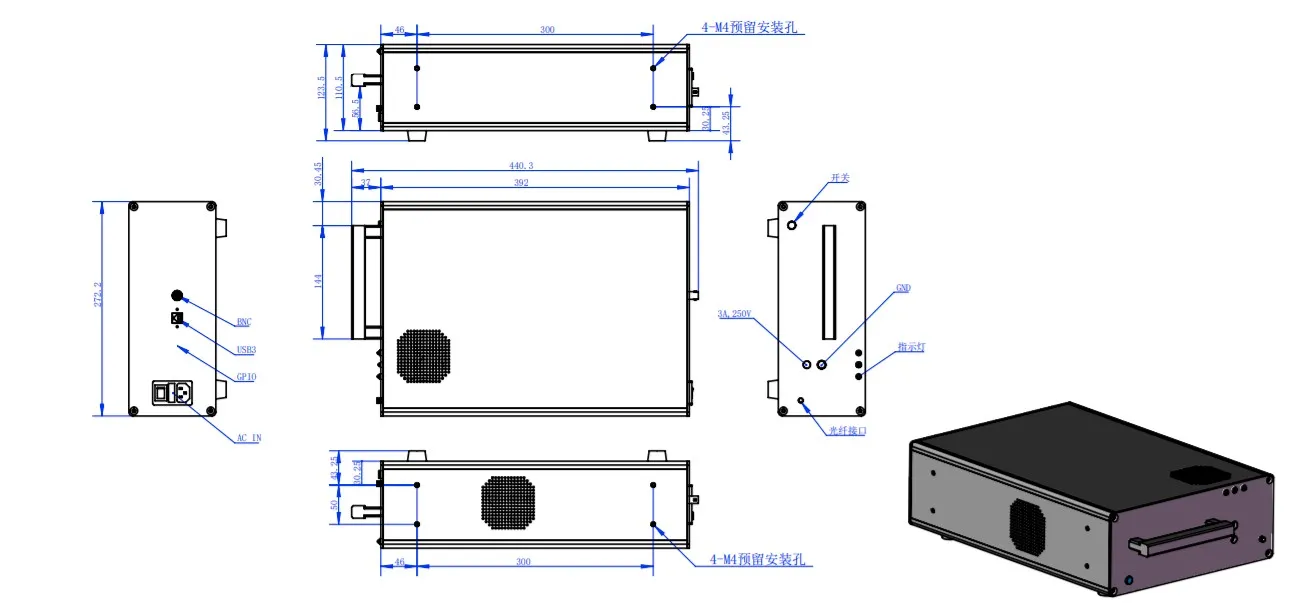

Dimensional Drawing（unit：mm）

iSphere-XX-PWR Laser Power Integrating Sphere (VIS Low Power)

Model	S1-PWR	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR
Diameter	1 inch	2 inch	3.3 inch	4 inch	5 inch	6 inch
Entry Diameter	0.3 inch	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	Si
Spectral Range	350 – 1100nm
Laser Power Loss Threshold	≤0.5W/cm2
Spectral Peak	975nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 975nm	12.5×10-4	5.7×10-4	2.8×10-4	1.5×10-4	10.8×10-5	6.4×10-5
Power Range	1.8nW	0.15μW	0.3μW	0.7μW	5μW	2μW
S1-PWR: 1.8nW - 300	-300mW	-1.5W	-3W	-5W	-6.5W	-16W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

iSphere-XX-PWR Laser Power Integrating Sphere (VIS High Power)

Model	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR	J1-PWR
Diameter	2 inch	3.3 inch	4.0 inch	5 inch	6 inch	8 inch
Entry Diameter	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	Si
Spectral Range	350 – 1100nm
Laser Power Loss Threshold	≤5W/cm2
Spectral Peak	975nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 975nm	6.2×10-5	9.7×10-5	3.6×10-5	15.8×10-6	20.5×10-6	38.3×10-6
Power Range	10μW-3W	20μW-10W	30μW-15W	50μW-28W	200μW-100W	500μW-200W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

iSphere-XX-PWR Laser Power Integrating Sphere (VIS High Power)

Model	S1-PWR	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR
Diameter	1 inch	2 inch	3.3 inch	4 inch	5 inch	6 inch
Entry Diameter	0.3 inch	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%
Detector	InGaAs
Spectral Range	800 – 1700nm
Laser Power Loss Threshold	≤0.5W/cm²
Spectral Peak	1300nm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 1300nm	3.4×10^-4	9.4×10^-5	5.6×10^-5	2.7×10^-5	1.1×10^-5	3.8×10^-6
Power Range	5nW	0.1μW	0.3μW	0.5μW	5μW	3μW
Power Range	-500mW	-2.5W	-4.5W	-6W	-10W	-20W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	200°C

iSphere-XX-PWR-NIR Laser Power Integrating Sphere (NIR High Power)

Model	D1-PWR	F1-PWR	A1-PWR	G1-PWR	B1-PWR	J1-PWR
Diameter	2 inch	3.3 inch	4 inch	5 inch	6 inch	8 inch
Entry Diameter	0.5 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch	1.0 inch
Reflectivity	≥98%Diffused gold
Detector	InGaAs
Spectral Range	800 – 1700nm
Laser Power Loss Threshold	1600nm
Spectral Peak	18.9 J/cm² @ 10.6 μm
Power Accuracy	≤±5%（at specific wavelengths, it can be better than 1%）
Spectral Response at 1600nm	1.4×10^-5	9.8×10^-5	2.4×10^-5	1.1×10^-5	7.9×10^-6	33.5×10^-6
Power Range	7μW	20μW	29μW	50μW	69μW	200μW
Power Range	-70W	-100W	-290W	-350W	-600W	-1000W
Sampling Frequency	10Hz-5000Hz
Interface	BNC
Heat Limitation temperature	600℃

Dimensional Drawing（unit：mm）
