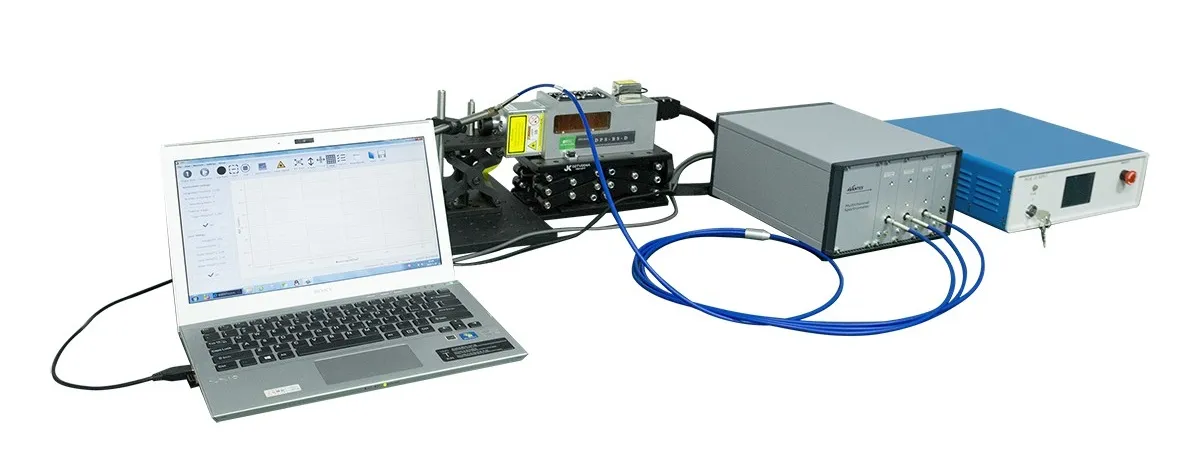

The iSpec-LIBS400 Split-Type LIBS (Laser Induced Breakdown Spectroscopy) System is a versatile and sophisticated assembly tailored for scientific research, optical application experiments, and optical application centers. This system's design is particularly flexible due to its split-type configuration, allowing users to conveniently choose and configure various lasers and spectrometers to suit specific needs.

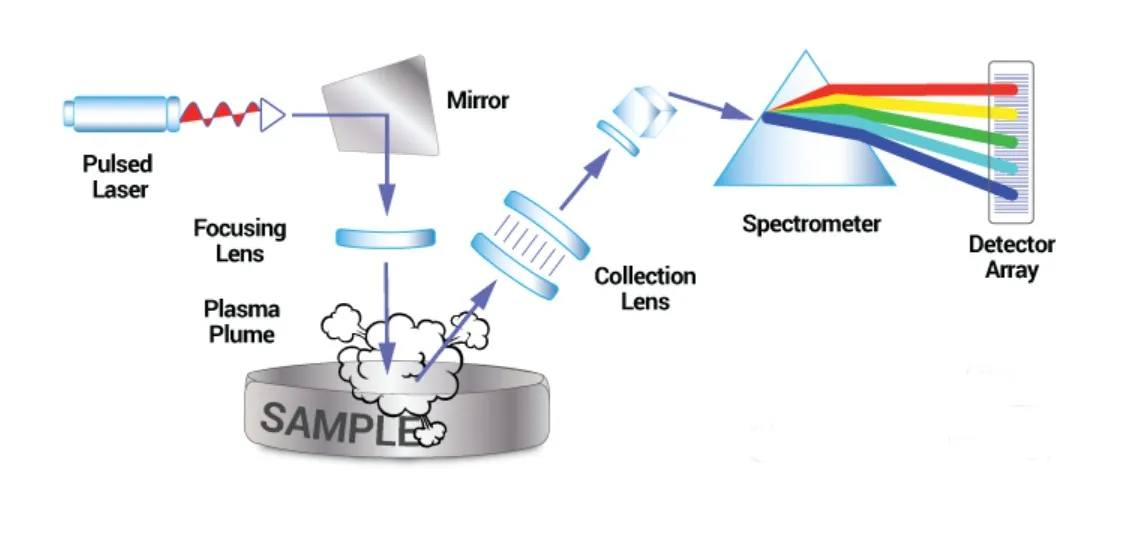

LIBS Application’s Principle

Main Application

● Coal Quality Analysis and Combustion Products Analysis

● Online Component Analysis in Metallurgical Industry

● Mineral Exploration: Online Ore Quality Analysis

● Soil Heavy Metal Analysis, Biomaterials, Aerosols, Nanoparticles

● Nuclear Materials, Waste, Petroleum Products

● Building Materials, Archaeology, Casting, Gold and Jewelry Testing

The detection limits of LIBS largely depend on the type of sample being analyzed, the specific elements being measured, and the configuration of the laser/spectrometer in the instrument. Typically, LIBS can achieve detection limits ranging from a few parts per million (ppm) to percentage levels. For most elements in common applications, the detection limit can be between 10 ppm to 100 ppm. In quantitative analysis, the relative standard deviation of measurements obtained through LIBS can be within 3-5% for most materials, and even less than 1% for homogeneous materials.

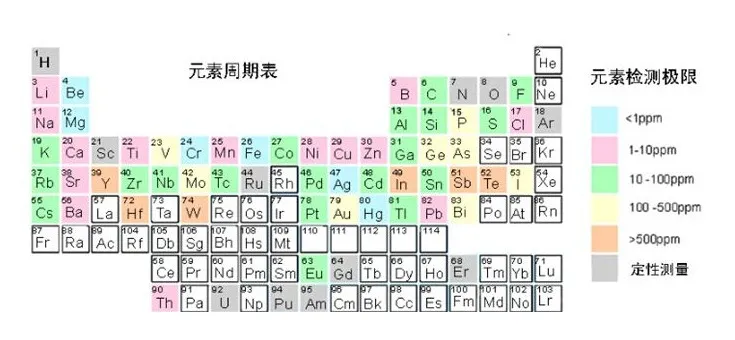

Typical Detection Limits with LIBS

● Elements like Li, Be, B, Na, Mg, Al, K, Ca: >10 ppm (0.001%)

● Elements like Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Mo: >100 ppm (0.01%)

● Elements like C, N, O, P, Si: >200 ppm (0.02%)

● Elements like F, Cl, Br, S: >0.5%

Product Features and Advantages

● Wide Range of Element Analysis: Capable of analyzing light elements (like C, H, O, N, Li, Be, B) and heavy elements, including almost all metals and non-metals.

● Integrated LIBS System: Includes a laser, spectrometer, LIBS optical collection system, a 3D sample stage with linked control system, and a dual camera imaging system.

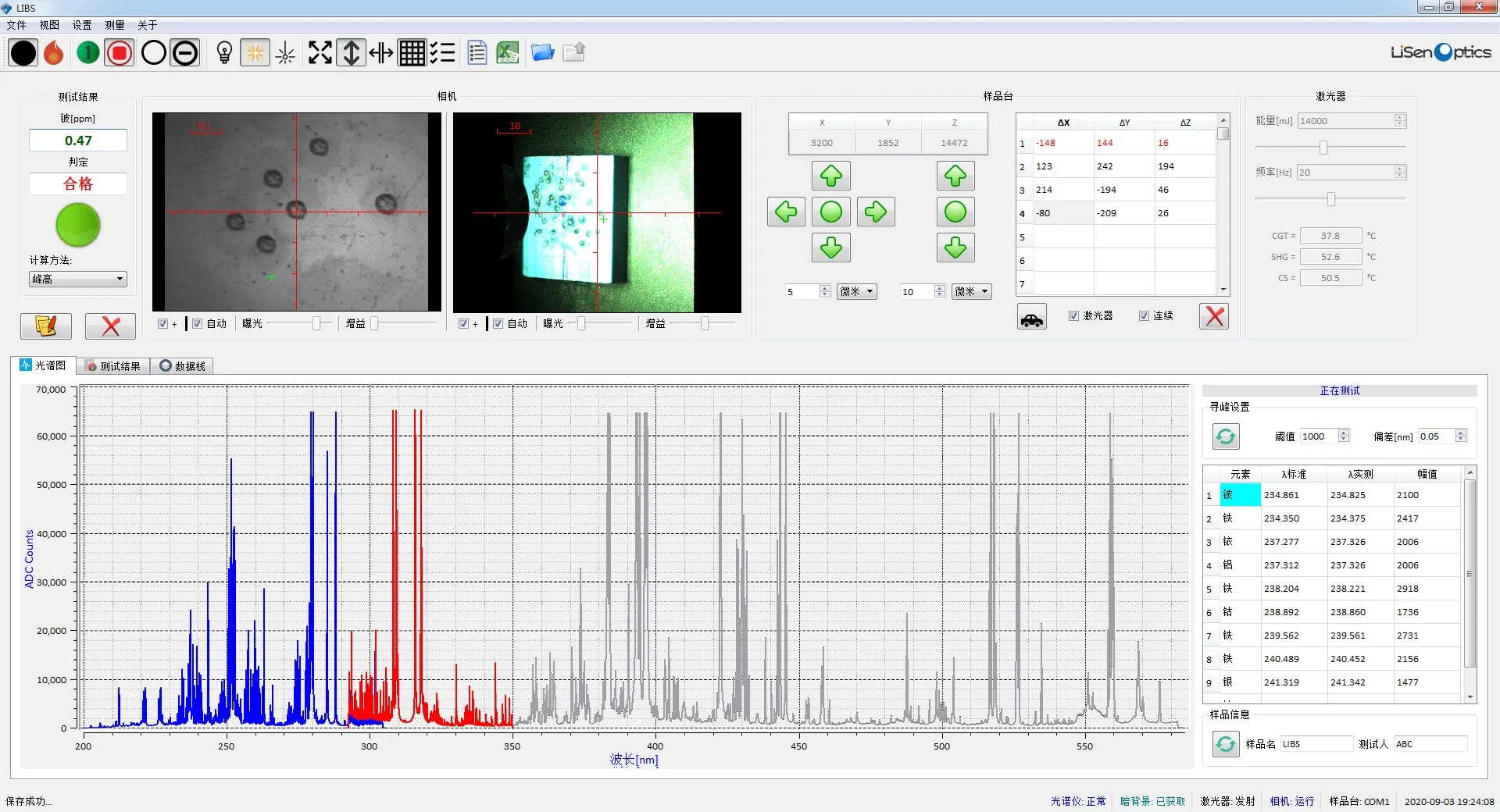

● Intelligent Spectral Collection and Analysis Software: For peak matching, online element concentration prediction, and quantitative analysis modeling (peak height method, peak area method, etc.).

● Fast Analysis Time: A few seconds to minutes.

● Minimal Sample Preparation: Analyzes solid samples, even powders (or binders or adhesives).

● Eco-Friendly and Safe: No reaction reagents required.

● Microscopic to Macroscopic Analysis: Directed and flexible point analysis.

● Qualitative and Quantitative Analysis: Sample classification and elemental concentration.

● Multiple Laser and Probe Options: To suit different needs.

● Detection Limits: Most elements have detection limits ranging from 10 ppm to several dozen ppm.

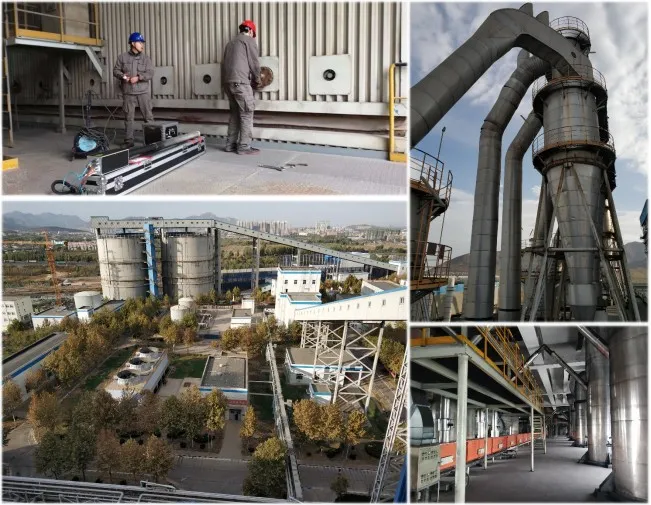

Filed Working



Main Technical Indicators
